FRONT PROPELLER SHAFT ASSEMBLY (for 4WD): Components

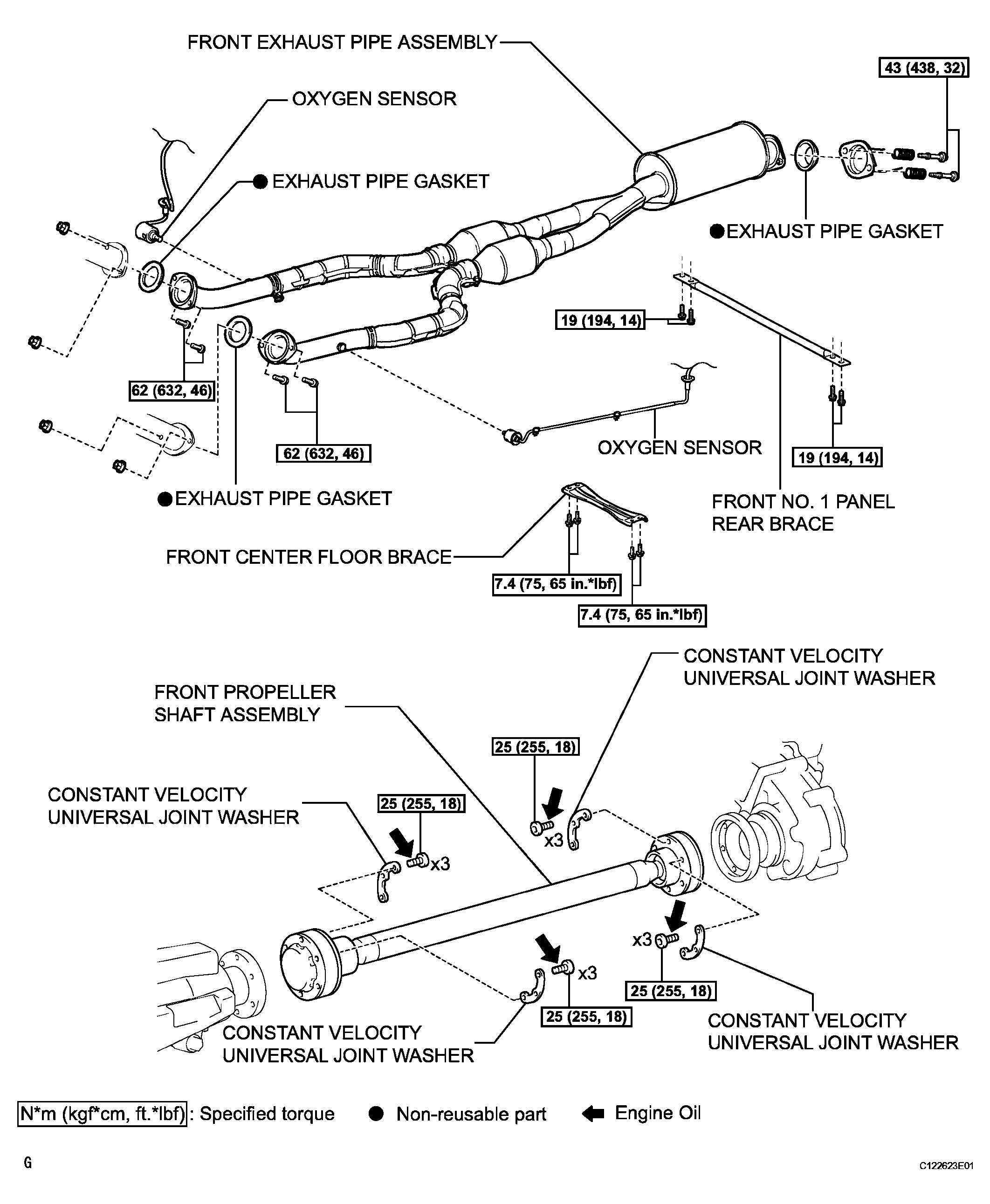

Fig 1: Front Propeller Shaft Assembly (For 4WD) Replacement Components With Torque Specifications

G04046880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
