FRONT SEAT ASSEMBLY (for Power Seat): Reassembly

CAUTION: Wear protective gloves. Sharp areas on the seat adjuster may injure your hands.

HINT:

Use the same procedures for the LH side and RH side.
A bolt without a torque specification is shown in the standard bolt chart. (See SPECIFIED TORQUE FOR STANDARD BOLTS )

INSTALL FRONT SEAT WIRE
INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)
INSTALL SEAT POSITION SENSOR (for Driver Side)
1. Install the seat position sensor, but do not fully tighten it yet.
2. Install a 1 mm (0.04 in.) feeler gauge between the slide rail and sensor.
  HINT:

  Make sure that the clearance between the seat position sensor and the slide rail is within 0.6 to 1.4 mm (0.023 to 0.055 in.).

  Fig 1: Identifying Seat Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  CAUTION:
  - If the seat position sensor has been dropped, or there are any cracks or other defects in the case, bracket or connector, replace the seat position sensor with a new one.
  - When installing the seat position sensor, make sure that the SRS wiring does not interfere with other parts and is not pinched between other parts.
3. Hold down the top of the sensor and tighten the sensor using a T30 "torx" socket.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
4. Remove the feeler gauge.
5. Install the seat slide position sensor protector.
6. Connect the wire harness connector.
INSTALL SEAT CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
INSTALL SEAT CUSHION CLIMATE CONTROL DUCT (w/ Climate Control Seat System)
INSTALL SEATBACK CLIMATE CONTROL BLOWER (w/ Climate Control Seat System)
1. Using a T30 "torx" socket, install the blower cover and blower to the seat frame with the 6 "torx" bolts.
2. Connect the connector and attach the 3 clamps.
Fig 2: Locating Blower Cover And Blower Retaining "Torx" Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY
1. Install the lumbar support adjuster with the 2 screws.
2. Connect the connector.
Fig 3: View Of Lumbar Support Adjuster With 2 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT LOWER SEAT CUSHION SHIELD
INSTALL FRONT LOWER SEAT CUSHION SHIELD LH
INSTALL RECLINING ADJUSTER INSIDE COVER LH
INSTALL SEAT RECLINING ADJUSTER INSIDE COVER LH
INSTALL RECLINING ADJUSTER INSIDE COVER LH
INSTALL LOWER RECLINING ADJUSTER INSIDE COVER RH
INSTALL FRONT SEAT BACK HEATER ASSEMBLY (w/ Seat Heater System)
1. Using a tacker, install the front seatback heater to the end of the seat cover with the 7 tack pins.
Fig 4: Installing Front Seatback Heater To End Of Seat Cover With 7 Tack Pins
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEPARATE TYPE SEATBACK COVER
1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
Fig 5: Installing Seatback Cover To Seatback Pad With New Hog Rings
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/o Seatback Board)
1. Fully cover the airbag with the 2 seatback cover brackets and tighten the nut.

  Fig 6: Locating Nut And Seatback Cover Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
  CAUTION:
  - For vehicles with side airbags, the seatback cover must be securely installed. Otherwise, the side airbags may not deploy properly.
  - Make sure that the strap is not twisted after installing the bracket.
  - Install the bracket securely.

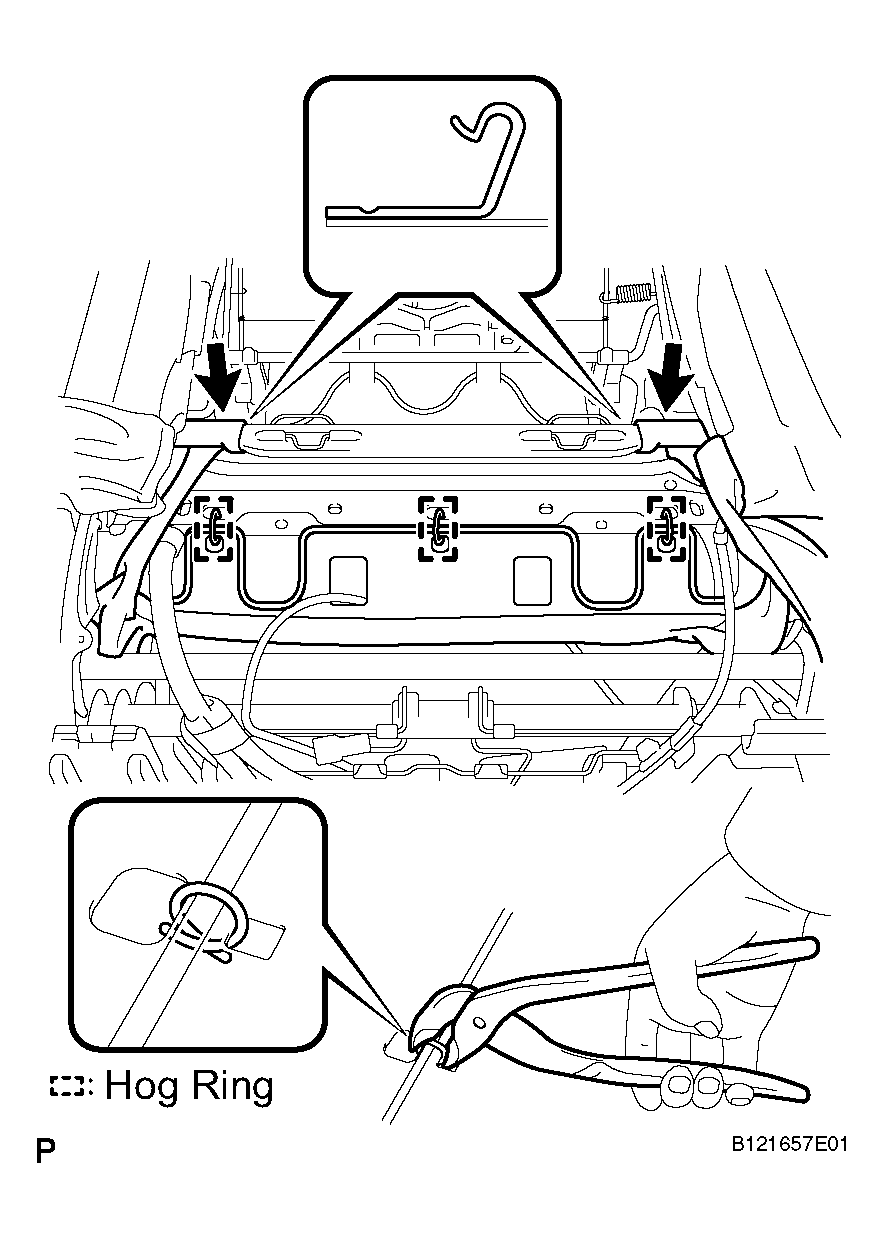

2. Using hog ring pliers, install the seatback cover (with pad) to the seat frame with new hog rings, and attach the hooks.

  Fig 7: Installing Seatback Cover To Seat Frame With New Hog Rings, And Attach Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the seatback cover (with pad) to the seat frame. (w/o Seatback Board)
Fig 8: Installing Seatback Cover To Seat Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEPARATE TYPE SEATBACK ASSEMBLY (w/ Seatback Board)
1. Fully cover the airbag with the 2 seatback cover brackets and tighten the nut.

  Fig 9: Locating Nut And Seatback Cover Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
  CAUTION:
  - For vehicles with side airbags, the seatback cover must be securely installed. Otherwise, the side airbags may not deploy properly.
  - Make sure that the strap is not twisted after installing the bracket.
  - Install the bracket securely.
2. Using hog ring pliers, install the seatback cover (with pad) to the seat frame with new hog rings.

  Fig 10: Installing Seatback Cover To Seat Frame With New Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using hog ring pliers, install the seatback cover (with pad) to the seat frame with new hog rings, and attach the hooks.

  Fig 11: Installing Seatback Cover To Seat Frame With New Hog Rings, And Attach Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the front seatback cover and attach the hooks.
INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY (w/ Seatback Board)
INSTALL FRONT SEAT HEADREST SUPPORT
INSTALL FRONT SEAT HEADREST SUPPORT

Fig 12: Identifying Front Seatback Cover And Attach Hooks
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)
1. Using a tacker, install the front seat cushion heater to the end of the seat cover with the 28 tack pins.
Fig 13: Identifying Tack Pin Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER
1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
INSTALL FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY LH

Fig 14: Identifying Separate Type Front Seat Cushion Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT POWER SEAT SWITCH (w/ Seat Position Memory System)
1. Connect the 2 connectors.
2. Install the switch with the 3 screws.
INSTALL FRONT POWER SEAT SWITCH (w/o Seat Position Memory System)
1. Connect the connector.
2. Install the switch with the 3 screws.
Fig 15: Identifying Switch With 3 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT INNER SEAT CUSHION SHIELD
1. Attach the clip and 2 claws to install the cushion shield inner.
2. Install the screw.
Fig 16: Identifying Cushion Shield Inner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER INNER SEAT TRACK SPACER
1. Install the spacer to the front cushion shield with the 2 screws.
INSTALL LOWER OUTER SEAT TRACK SPACER
1. Install the spacer to the front cushion shield with the 2 screws.
Fig 17: Installing Spacer To Front Cushion Shield With 2 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT POWER SEAT LUMBAR SWITCH
1. Install the switch to the front cushion shield with the 2 screws.
Fig 18: Installing Switch To Front Cushion Shield With 2 Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT INNER NO. 1 FRONT SEAT CUSHION SHIELD
1. Attach the claw and connect the No. 1 cushion shield inner to the front cushion shield.
2. Install the 2 screws.
INSTALL NO. 1 FRONT SEAT CUSHION SHIELD WITH CUSHION SHIELD INNER
1. Connect the connector to the lumbar front power seat switch.

  Fig 19: Connecting Connector To Lumbar Front Power Seat Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the claw and install the cushion shield with cushion shield inner.
3. Install the 5 screws.

  Fig 20: Identifying Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 2 rubber bands of the front seatback board to the seat frame.
5. Connect the connector to the No. 1 interior illumination light.
INSTALL RECLINING POWER SEAT SWITCH KNOB
INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
INSTALL FRONT SEAT INNER BELT ASSEMBLY (See INSTALLATION )

Fig 21: Installing Rubber Bands Of Front Seatback Board To Seat Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
