FRONT SEAT ASSEMBLY (for Manual Seat): Disassembly

  1. REMOVE VERTICAL SEAT ADJUSTER KNOB (for Driver Seat)
    1. Remove the snap ring and the vertical seat adjuster knob.
    Fig 1: Identifying Snap Ring And Vertical Seat Adjuster Knob
    G04051079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE VERTICAL SEAT ADJUSTER KNOB CAP (for Driver Seat)
    1. Using a screwdriver, disengage the 3 claws and remove the vertical seat adjuster knob cap.

      HINT:

      Tape the screwdriver tip before use.

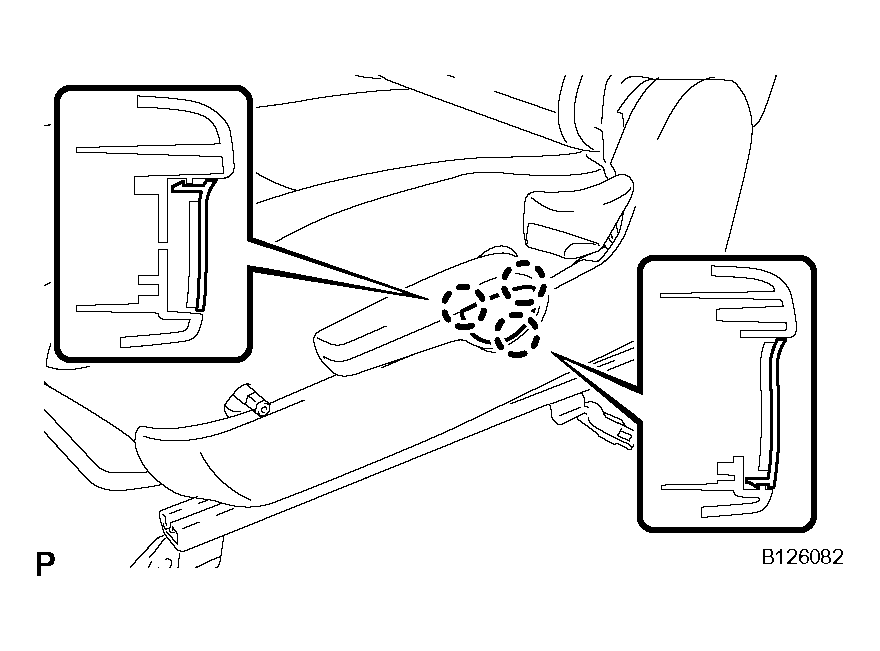

    Fig 2: Identifying Claws And Vertical Seat Adjuster Knob Cap
    G04051080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE VERTICAL ADJUSTING HANDLE (for Driver Seat)
    1. Remove the 2 screws and vertical adjusting handle.
    Fig 3: Identifying Screws And Vertical Adjusting Handle
    G04051081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE RECLINING ADJUSTER RELEASE HANDLE
    1. Lift the reclining adjuster release handle.
    2. Using a screwdriver, disengage the claw and remove the reclining adjuster release handle.

      HINT:

      Tape the screwdriver tip before use.

    Fig 4: Identifying Claw And Reclining Adjuster Release Handle
    G04051082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT SEAT CUSHION SHIELD (for Driver Seat)
    1. Remove the screw.
    2. Disengage the claw and clamp and remove the seat cushion shield.

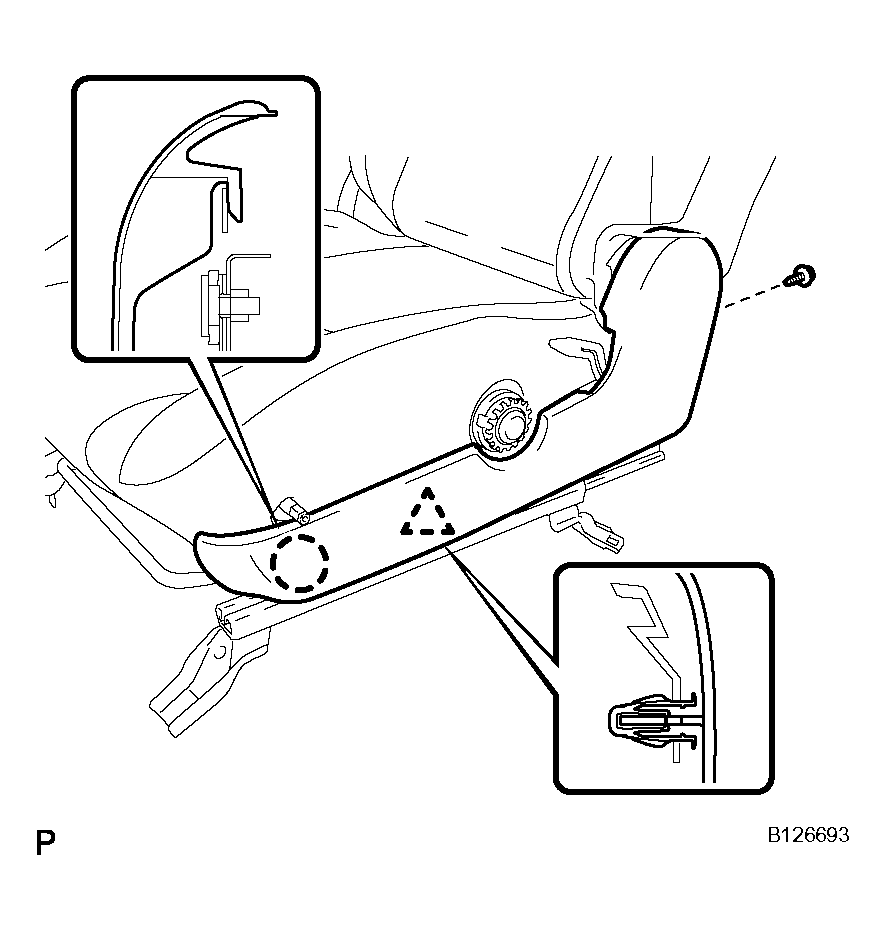

    Fig 5: Identifying Clamp And Seat Cushion Shield
    G04051083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT INNER SEAT BELT ASSEMBLY (See  REMOVAL  )
  7. REMOVE FRONT INNER SEAT CUSHION SHIELD
    1. Remove the screw.
    2. Disengage the 2 claws and clip then remove the front inner seat cushion shield.

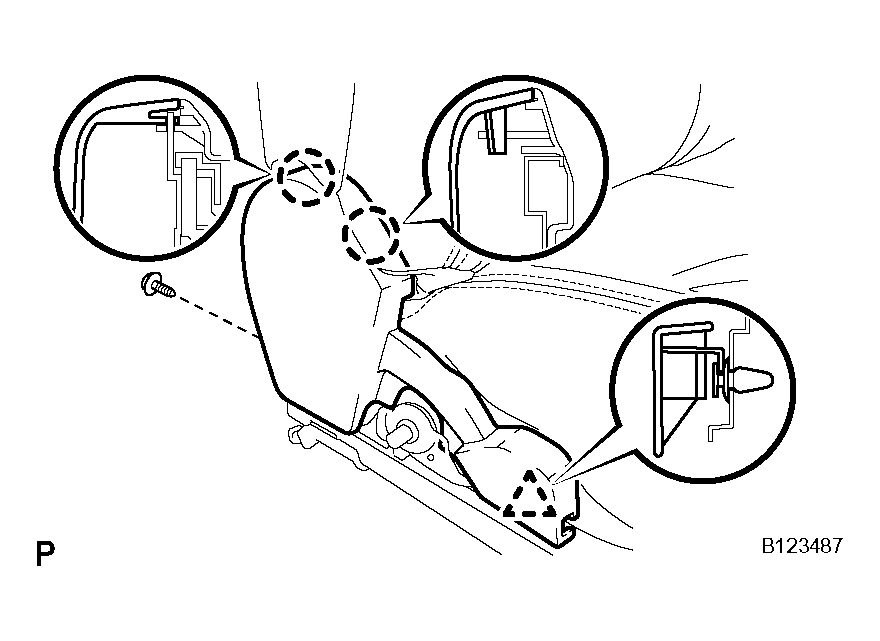

    Fig 6: Identifying Claws And Clip Then Front Inner Seat Cushion Shield
    G04051084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT SEAT CUSHION COVER WITH PAD
    1. Passenger seat only:
      1. Separate the belt warning occupant detection sensor.

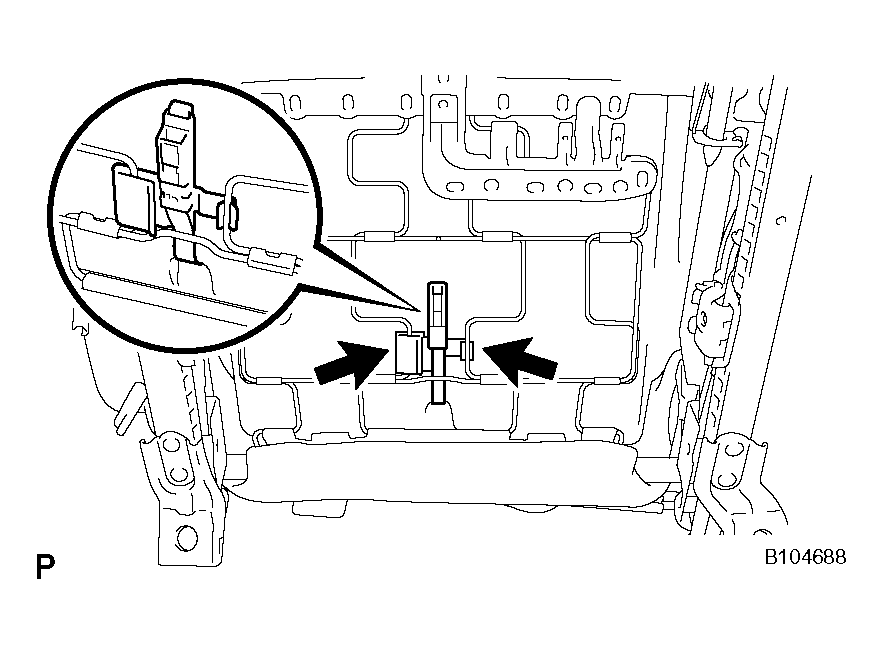

      Fig 7: Separating Belt Warning Occupant Detection Sensor
      G04051085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 hooks.
      Fig 8: Identifying Hooks
      G04051086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the hooks and remove the front seat cushion cover with pad.

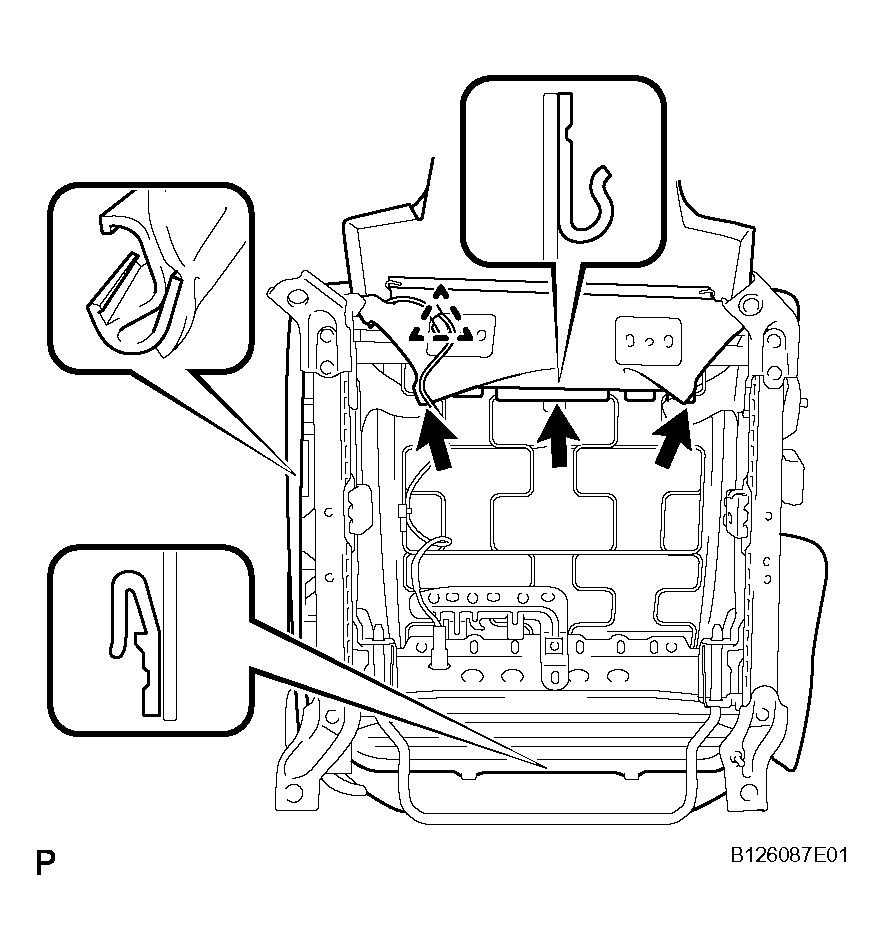

    Fig 9: Identifying Front Seat Cushion Cover With Pad
    G04051087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT SEAT CUSHION COVER
    1. Remove the hog rings.
      Fig 10: Identifying Hog Rings
      G04051088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the hog rings and front seat cushion cover.
    Fig 11: Identifying Hog Rings And Front Seat Cushion Cover
    G04051089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY (w/ Seat Heater System)
    1. Cut off the tack pins that fasten the seat heater, and then remove the front seat cushion heater assembly from the seat cushion cover.
    Fig 12: Identifying Tack Pin Locations
    G04058179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT SEAT HEADREST SUPPORT
    1. Open the 2 zippers and seatback cover.
      Fig 13: Opening Zippers And Seatback Cover
      G04051091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the front seat headrest support.
  12. REMOVE FRONT SEAT HEADREST SUPPORT
    Fig 14: Identifying Claws And Front Seat Headrest Support
    G04051092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE FRONT SEATBACK COVER WITH PAD
    1. Remove the hog rings and disengage the hooks.

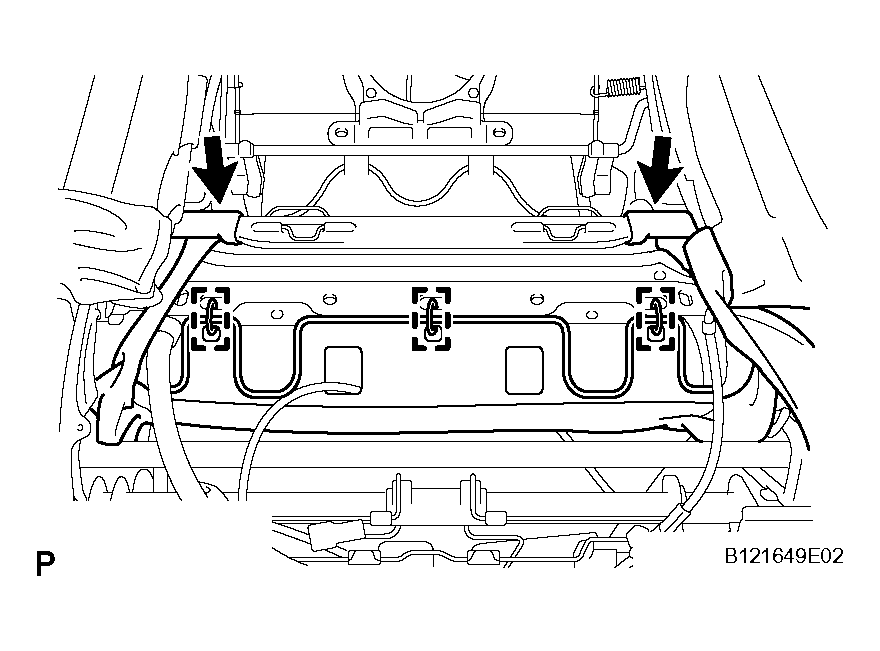

      Fig 15: Identifying Hog Rings And Disengage Hooks
      G04051093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and separate the bracket.
    3. Remove the front seatback cover with pad.

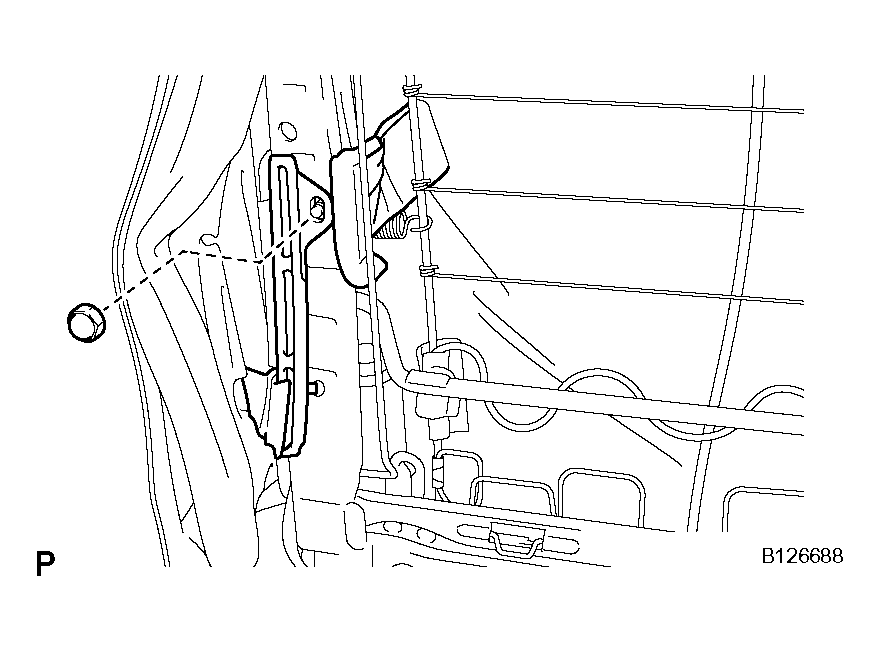

    Fig 16: Identifying Nut And Separate Bracket
    G04051094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE FRONT SEPARATE TYPE SEAT BACK COVER
    1. Remove the hog rings and front separate type seat back cover.
    Fig 17: Identifying Hog Rings And Front Separate Type Seat Back Cover
    G04051095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE FRONT SEAT BACK HEATER ASSEMBLY (w/ Seat Heater System)
    1. Cut off the tack pins that fasten the seat heater, and then remove the front seat cushion heater assembly from the seat cushion cover.
    Fig 18: Identifying Front Seat Cushion Heater Assembly From Seat Cushion Cover
    G04051096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE SEAT RECLINING ADJUSTER INSIDE COVER LH
    1. Remove the screw.
    2. Disengage the claw and remove the seat reclining adjuster inside cover LH.
  17. REMOVE SEAT RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedures for the RH side and LH side.

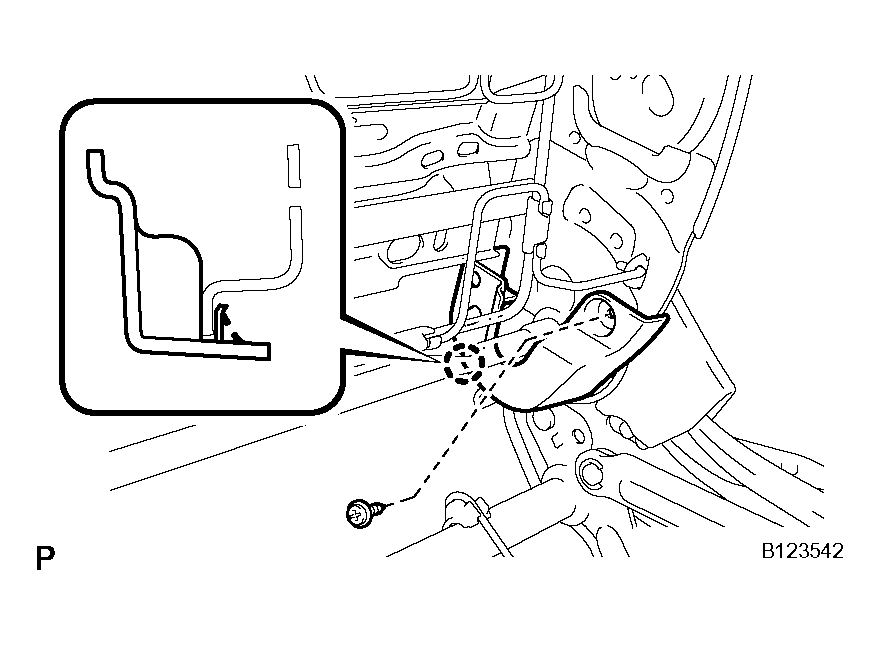

    Fig 19: Identifying Claw And Seat Reclining Adjuster Inside Cover LH
    G04051097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE RECLINING ADJUSTER INSIDE COVER LH
    1. Remove the screw and reclining adjuster inside cover LH.
  19. REMOVE RECLINING ADJUSTER INSIDE COVER RH

    HINT:

    Use the same procedures for the RH side and LH side.

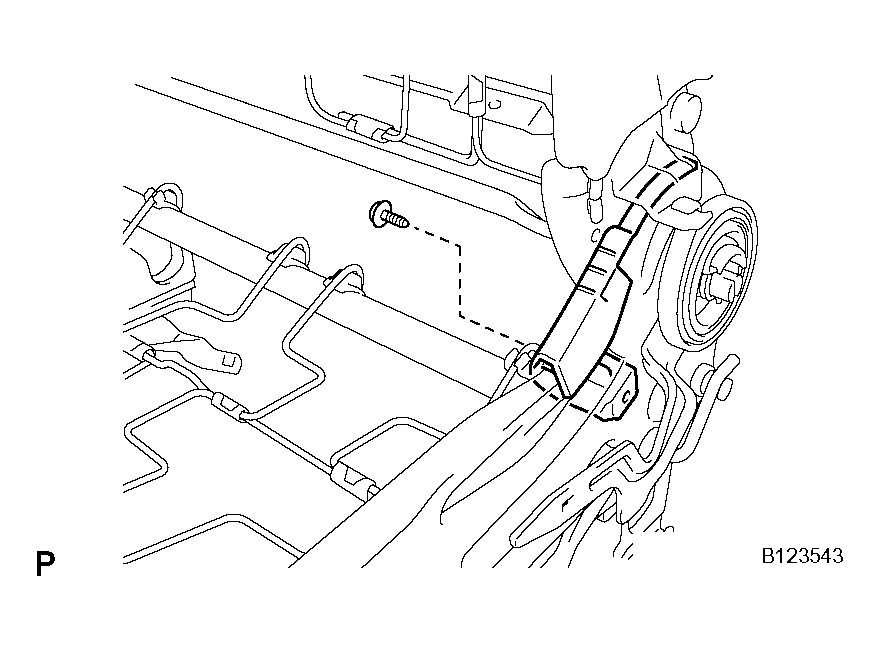

    Fig 20: Identifying Screw And Reclining Adjuster Inside Cover Lh
    G04051098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FRONT LOWER SEAT CUSHION SHIELD LH
    1. Using a screwdriver, disengage the claw and remove the front lower seat cushion shield LH.
  21. REMOVE FRONT LOWER SEAT CUSHION SHIELD RH

    HINT:

    Use the same procedures for the RH side and LH side.

  22. REMOVE SEAT POSITION AIRBAG SENSOR (for Driver Seat)

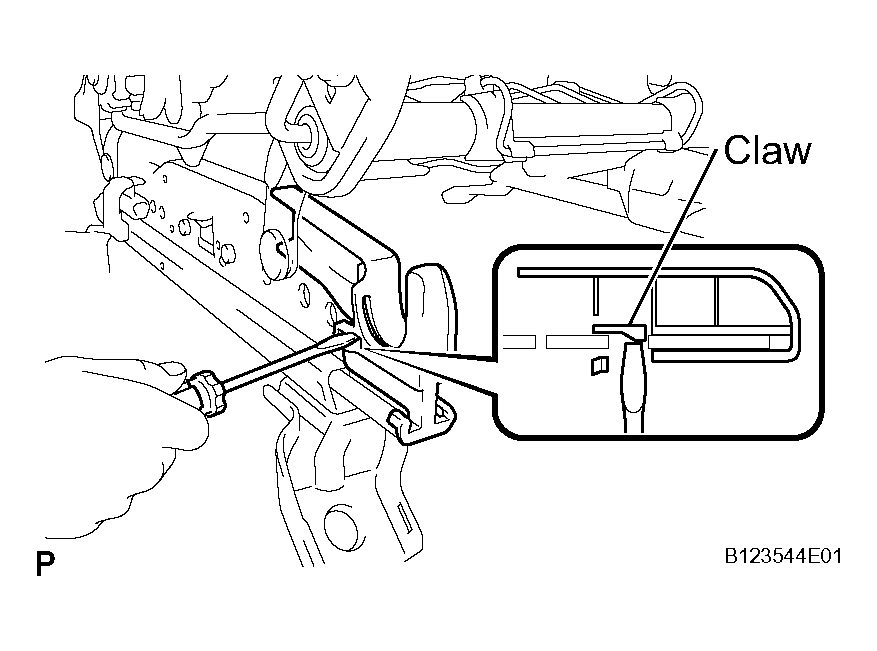

    Fig 21: Identifying Claw And Front Lower Seat Cushion Shield Lh
    G04051099Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE VERTICAL ADJUSTER SPACER (for Driver Seat)
    1. Disengage the clip and remove the vertical adjuster spacer.

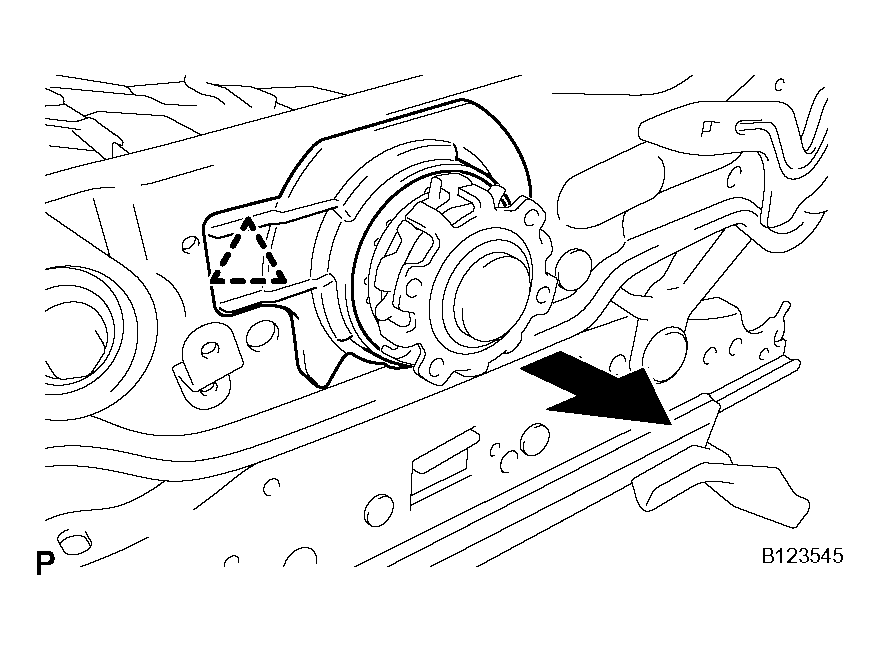

    Fig 22: Identifying Clip And Vertical Adjuster Spacer
    G04051100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE SEAT POSITION SENSOR
    1. Disconnect the connector.
    2. Detach the claw and remove the seat position sensor protector.
    3. Using a T30 "torx" socket, remove the "torx" bolt and seat position sensor.
    Fig 23: Identifying Seat Position Sensor Protector
    G04051101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
