Rear Sunshade does not Operate with Rear Sunshade Switch: Wiring Diagram

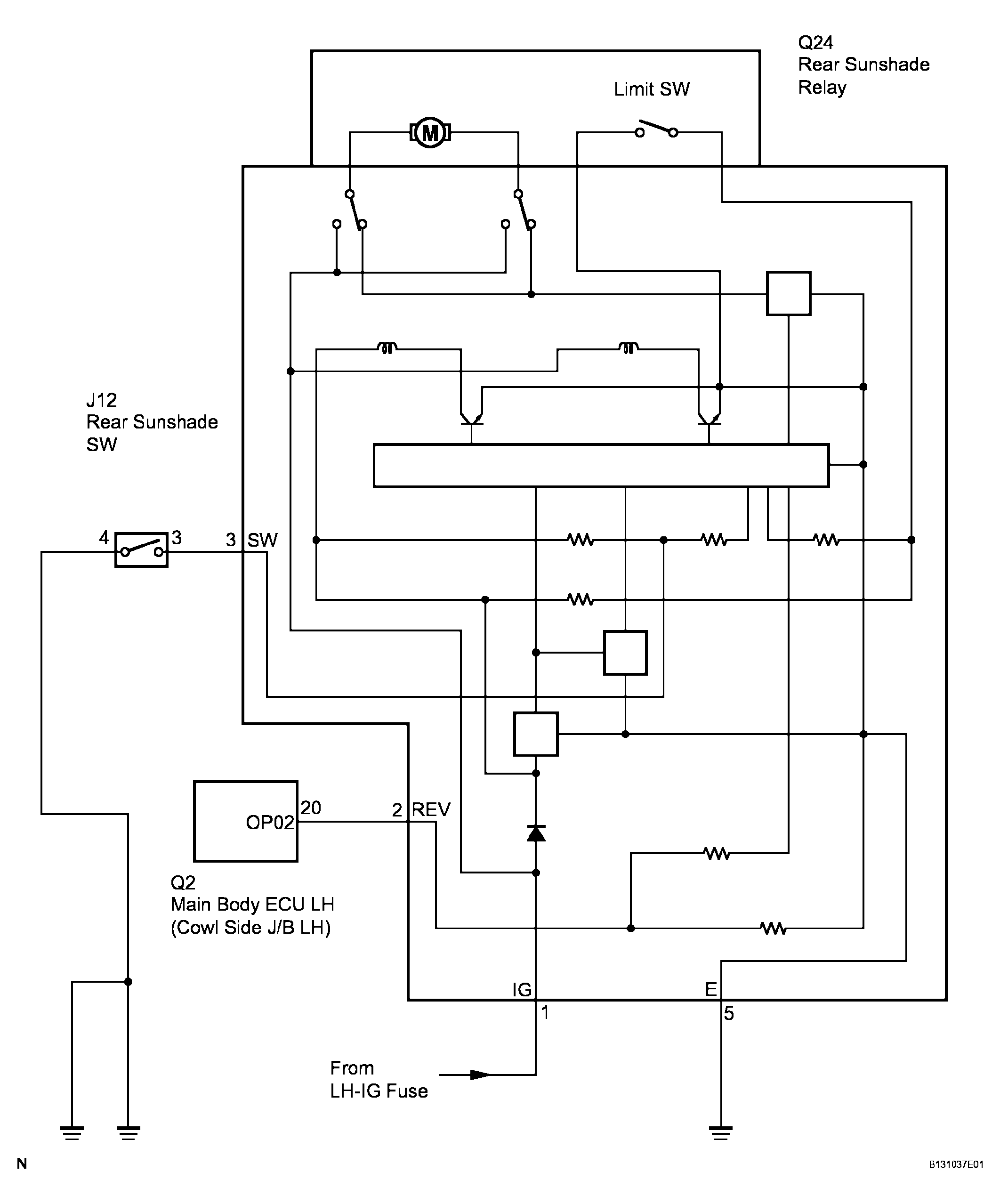

Fig 1: Rear Sunshade Does Not Operate With Rear Sunshade Switch Wiring Diagram

G04051627

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
