On-Vehicle Inspection

INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

Check that the clearance measurements of areas A to F are within each standard range.

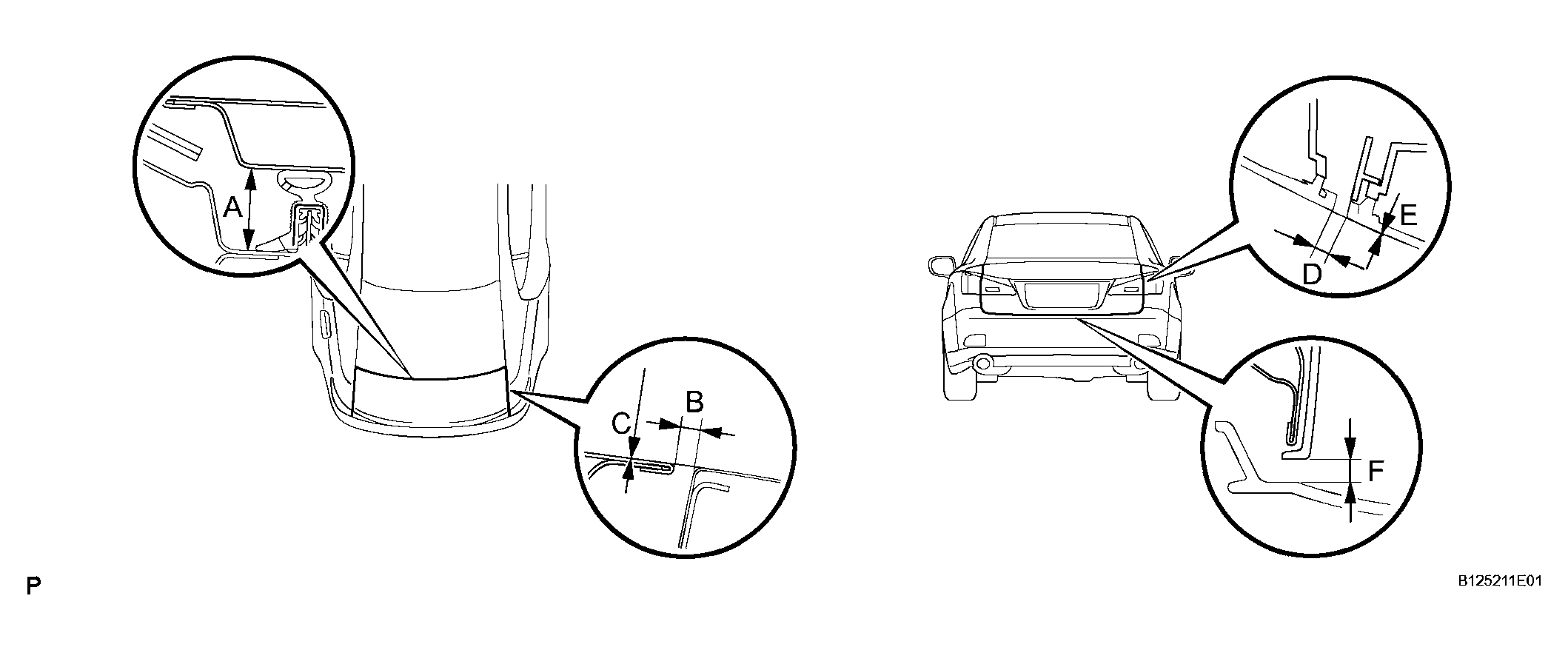

Fig 1: Inspecting Luggage Compartment Door Panel Sub-Assembly

G04051473

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

Area	Measurement
A	21.7 to 24.7 mm (0.854 to 0.972 in.)
B	2.0 to 5.0 mm (0.079 to 0.197 in.)
C	-1.1 to 1.9 mm (-0.043 to 0.075 in.)
D	2.5 to 5.5 mm (0.098 to 0.217 in.)
E	-1.9 to 2.1 mm (-0.075 to 0.083 in.)
F	3.7 to 7.7 mm (0.146 to 0.303 in.)
