Luggage Compartment Door Opener Circuit: Wiring Diagram

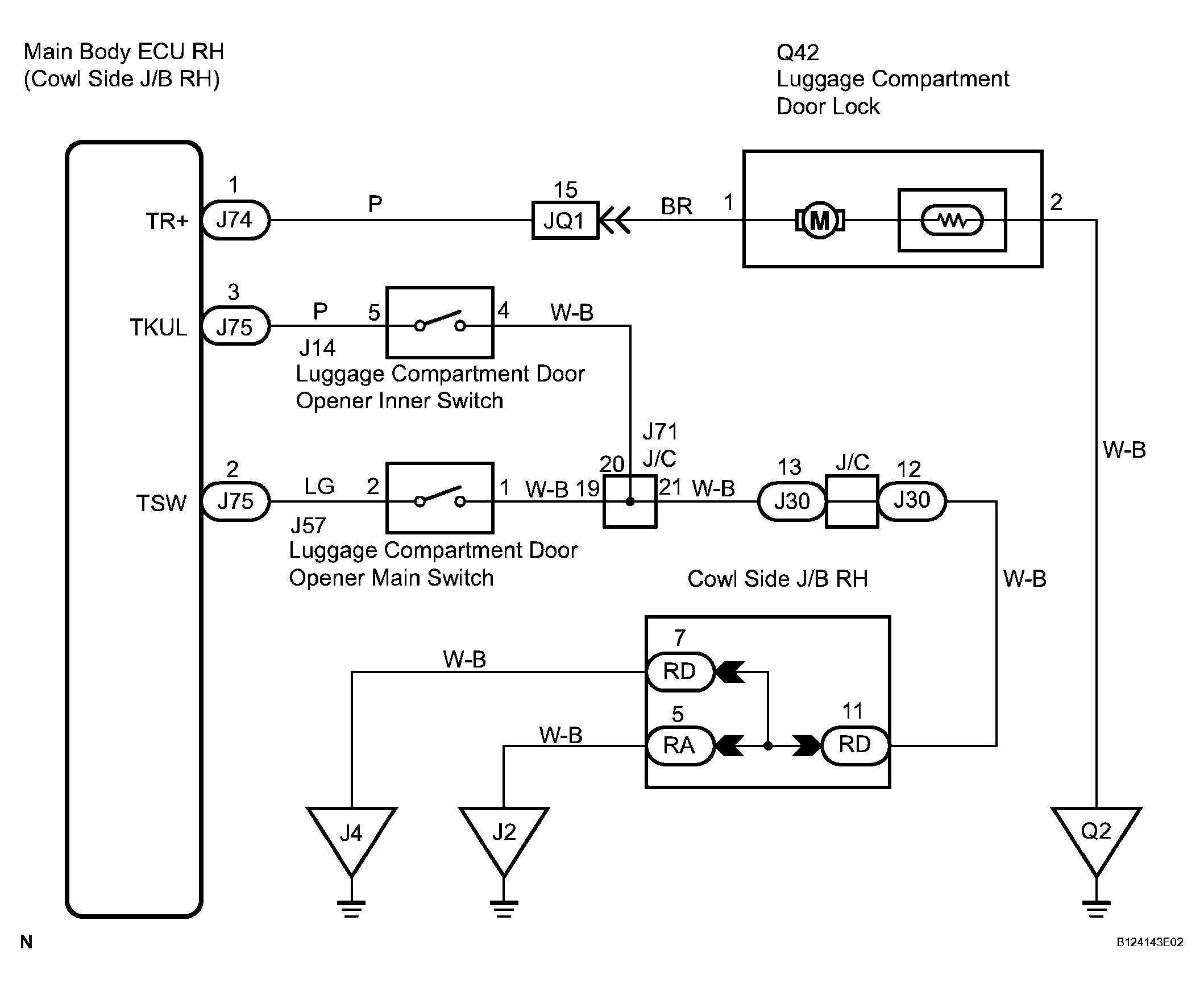

Fig 1: Luggage Compartment Door Opener Circuit Wiring Diagram

G04051280

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
