Luggage Compartment Door Opener Inner Switch: Installation
- INSTALL LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH

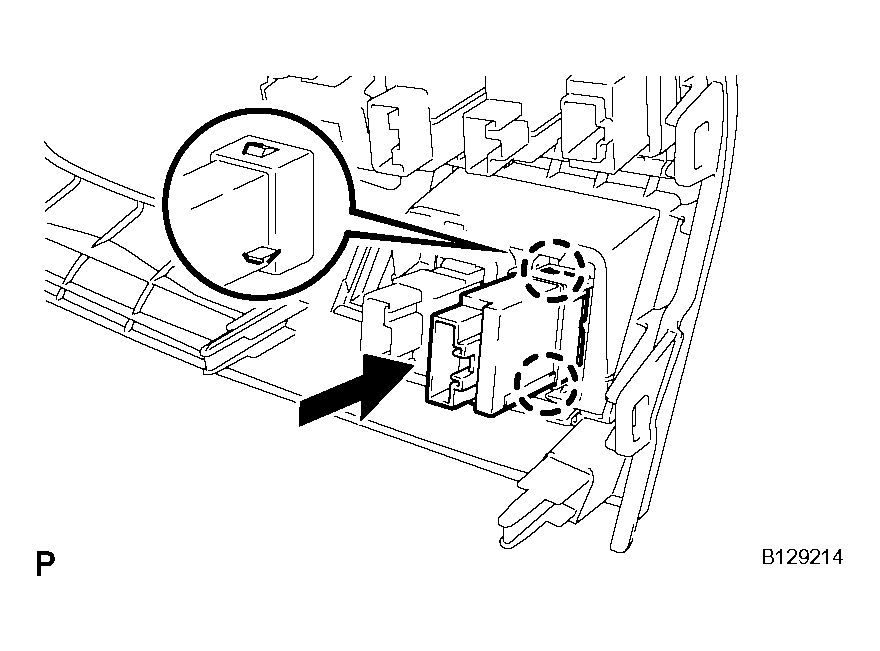

- Engage the 2 claws and install the luggage compartment door opener inner switch.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See Step 25 in INSTALLATION
)
- INSTALL SIDE INSTRUMENT PANEL LH (See Step 26 in INSTALLATION
)
- INSTALL FRONT DOOR OPENING TRIM COVER LH (See Step 27 in INSTALLATION
)
- INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination) (See Step 88 in INSTALLATION
)
- INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination) (See Step 90 in INSTALLATION
)
