Luggage Compartment Door Opener Inner Switch: Inspection

  1. INSPECT LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH
    1. Measure the resistance according to the value(s) in LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH TABLE  .
    LUGGAGE COMPARTMENT DOOR OPENER INNER SWITCH TABLE

    Tester Connection Switch Condition Specified Condition
    4-5 Switch pushed (ON) Below 1 ohms
    Switch free (OFF) 10 k ohms or higher

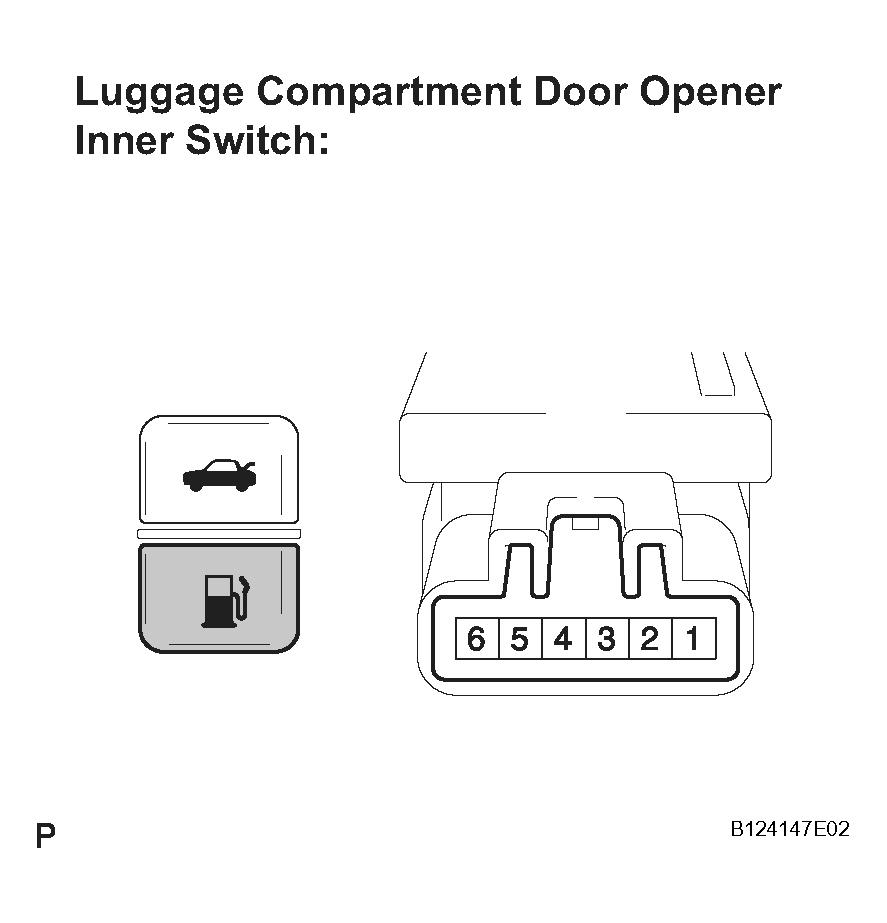

    Fig 1: Inspecting Luggage Compartment Door Opener Inner Switch
    G04051495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the switch assembly.
