On-Vehicle Inspection

INSPECT HOOD SUB-ASSEMBLY

Check that the clearance measurements of areas A to D are within each standard range.

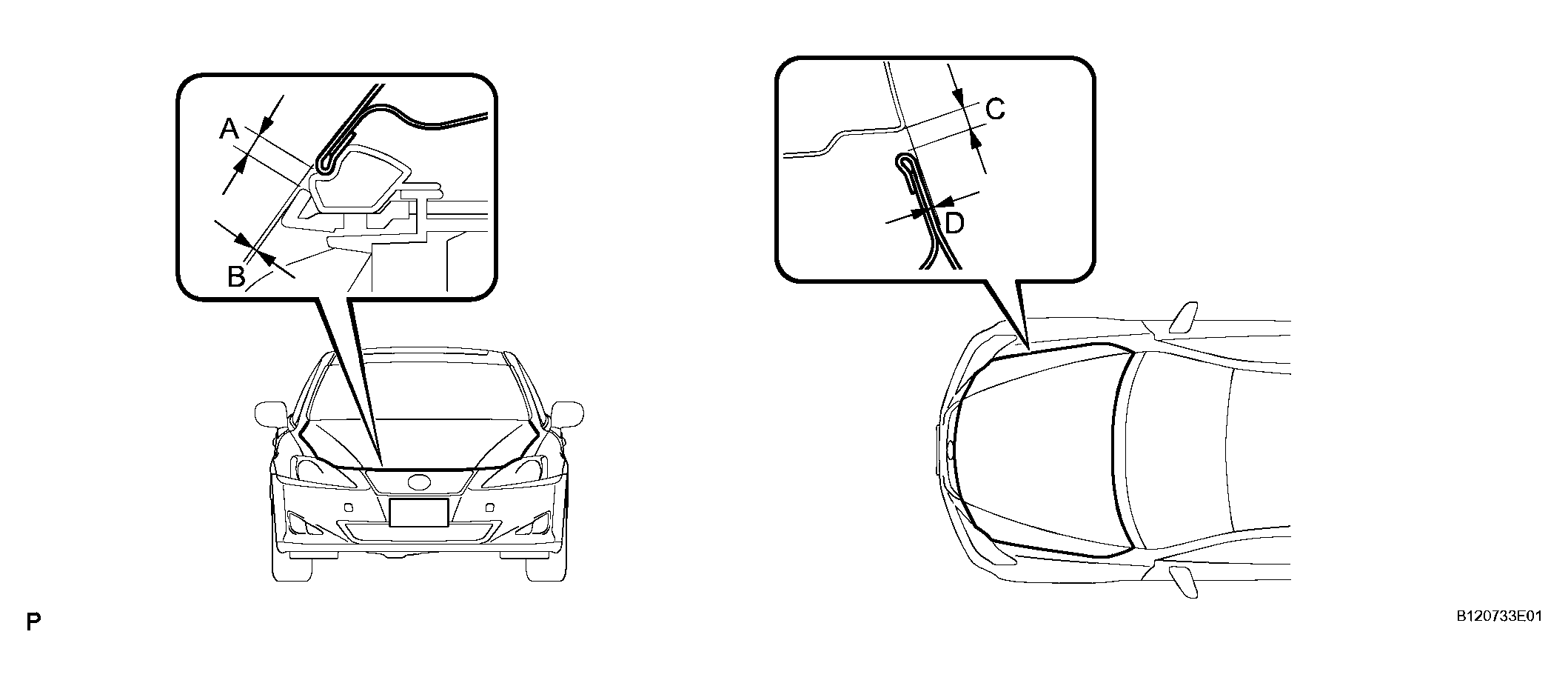

Fig 1: Checking Clearance Measurements Of Areas A To D

G04051289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HOOD SUB-ASSEMBLY TABLE

Area	Measurement
A	2.2 to 5.2 mm (0.087 to 0.205 in.)
B	-0.6 to 2.4 mm (-0.024 to 0.095 in.)
C	2.2 to 5.2 mm (0.087 to 0.205 in.)
D	-1.3 to 1.7 mm (-0.051 to 0.067 in.)
