On-Vehicle Inspection

INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

Check that the clearance measurements of areas A to H are within each standard range.

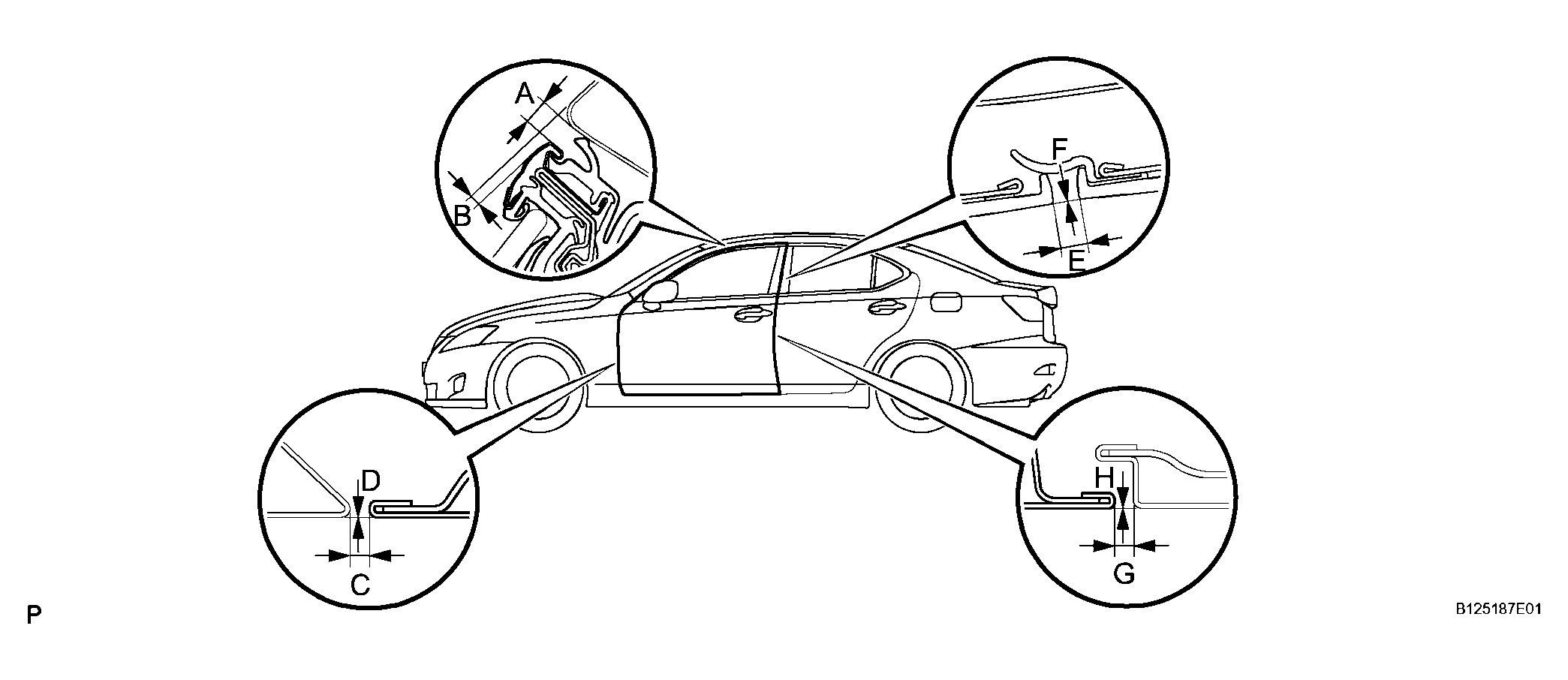

Fig 1: Inspecting Front Door Panel Sub-Assembly

G04051319

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FRONT DOOR PANEL SUB-ASSEMBLY TABLE

Area	Measurement
A	3.3 to 6.3 mm (0.130 to 0.248 in.)
B	1.0 to 4.0 mm (0.039 to 0.158 in.)
C	2.5 to 5.5 mm (0.098 to 0.217 in.)
D	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
E	2.8 to 5.8 mm (0.110 to 0.228 in.)
F	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
G	2.5 to 5.5 mm (0.098 to 0.217 in.)
H	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
