DTC B2785, B2786, B2789: Communication Malfunction between ECUs Connected by LIN; No Response from Steering Lock ECU; No Response from ID BOX: Wiring Diagram

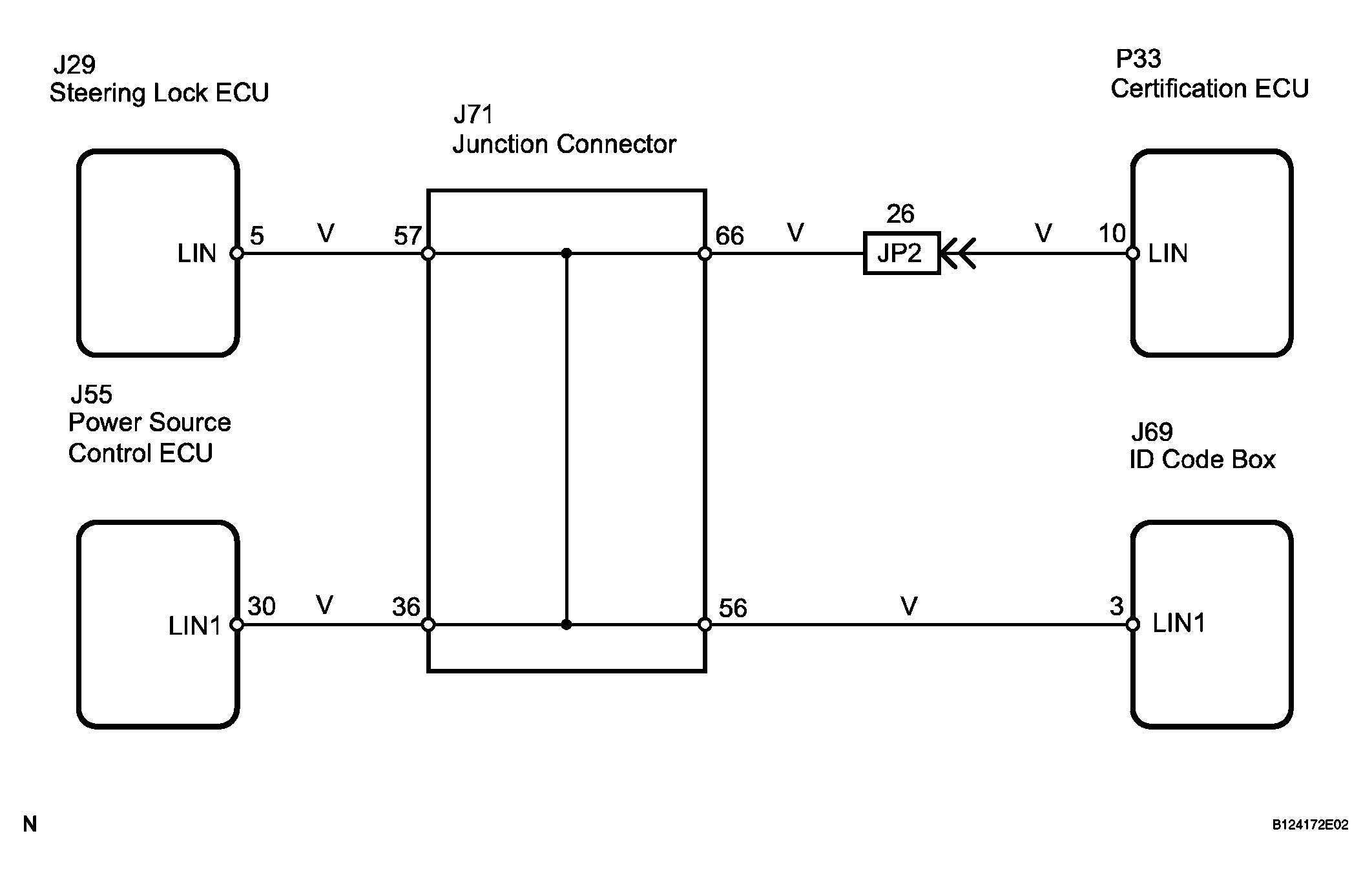

Fig 1: Wiring Diagram - Communication Malfunction
G04049171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
