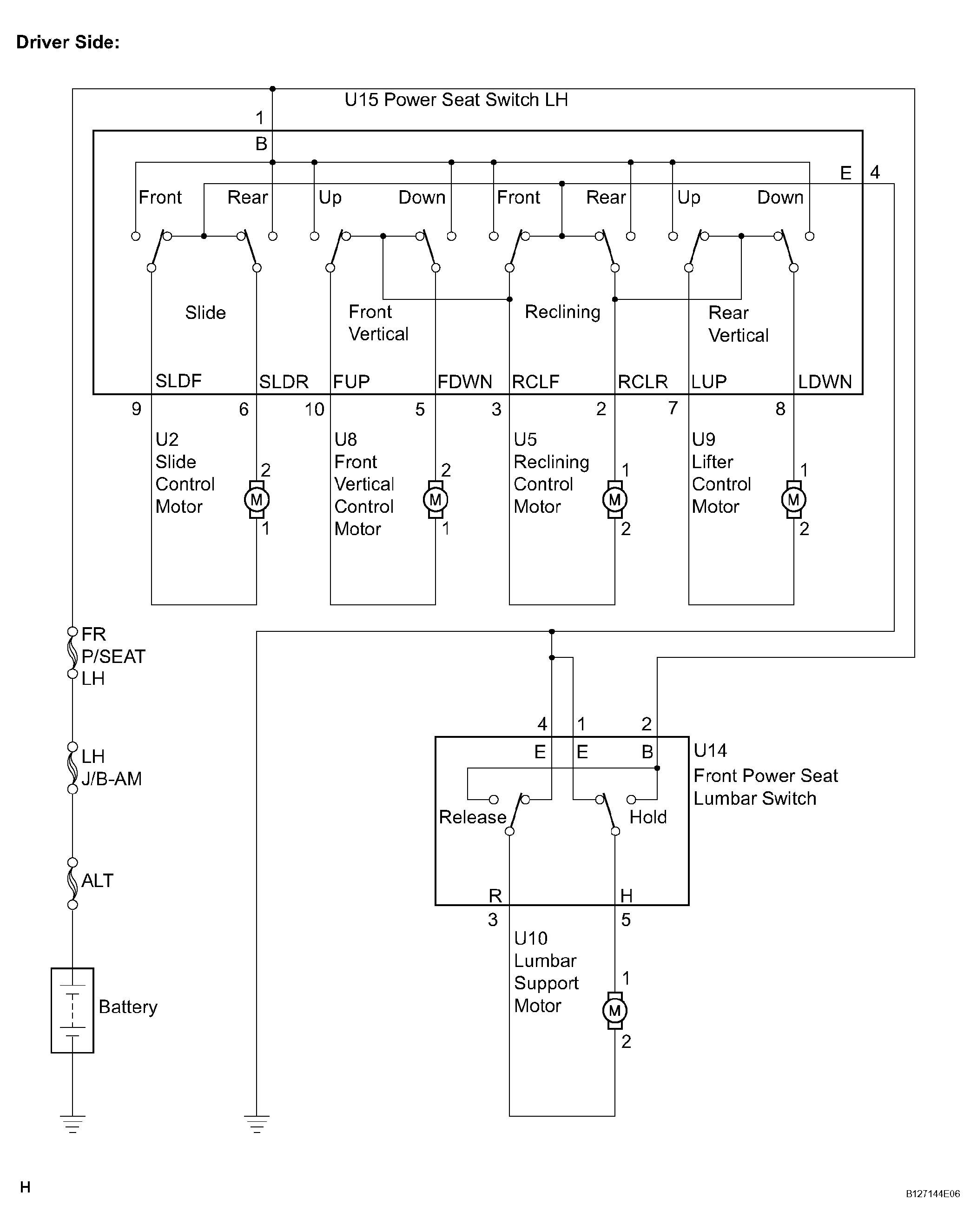

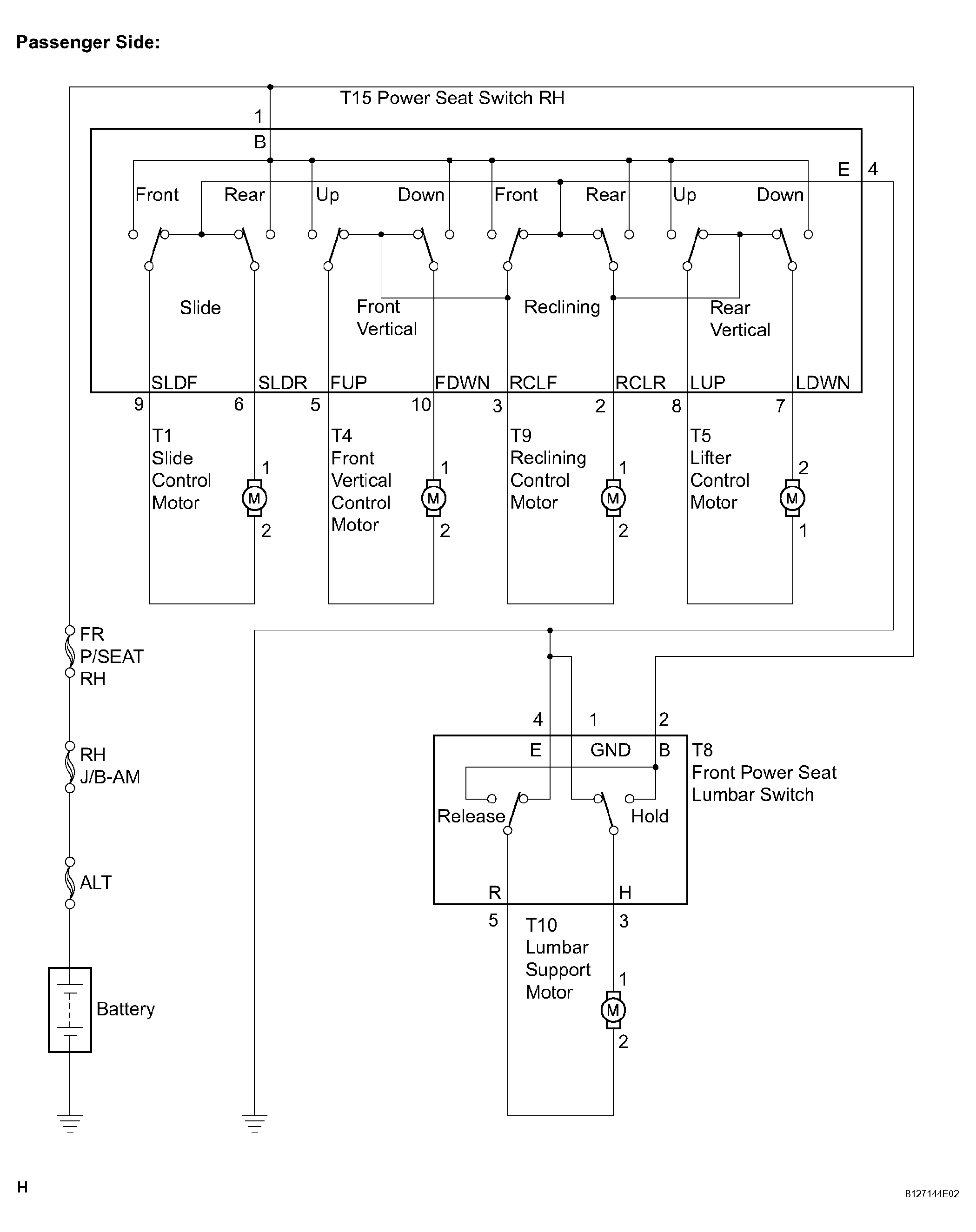

Home >> Lexus >> 2006 >> IS 250 RWD, Automatic >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Seats >> Seat >> FRONT POWER SEAT CONTROL SYSTEM (w/o Seat Position Memory System) >> System Diagram
