Parts Location

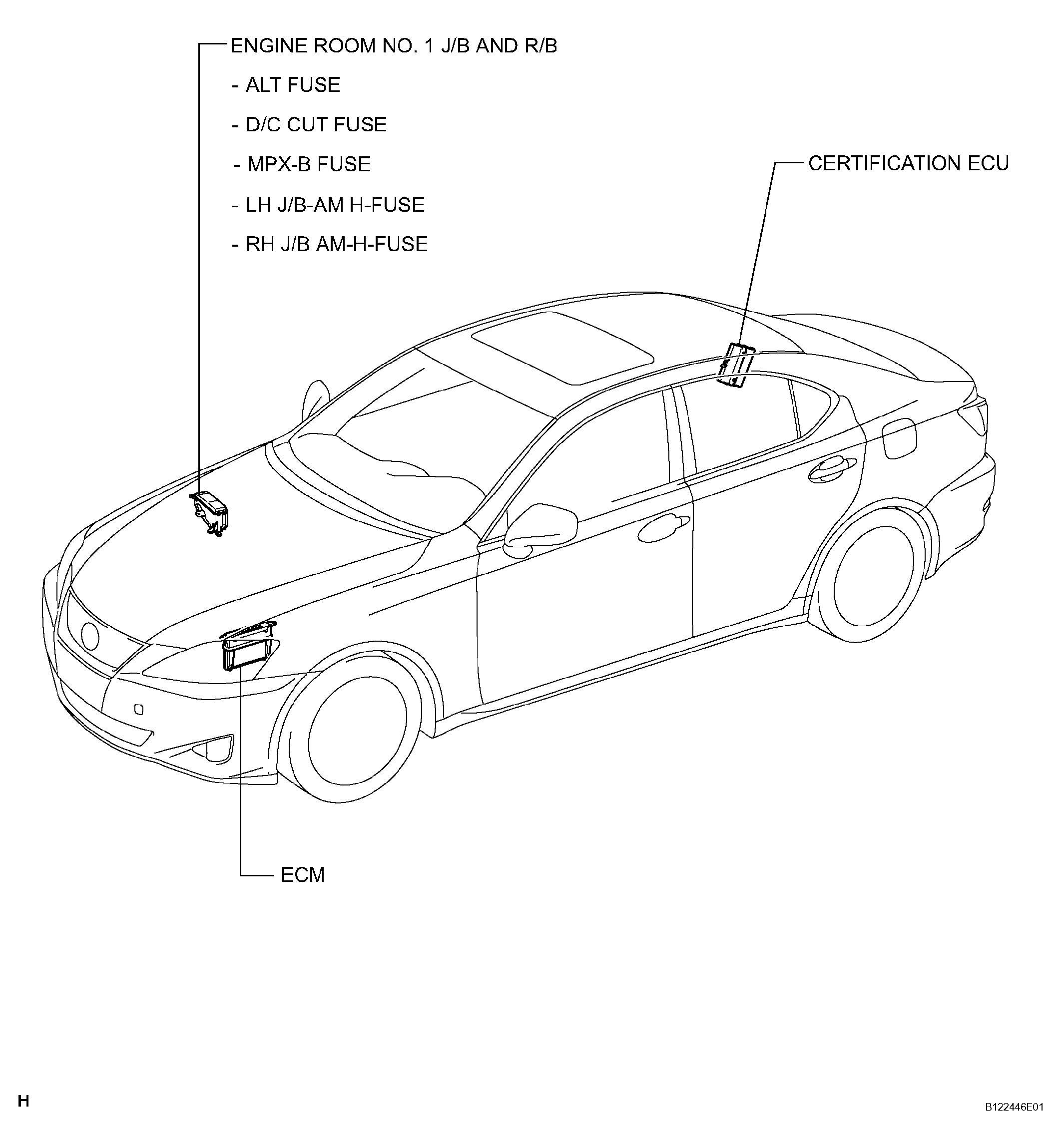

Fig 1: Identifying Front Power Seat Control System Parts Location (1 Of 4)
G04051005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

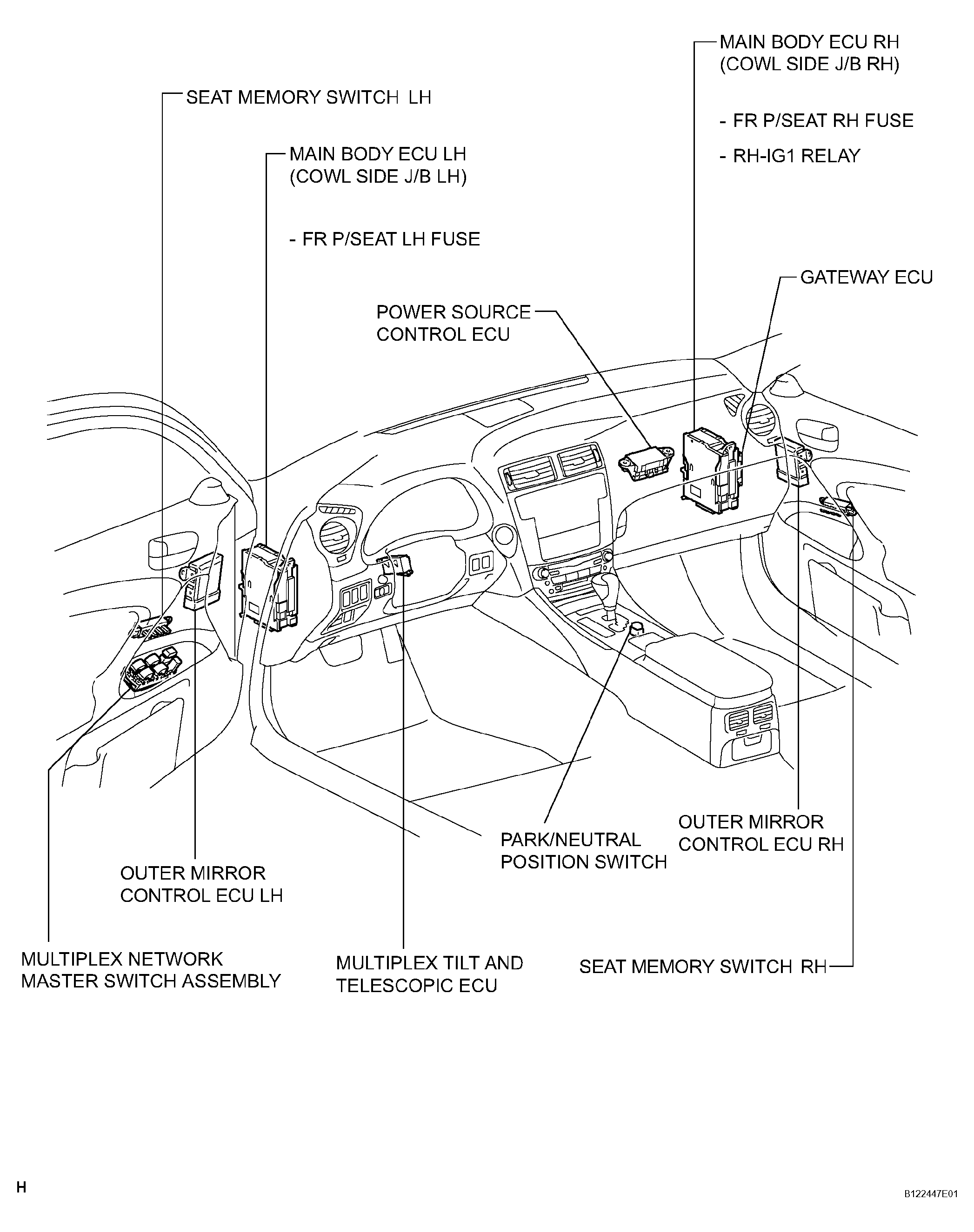

Fig 2: Identifying Front Power Seat Control System Parts Location (2 Of 4)
G04051006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

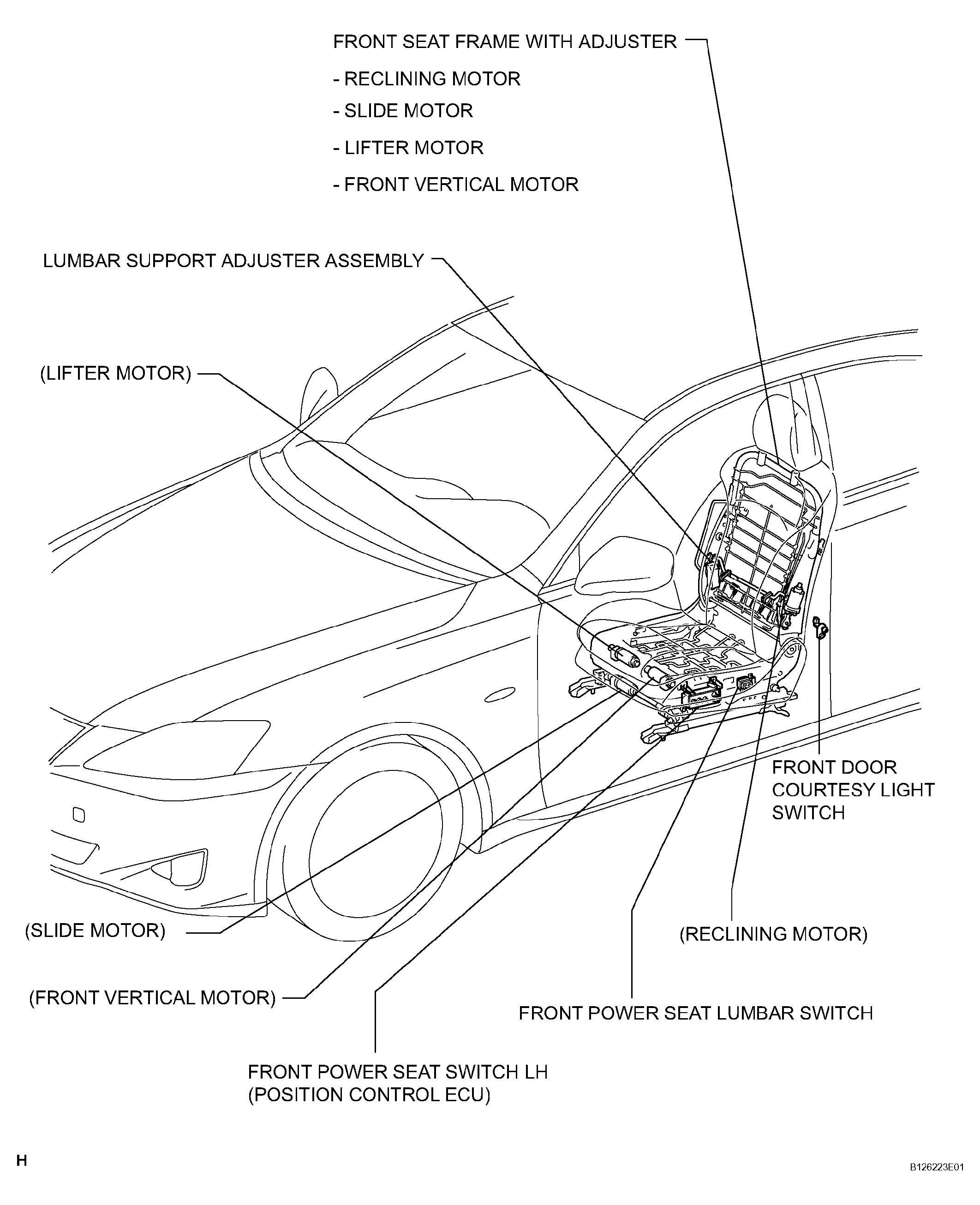

Fig 3: Identifying Front Power Seat Control System Parts Location (3 Of 4)
G04051007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

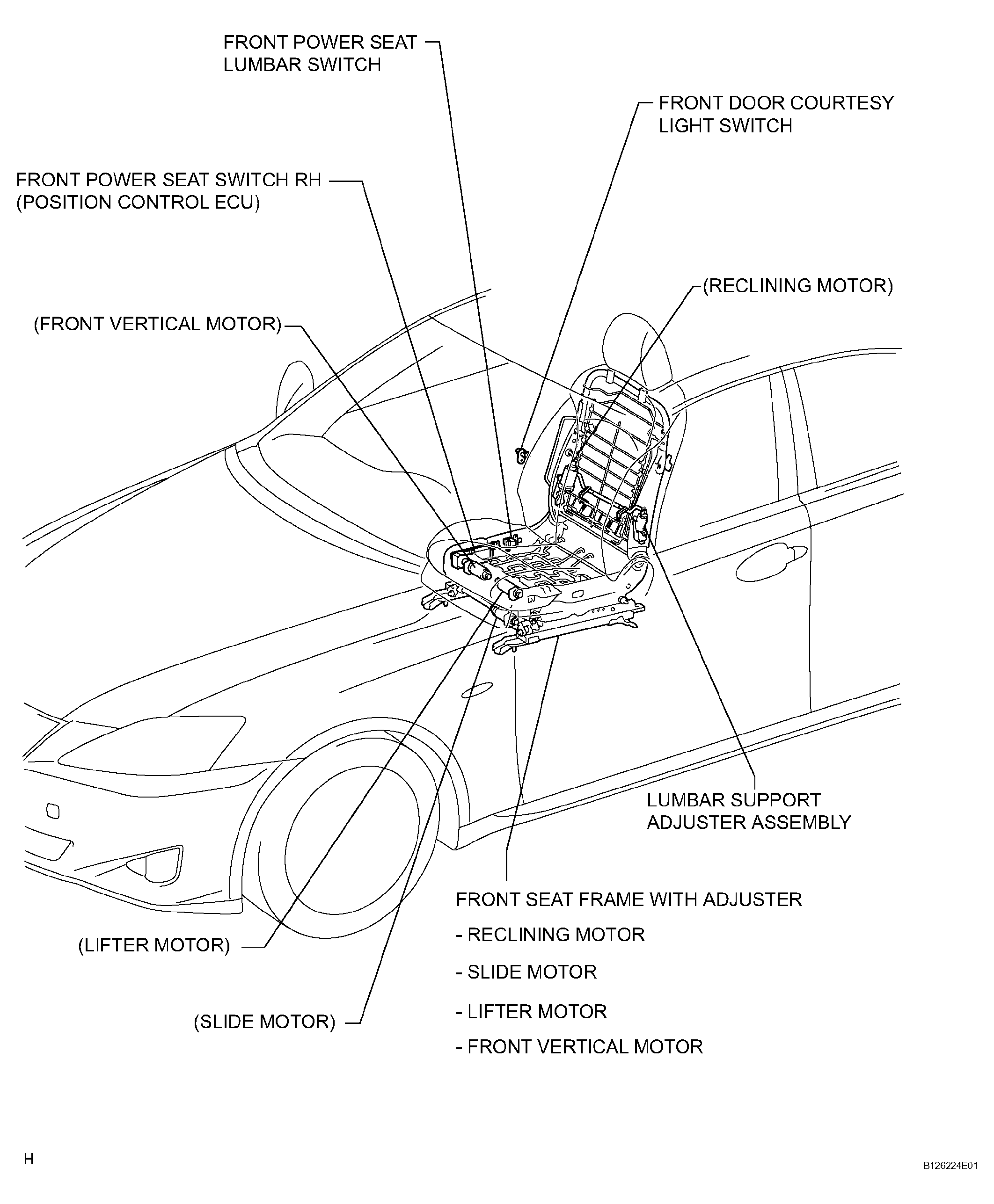

Fig 4: Identifying Front Power Seat Control System Parts Location (4 Of 4)
G04051008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
