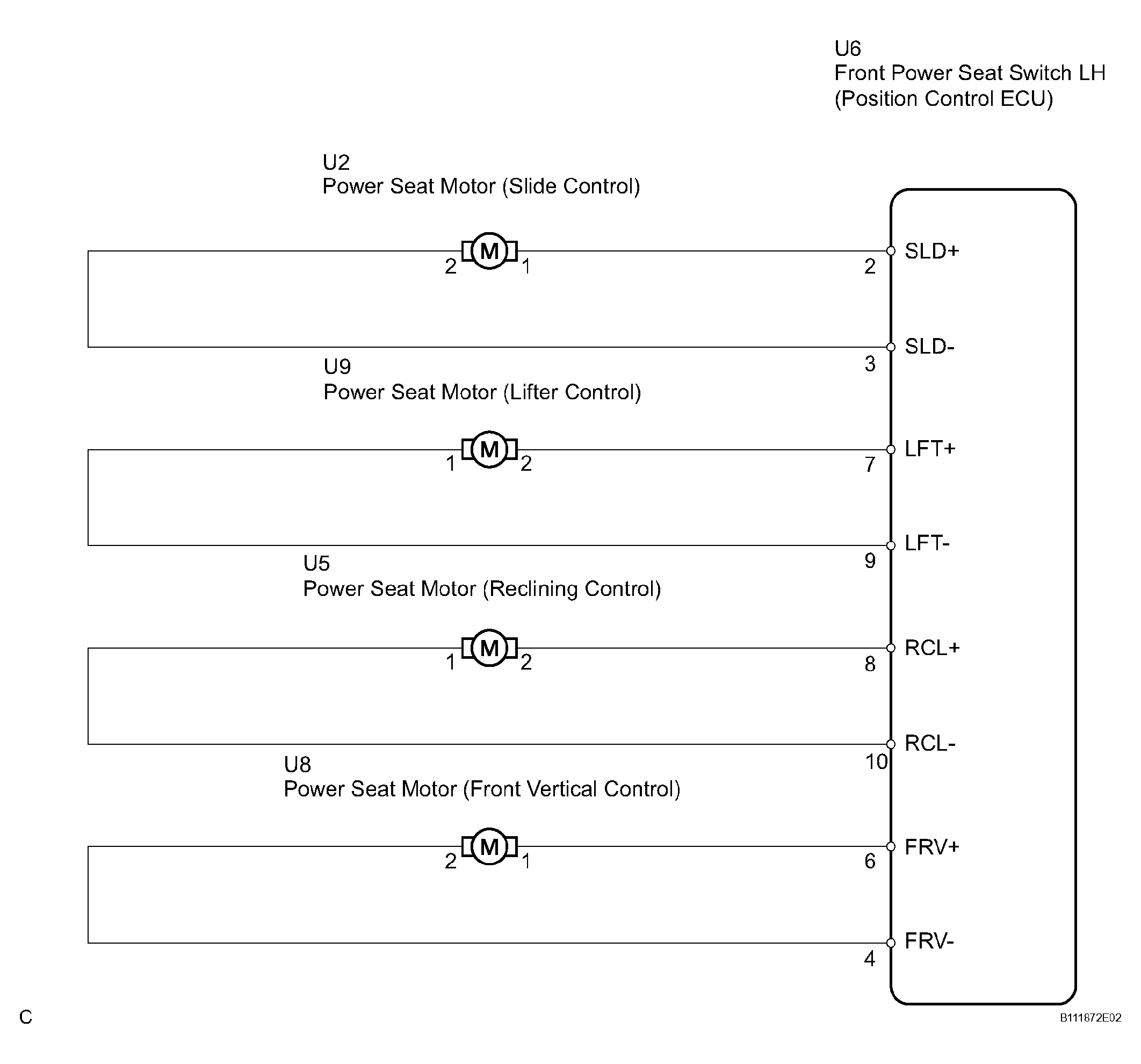

Driver Side Power Seat Motor Circuit: Wiring Diagram
- PERFORM ACTIVE TEST BY INTELLIGENT TESTER (FRONT POWER SEAT SWITCH LH (POSITION CONTROL ECU))
- Connect the intelligent tester (with CAN VIM) to the DLC3.
- Turn the engine switch on (IG).
- Perform the ACTIVE TEST by following the directions on the tester screen.
SEAT:
ACTIVE TEST DISPLAY CHART (SEAT)Item Test Details Diagnostic Note RECLINING Seat reclining operation FRONT / REAR - F VERTICAL Seat front vertical operation UP / DOWN - LIFTER Seat lifter operation UP / DOWN - SLIDE Seat sliding operation FRONT / REAR - OK: Each power seat motor operates.
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- INSPECT FRONT SEAT ADJUSTER SUB-ASSEMBLY (POWER SEAT MOTOR)
- Inspect the power seat motor (See INSPECTION
).
OK: The power seat motor operates.
NG: REPLACE FRONT SEAT ADJUSTER SUB-ASSEMBLY (POWER SEAT MOTOR)
OK: Go to next step.
- Inspect the power seat motor (See INSPECTION
).
- CHECK WIRE HARNESS (FRONT POWER SEAT SWITCH LH - POWER SEAT MOTOR)

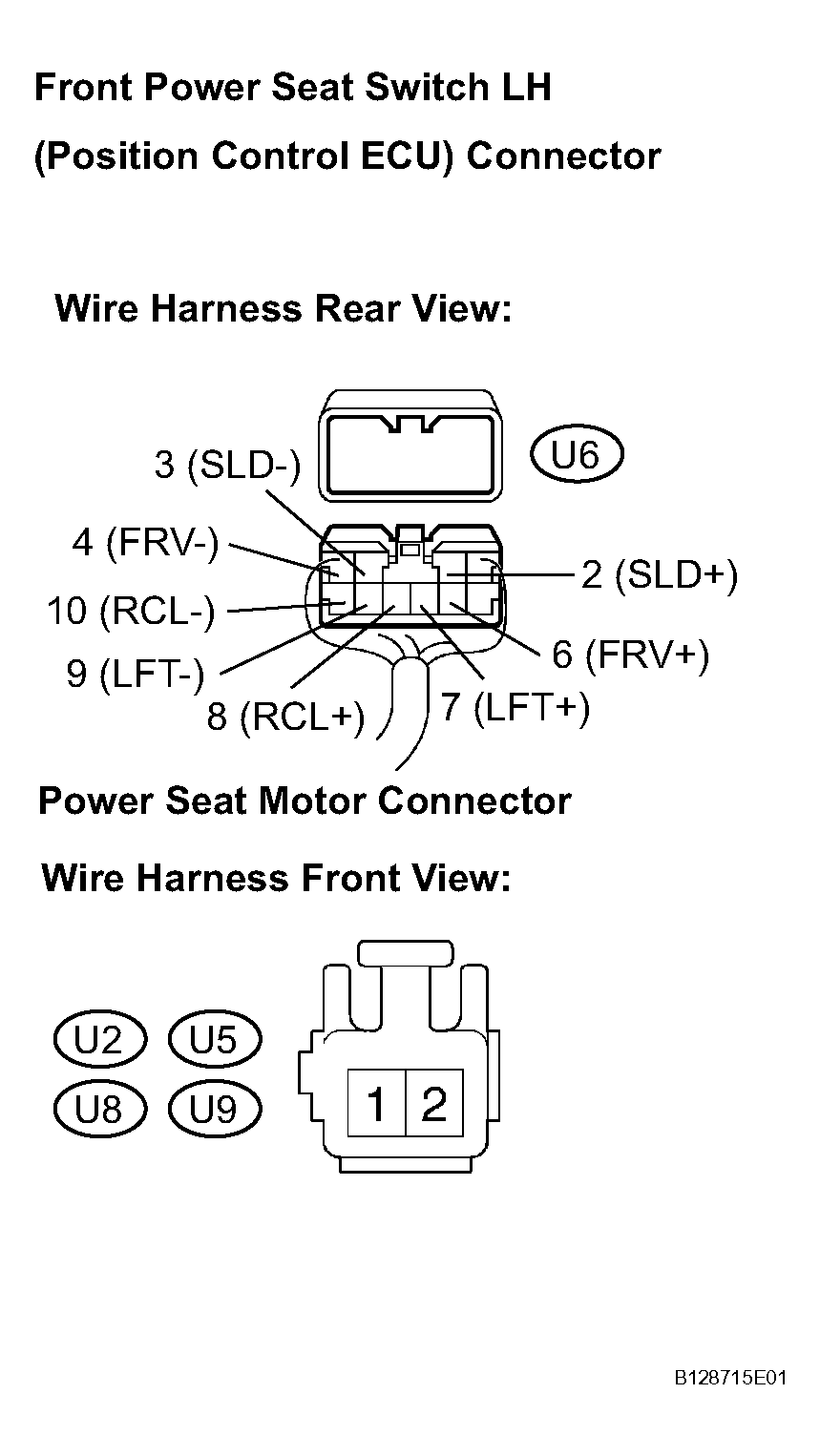

- Disconnect the front power seat switch LH (position control ECU) connector and power seat motor connectors.
- Measure the resistance according to the value(s) in the table below.TESTER CONDITION SPECIFIED CONDITION CHART
Tester Connection Condition Specified Condition U6-2 (SLD+) - U2-1 Always Below 1 Ω U6-3 (SLD-) - U2-2 Always Below 1 Ω U6-4 (FRV-) - U8-2 Always Below 1 Ω U6-6 (FRV+) - U8-1 Always Below 1 Ω U6-7 (LFT+) - U9-2 Always Below 1 Ω U6-9 (LFT-) - U9-1 Always Below 1 Ω U6-8 (RCL+) - U5-2 Always Below 1 Ω U6-10 (RCL-) - U5-1 Always Below 1 Ω U6-2 (SLD+) - Body ground Always 10 kΩ or higher U6-3 (SLD-) - Body ground Always 10 kΩ or higher U6-4 (FRV-) - Body ground Always 10 kΩ or higher U6-6 (FRV+) - Body ground Always 10 kΩ or higher U6-7 (LFT+) - Body ground Always 10 kΩ or higher U6-9 (LFT-) - Body ground Always 10 kΩ or higher U6-8 (RCL+) - Body ground Always 10 kΩ or higher U6-10 (RCL-) - Body ground Always 10 kΩ or higher
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
