Rocker Panel Molding: Removal

REMOVE NO. 2 REAR FLOOR HOUSING SHIELD
1. Using a clip remover, remove the 2 clips.
2. Remove the screw and No. 2 rear floor housing shield.
Fig 1: Removing Screw & No. 2 Rear Floor Housing Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 FRONT DOOR WEATHERSTRIP
1. Fully open the front door and rear door.

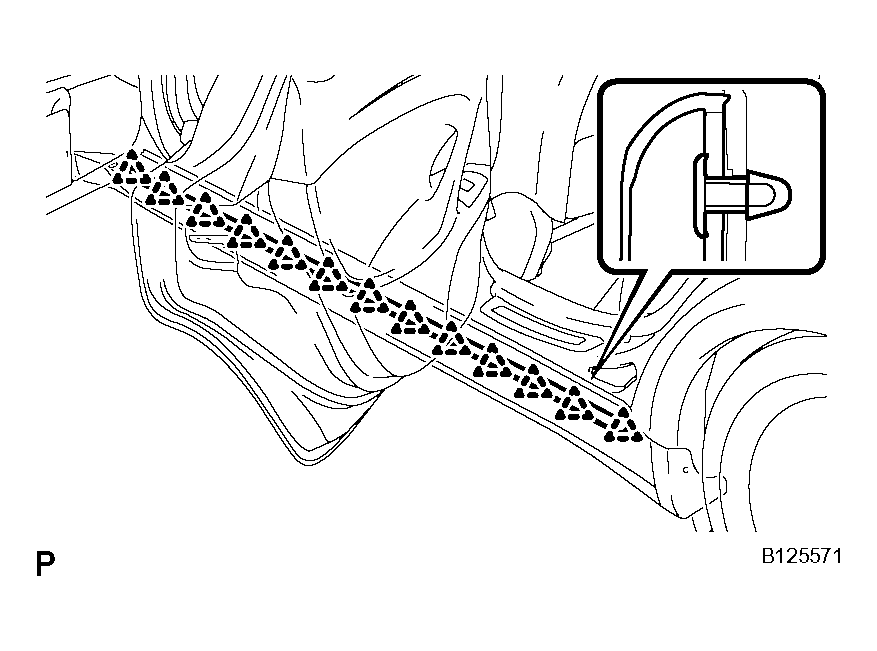

2. Disengage the 13 clips and remove the No. 2 front door weatherstrip.
Fig 2: Removing Front Door Weatherstrip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROCKER PANEL MOLDING ASSEMBLY
1. Remove the screw.

  Fig 3: Removing Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the screw.

  Fig 4: Removing Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

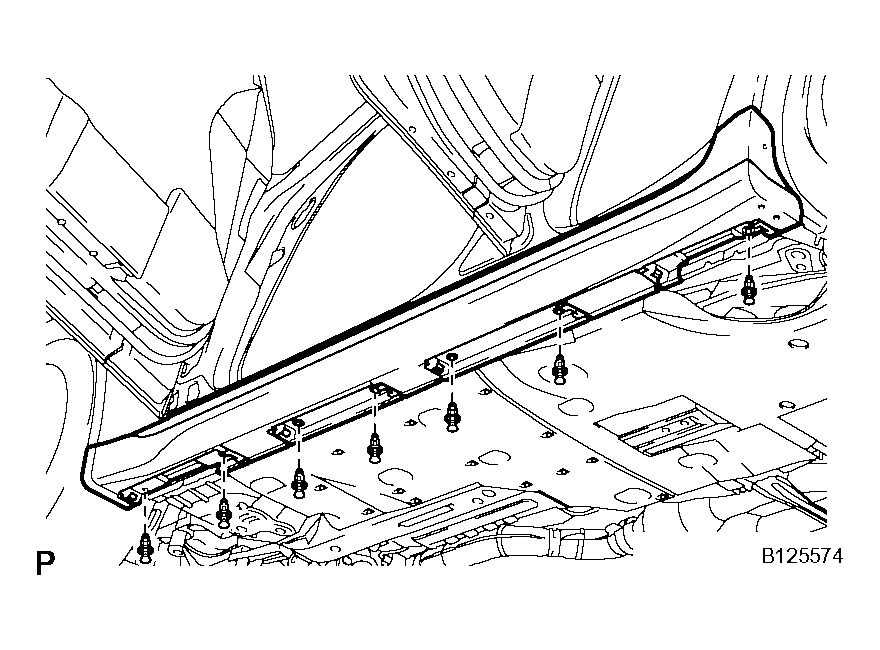

3. Using a clip remover, remove the 7 clips.

  Fig 5: Removing Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

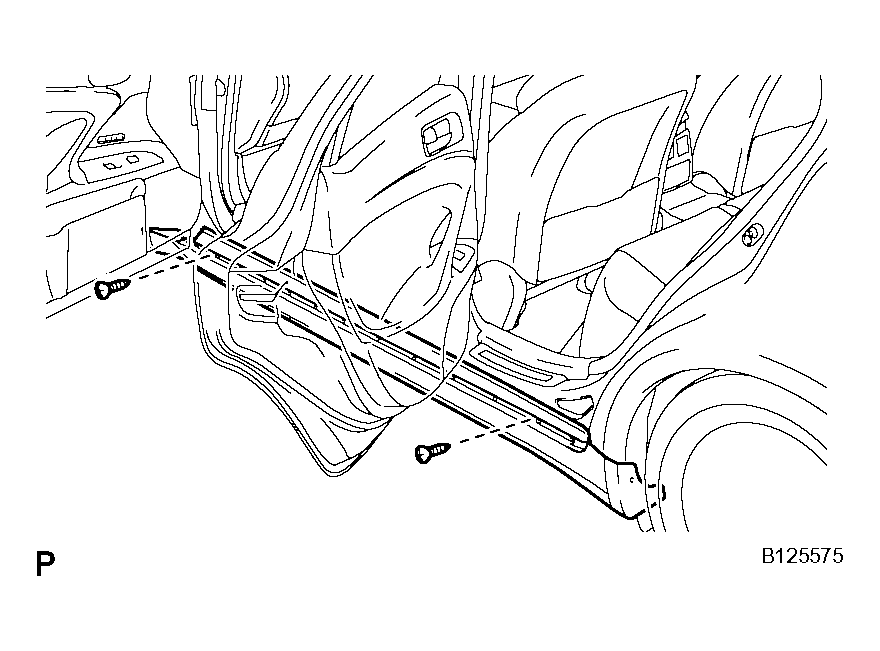

4. Remove the 2 screws.

  Fig 6: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

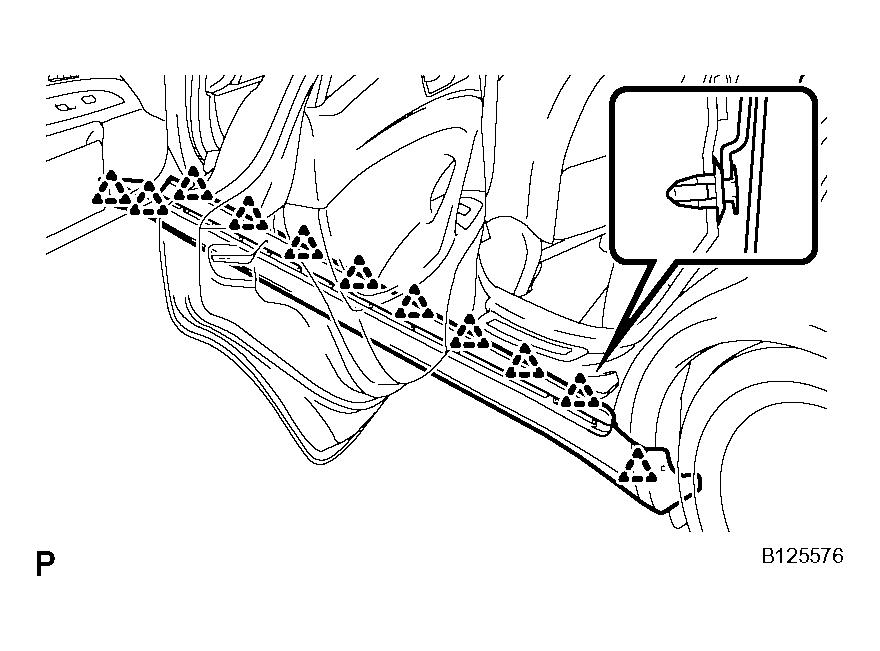

5. Disengage the 11 clips and remove the rocker panel molding assembly.
Fig 7: Removing Rocker Panel Molding Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
