Rear Bumper: Reassembly

  1. INSTALL UPPER REAR BUMPER RETAINER RH
  2. INSTALL UPPER REAR BUMPER RETAINER LH
  3. INSTALL NO. 2 REAR BUMPER SIDE SUPPORT RH
  4. INSTALL NO. 2 REAR BUMPER SIDE SUPPORT LH
  5. INSTALL NO. 1 REAR BUMPER SIDE SUPPORT RH
  6. INSTALL NO. 1 REAR BUMPER SIDE SUPPORT LH
  7. INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Install the grommet to the rear bumper reinforcement sub-assembly.
    2. Install the rear bumper reinforcement sub-assembly with the 8 bolts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

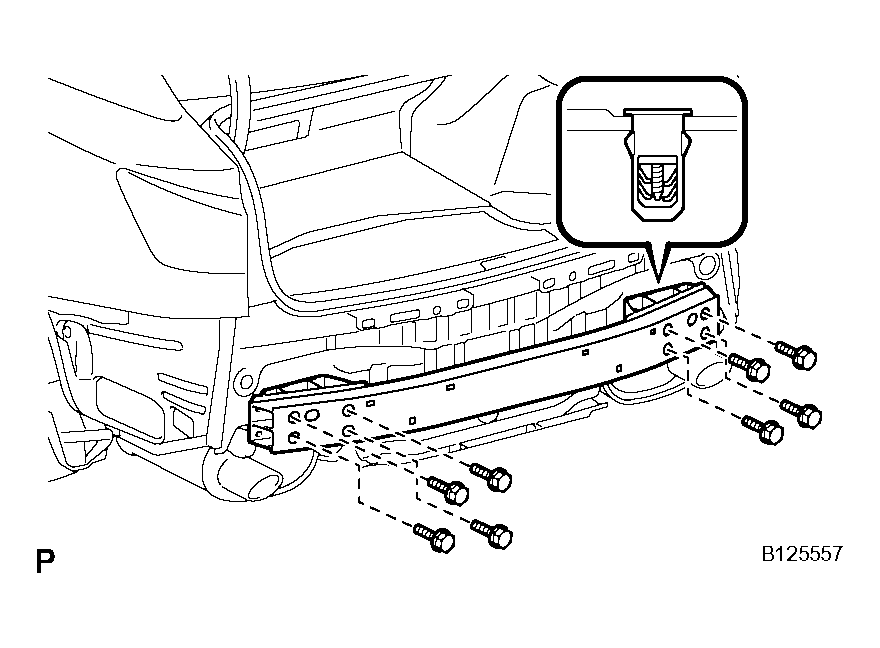

    Fig 1: Installing Rear Bumper Reinforcement Sub-Assembly With Bolts
    G04051561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR BUMPER ARM REINFORCEMENT RH
  9. INSTALL REAR BUMPER ARM REINFORCEMENT LH
  10. INSTALL REAR BUMPER BAR
  11. INSTALL REAR BUMPER ENERGY ABSORBER
  12. INSTALL REAR BUMPER COVER
  13. INSTALL REAR BUMPER PROTECTOR LH
    1. Install the new rear bumper protector LH.
  14. INSTALL REAR BUMPER PROTECTOR RH
  15. INSTALL REFLEX REFLECTOR ASSEMBLY RH
  16. INSTALL REFLEX REFLECTOR ASSEMBLY LH
  17. INSTALL REAR BUMPER PIECE RH
  18. INSTALL REAR BUMPER PIECE LH
  19. INSTALL NO. 3 LUGGAGE ROOM WIRE (w/ Clearance Sonar System)
  20. INSTALL NO. 2 ULTRASONIC SENSOR RETAINER (w/ Clearance Sonar System)
  21. INSTALL NO. 2 ULTRASONIC SENSOR (w/ Clearance Sonar System) (See Step 2 in  INSTALLATION  )
  22. INSTALL NO. 1 ULTRASONIC SENSOR (w/ Clearance Sonar System) (See  INSTALLATION  )
