Rear Bumper: Disassembly

  1. REMOVE NO. 1 ULTRASONIC SENSOR (w/ Clearance Sonar System) (See Step 3 in  REMOVAL  )
  2. REMOVE NO. 2 ULTRASONIC SENSOR (w/ Clearance Sonar System) (See Step 17 in  REMOVAL  )
  3. REMOVE NO. 2 ULTRASONIC SENSOR RETAINER (w/ Clearance Sonar System)
  4. REMOVE NO. 3 LUGGAGE ROOM WIRE (w/ Clearance Sonar System)
  5. REMOVE REAR BUMPER PIECE LH
    1. Disengage the 2 claws and remove the rear bumper piece LH.
  6. REMOVE REAR BUMPER PIECE RH
    Fig 1: Removing Rear Bumper Piece LH
    G04051552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REFLEX REFLECTOR ASSEMBLY LH
    1. Remove the screw.
    2. Disengage the claw and remove the reflex reflector assembly LH.
  8. REMOVE REFLEX REFLECTOR ASSEMBLY RH
  9. REMOVE REAR BUMPER PROTECTOR LH
    1. Remove the rear bumper protector LH.
  10. REMOVE REAR BUMPER PROTECTOR RH
  11. REMOVE REAR BUMPER COVER
    Fig 2: Removing Rear Bumper Cover
    G04051553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR BUMPER ENERGY ABSORBER
    1. Remove the rear bumper energy absorber with rear bumper bar.

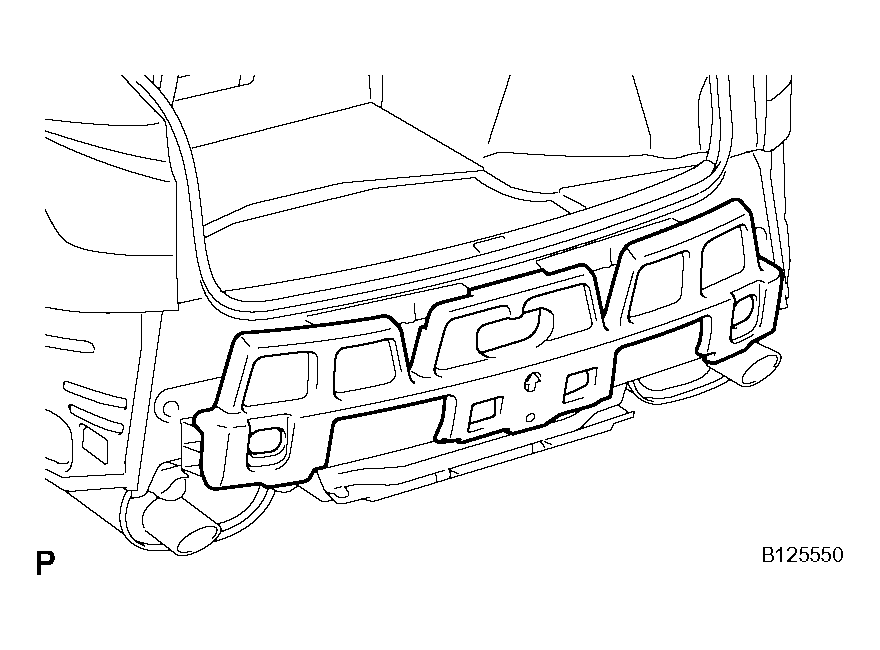

      Fig 3: Removing Rear Bumper Energy Absorber With Rear Bumper Bar
      G04051554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear bumper energy absorber from the rear bumper bar.
  13. REMOVE REAR BUMPER BAR
    Fig 4: Removing Rear Bumper Energy Absorber From Rear Bumper Bar
    G04051555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE REAR BUMPER ARM REINFORCEMENT LH
    1. Disengage the 3 claws and remove the rear bumper arm reinforcement LH.
  15. REMOVE REAR BUMPER ARM REINFORCEMENT RH

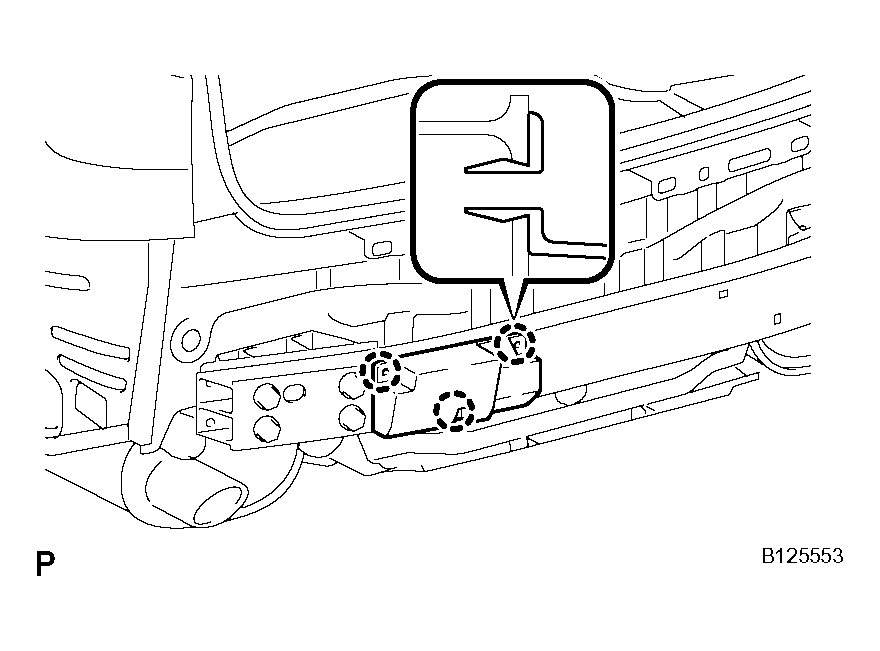

    Fig 5: Removing Rear Bumper Arm Reinforcement LH
    G04051556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 8 bolts.
    2. Disengage the 2 claws and remove the rear bumper reinforcement sub-assembly.
    3. Remove the grommet.

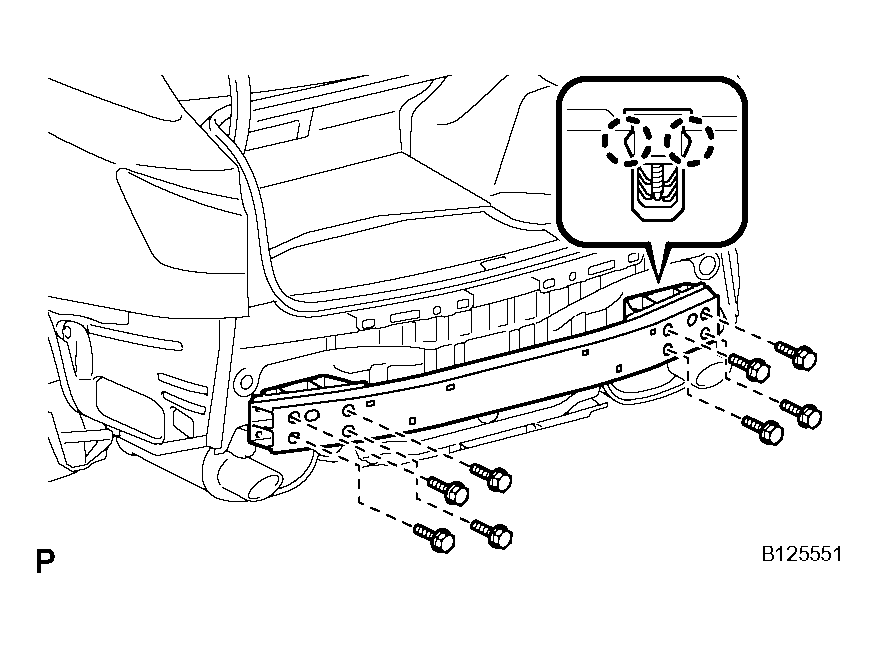

    Fig 6: Removing Rear Bumper Reinforcement Sub-Assembly
    G04051557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 1 REAR BUMPER SIDE SUPPORT LH
    1. Remove the 2 screws, clip and No. 1 rear bumper side support LH.
  18. REMOVE NO. 1 REAR BUMPER SIDE SUPPORT RH

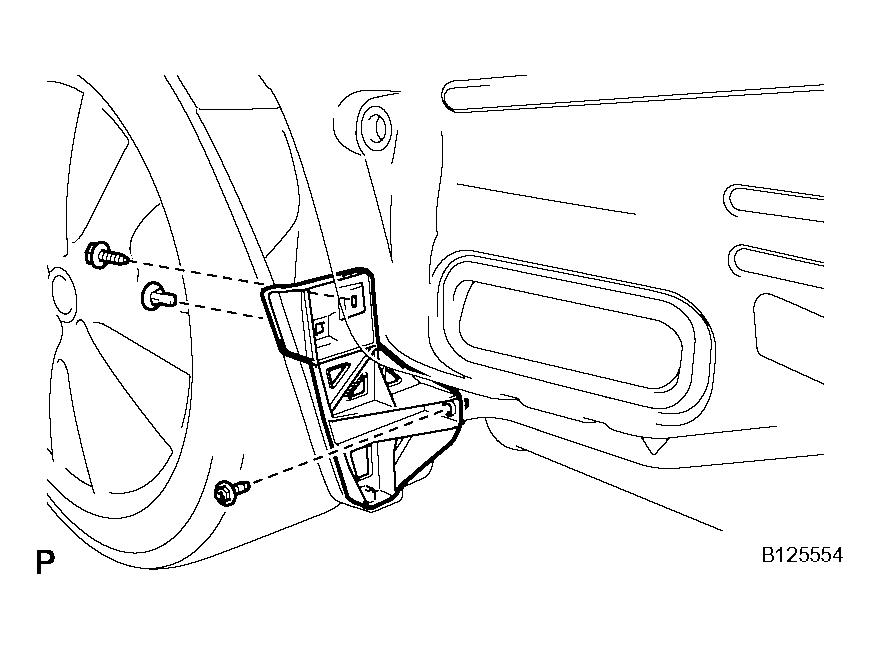

    Fig 7: Removing Screws, Clip & No. 1 Rear Bumper Side Support LH
    G04051558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 REAR BUMPER SIDE SUPPORT LH
    1. Remove the 2 screws and No. 2 rear bumper side support LH.
  20. REMOVE NO. 2 REAR BUMPER SIDE SUPPORT RH
    Fig 8: Removing Screws & No. 2 Rear Bumper Side Support LH
    G04051559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE UPPER REAR BUMPER RETAINER LH
    1. Remove the 2 screws and upper rear bumper retainer LH.
  22. REMOVE UPPER REAR BUMPER RETAINER RH

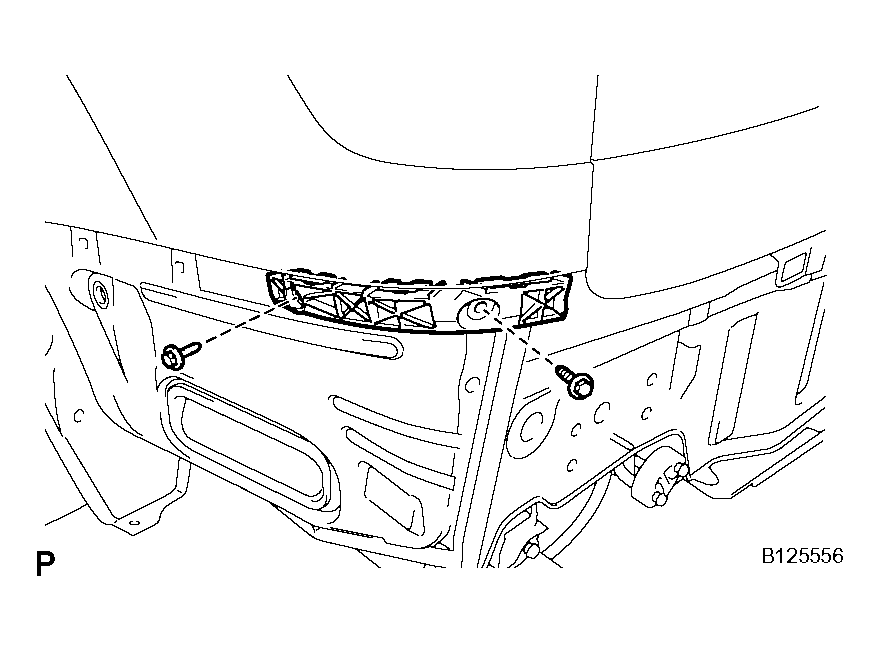

    Fig 9: Removing Screws & Upper Rear Bumper Retainer LH
    G04051560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
