Low Pitched Horn: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL
  2. REMOVE LOW PITCHED HORN
    1. Disconnect the connector.
    2. Remove the bolt and the low pitched horn.

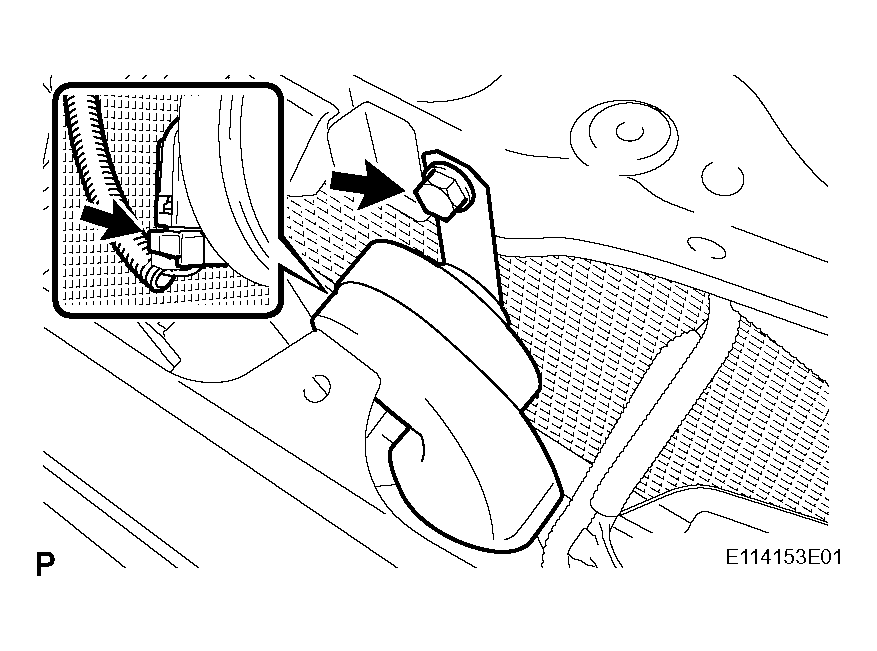

    Fig 1: Removing Bolt & Low Pitched Horn
    G04050648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
