High Pitched Horn: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL
  2. REMOVE HIGH PITCHED HORN
    1. Disconnect the connector.
    2. Remove the bolt and high pitched horn.

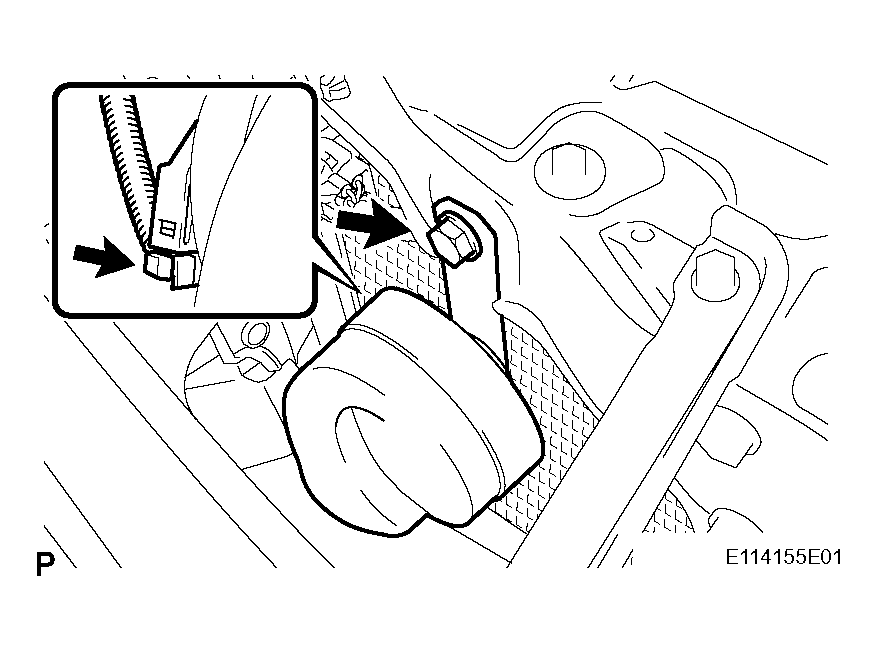

    Fig 1: Removing Bolt Of High Pitched Horn
    G04050652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
