Wiper and Washer Switch Circuit: Wiring Diagram

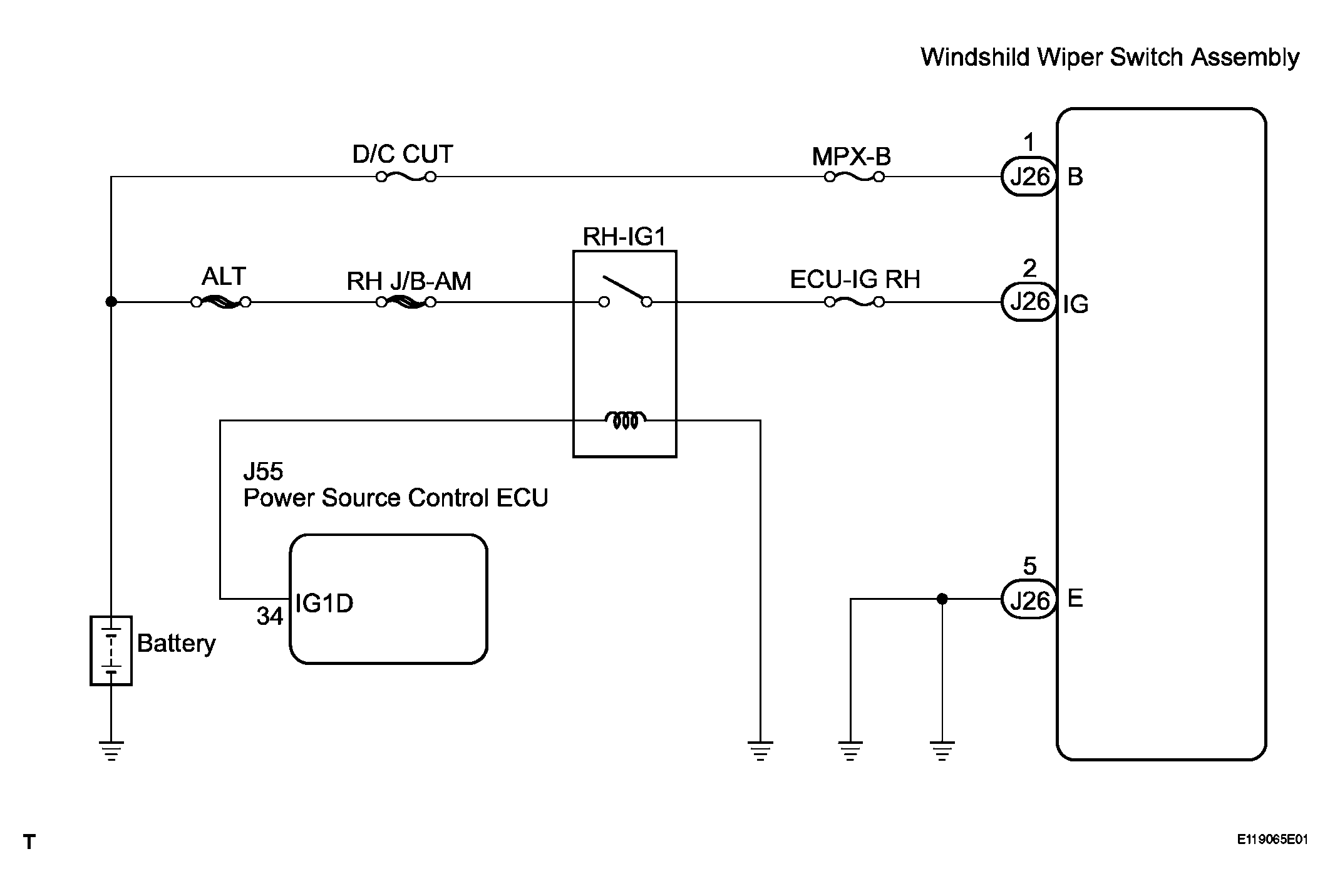

Fig 1: Identifying Wiper & Washer Switch Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Before starting the following procedure, check that multiplex communication system (MPX) DTCs are not output (See MULTIPLEX COMMUNICATION SYSTEM ).
