Rain Sensor Circuit: Wiring Diagram

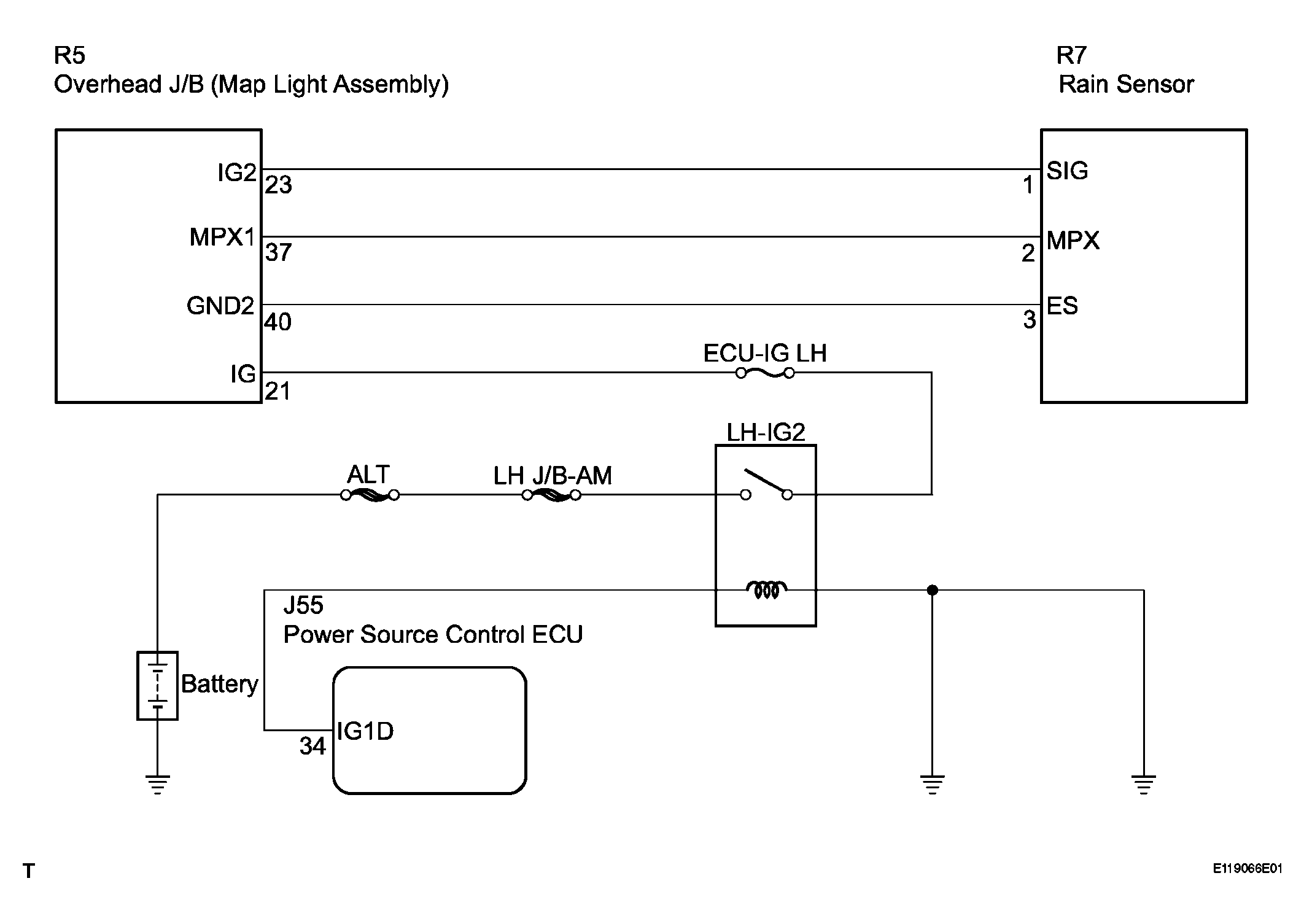

Fig 1: Identifying Rain Sensor Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Before starting the following procedure, check that multiplex communication system (MPX) DTCs are not output (See MULTIPLEX COMMUNICATION SYSTEM ).
• Before starting the following procedure, verify that the rain sensor tape is correctly installed.
