Front Wiper Motor Circuit: Wiring Diagram

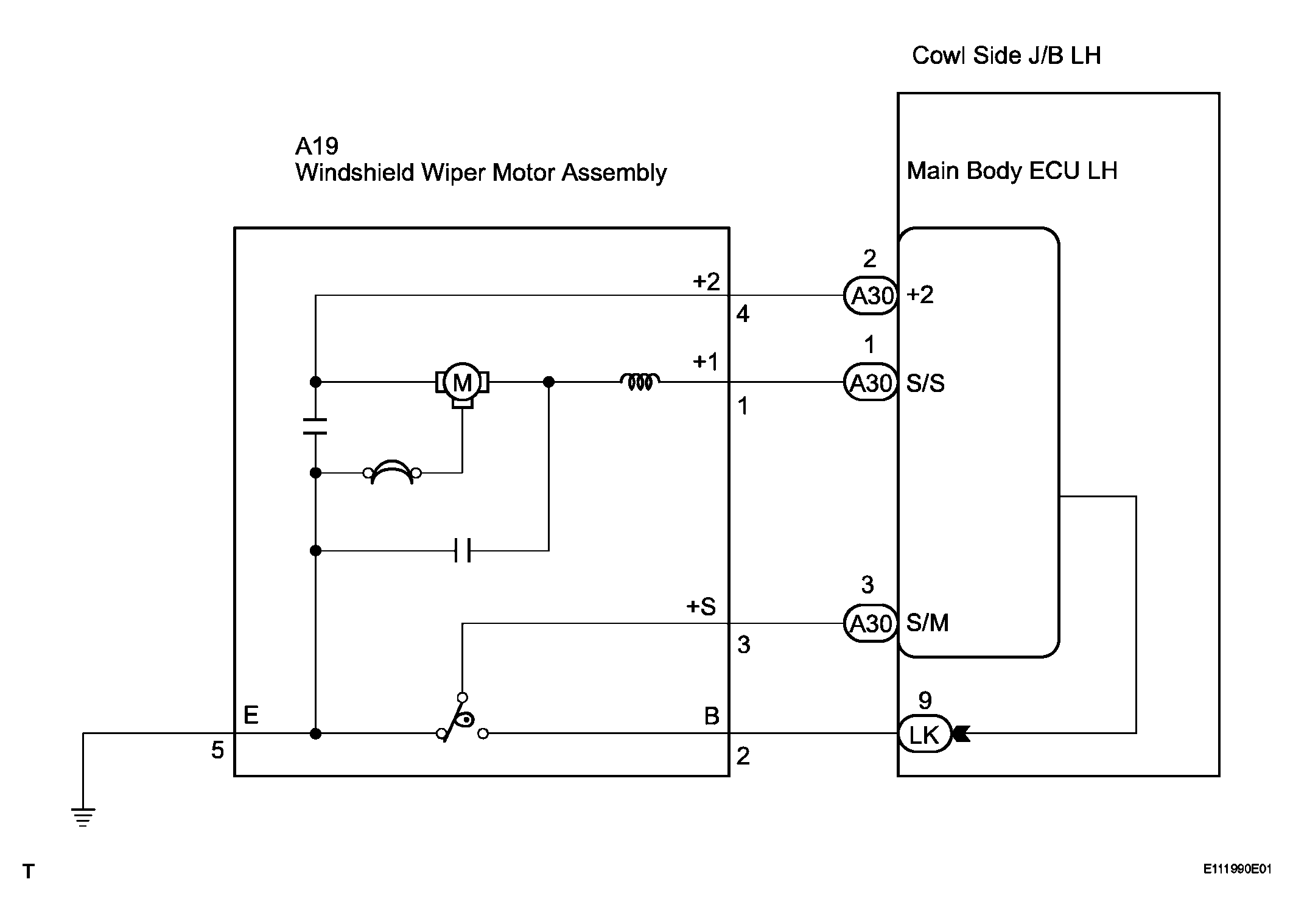

Fig 1: Identifying Front Wiper Motor Wiring Diagram

G04049683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
