On-Vehicle Inspection

INSPECT WASHER NOZZLE
1. With the engine running, check the position that the washer fluid hits the windshield.
Standard:

Washer fluid hits the windshield in the areas shown in Fig 1 .

NOTE: If the result is not as specified, replace the washer nozzle.

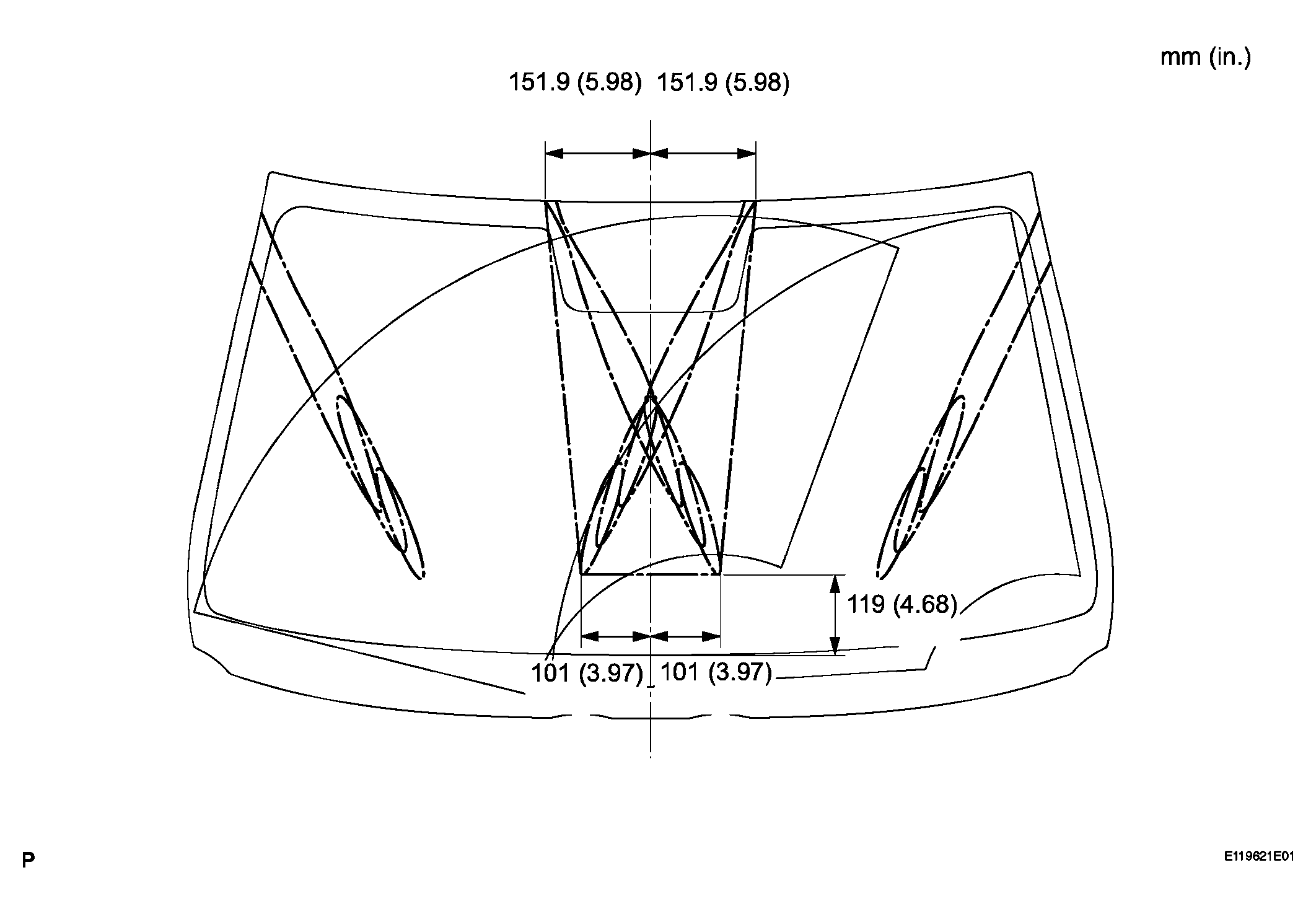

Fig 1: Identifying Washer Nozzle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
