Washer Nozzle: Adjustment

ADJUST WASHER NOZZLE
1. Using a screwdriver, disengage the 2 claws and separate the washer nozzle.

  Fig 1: Separating Washer Nozzle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Be careful not to damage the windshield.
2. Remove the washer nozzle from the washer hose.

  Fig 2: Removing Washer Nozzle From Washer Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Washer nozzles cannot be reused.
3. Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle with the selected one.

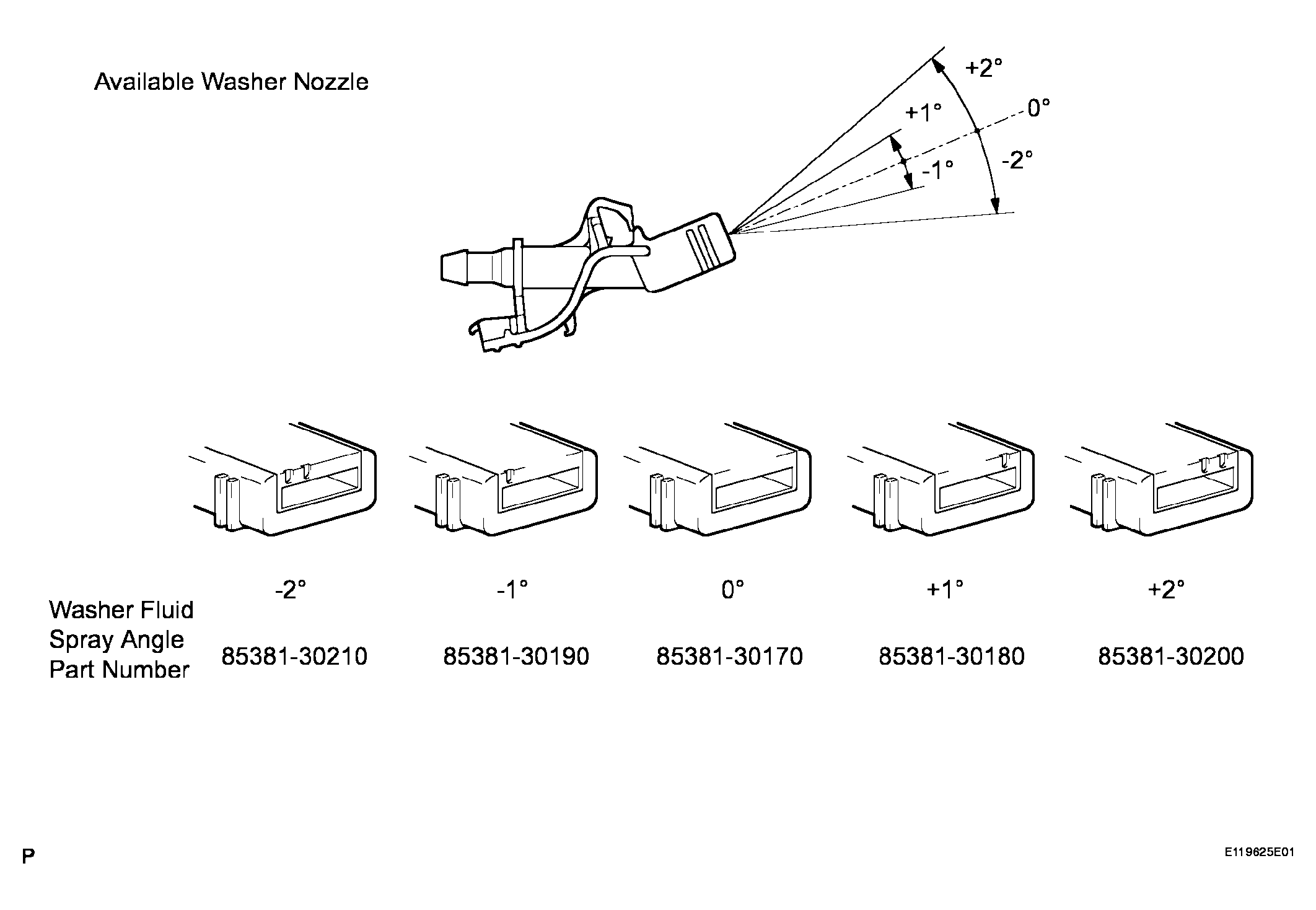

Fig 3: Identifying Available Washer Nozzle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
