Headlight Cleaner Actuator: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  2. REMOVE FRONT BUMPER ASSEMBLY (See Step 3 in  REMOVAL  )
  3. REMOVE HEADLIGHT CLEANER WASHER NOZZLE
    1. Extend the headlight cleaner washer nozzle.
    2. Remove the headlight cleaner washer nozzle.
    Fig 1: Identifying Headlight Cleaner Washer Nozzle
    G04049801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures for the RH side and the LH side.

  4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY
    1. Disconnect the headlight washer hose.
    2. Remove the bolt.
    3. Disengage the 2 claws and remove the headlight washer actuator sub-assembly.

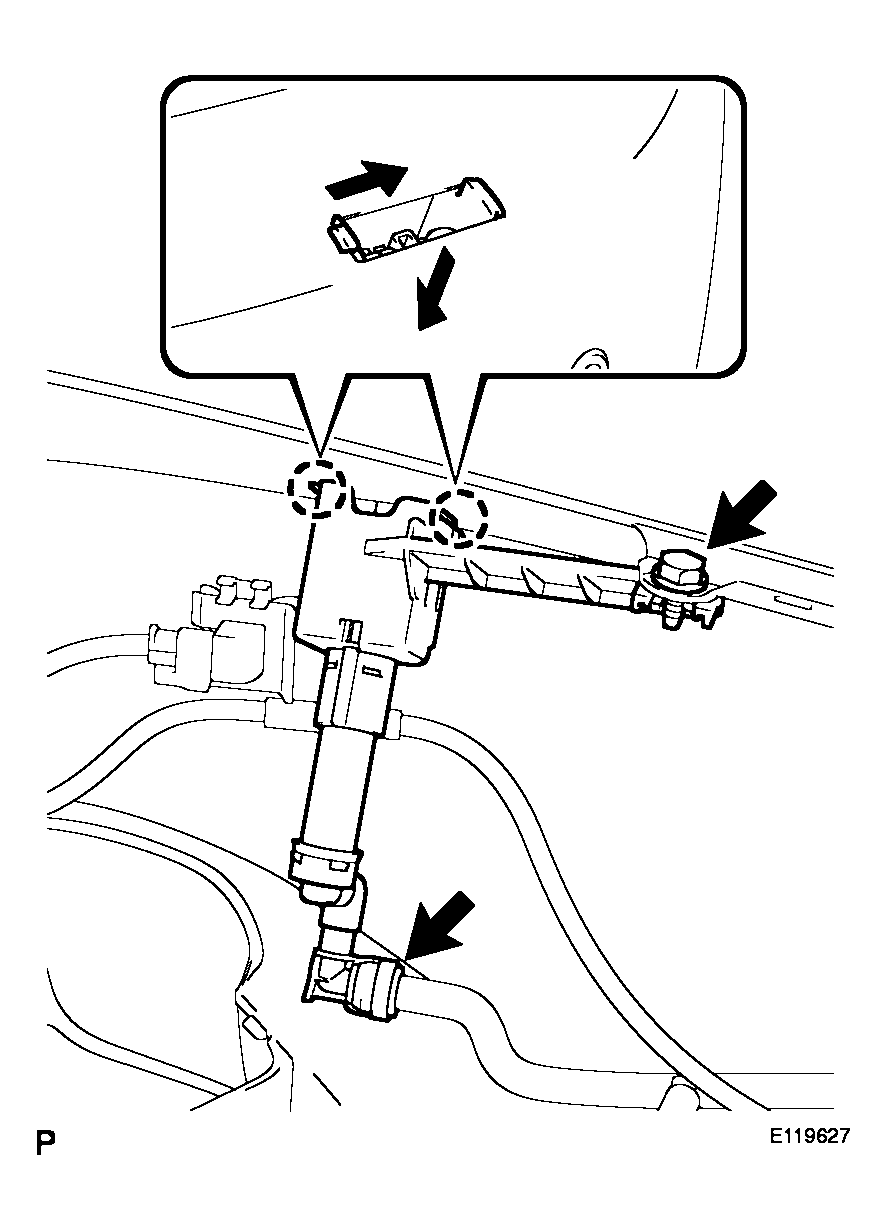

    Fig 2: Identifying Headlight Washer Actuator Sub-Assembly
    G04049802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Use the same procedures for the RH side and the LH side.
