Headlight Cleaner Actuator: Installation

1. Engage the 2 claws.
2. Install the headlight washer actuator sub-assembly with the bolt.
3. Connect the headlight washer hose.

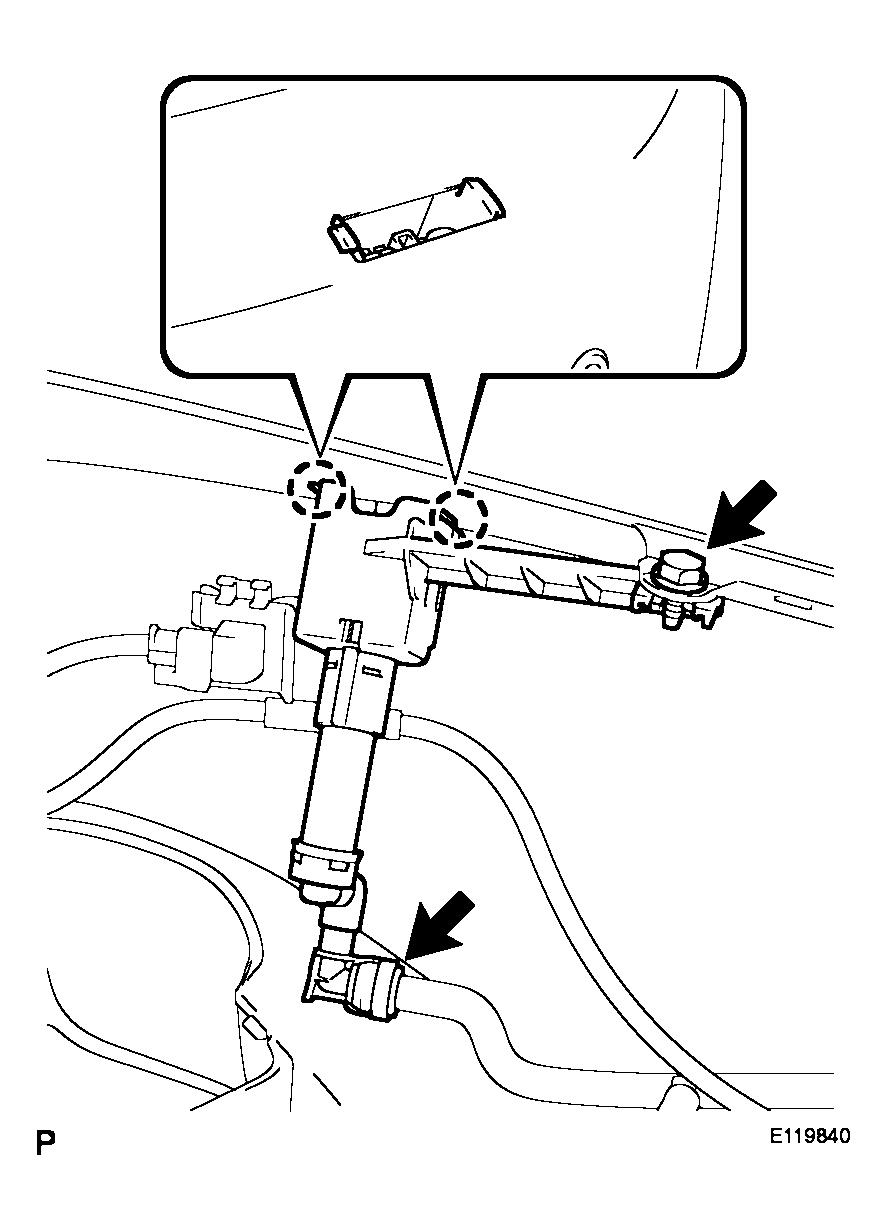

Fig 1: Identifying Headlight Washer Actuator Sub-Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and the LH side.

1. Install the headlight cleaner washer nozzle.

Fig 2: Identifying Headlight Cleaner Washer Nozzle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedures for the RH side and the LH side.
