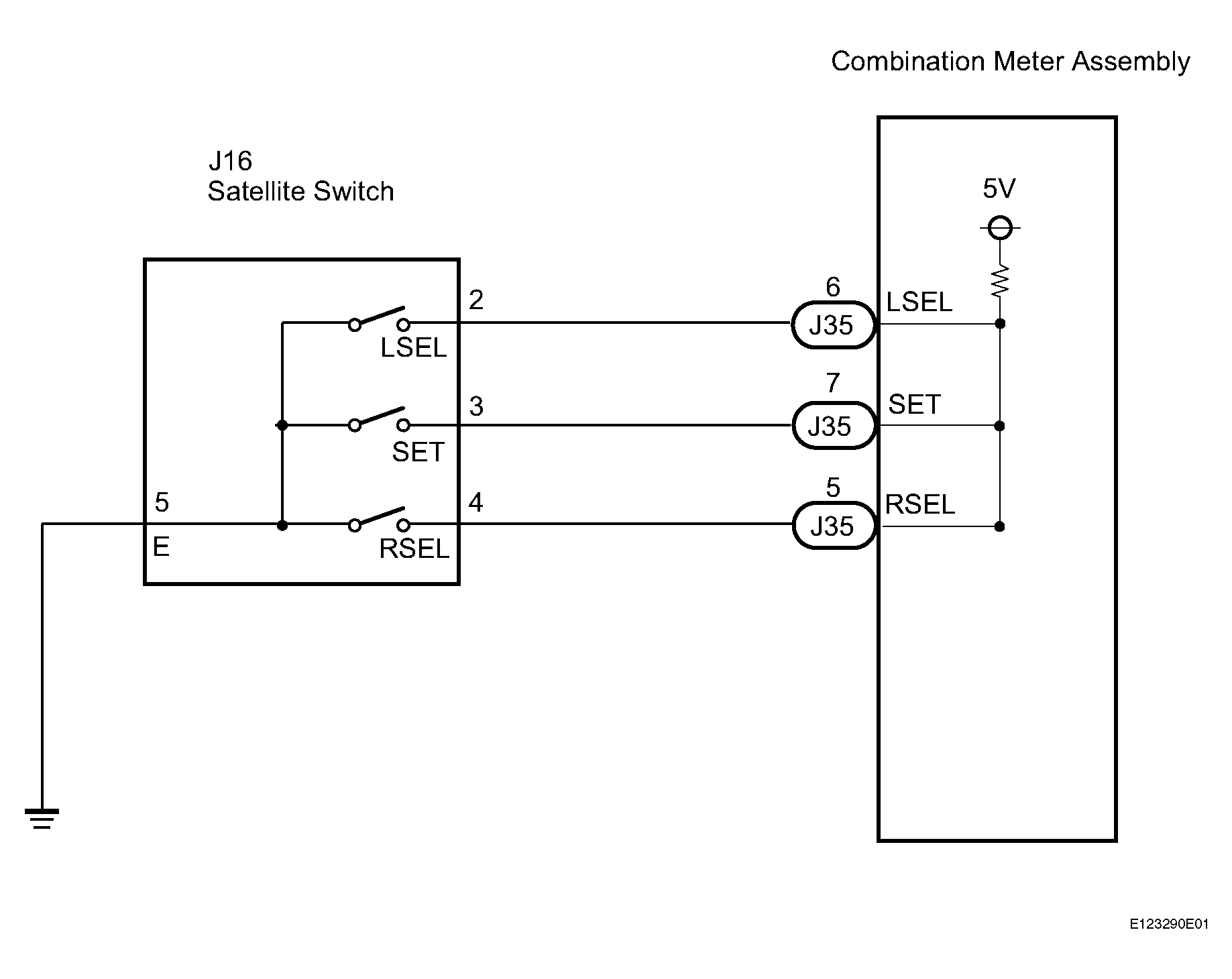

Satellite Switch Circuit: Wiring Diagram
- INSPECT SATELLITE SWITCH
- Disconnect the connector from the satellite switch.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition J16-2 (LSET) - J16-5 (E) Satellite switch LH is pressed Below 1 Ω J16-2 (LSET) - J16-5 (E) Satellite switch LH is not pressed 10 kΩ or higher J16-3 (SET) - J16-5 (E) Satellite switch ON/OFF is pressed Below 1 Ω J16-3 (SET) - J16-5 (E) Satellite switch ON/ OFF is not pressed 10 kΩ or higher J16-4 (RSET) - J16-5 (E) Satellite switch RH is pressed Below 1 Ω J16-4 (RSET) - J16-5 (E) Satellite switch RH is not pressed Below 1 Ω NG : REPLACE SATELLITE SWITCH
OK : Go To Next Step
- CHECK HARNESS AND CONNECTOR (COMBINATION METER - SATELLITE SWITCH)

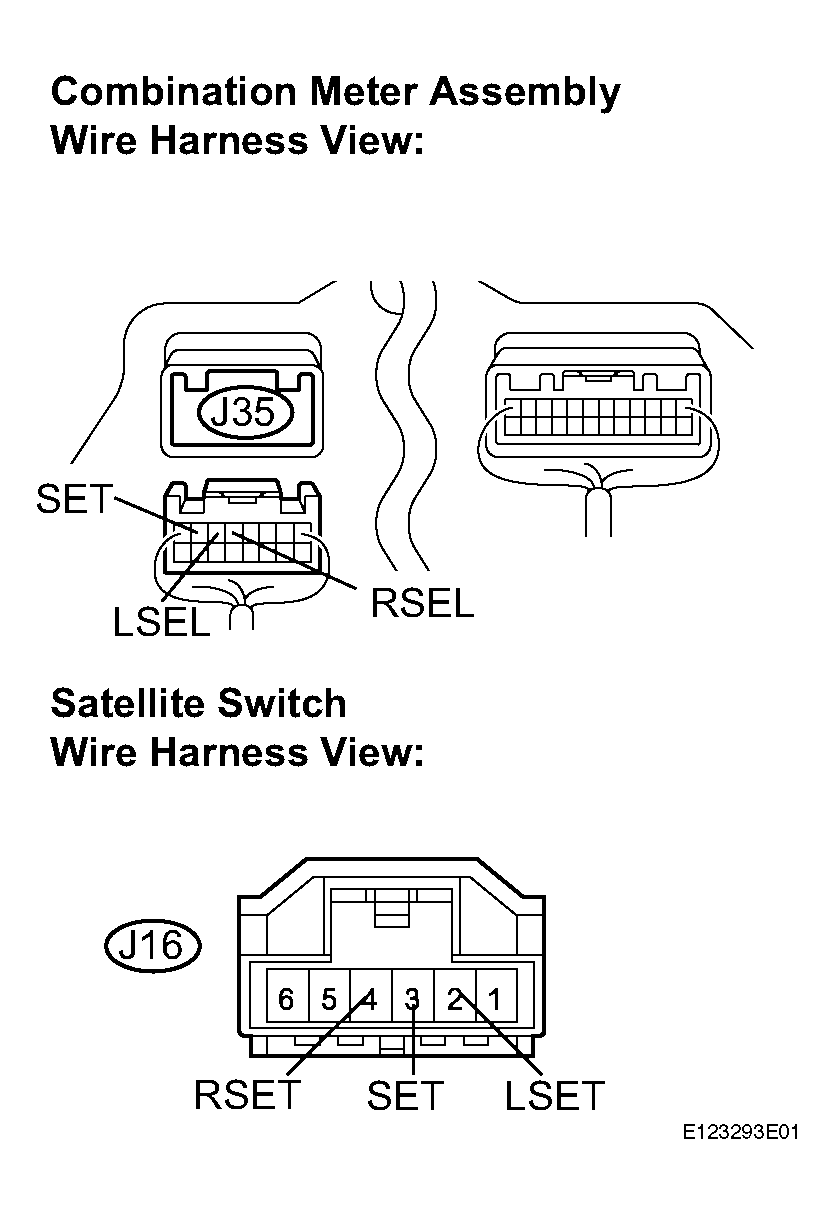

- Disconnect the J35 and J16 connectors.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition J35-5 (RSEL) - J16-4 (RSET) Always Below 1 Ω J35-6 (LSEL) - J16-2 (LSET) Always Below 1 Ω J35-7 (SEL) - J16-3 (SET) Always Below 1 Ω J16-2 (LSET) - Body ground Always 10 kΩ or higher J16-3 (SET) - Body ground Always 10 kΩ or higher J16-4 (RSET) - Body ground Always 10 kΩ or higher NG : REPAIR OR REPLACE HARNESS OR CONNECTOR
OK : REPLACE COMBINATION METER ASSEMBLY
