Parts Location

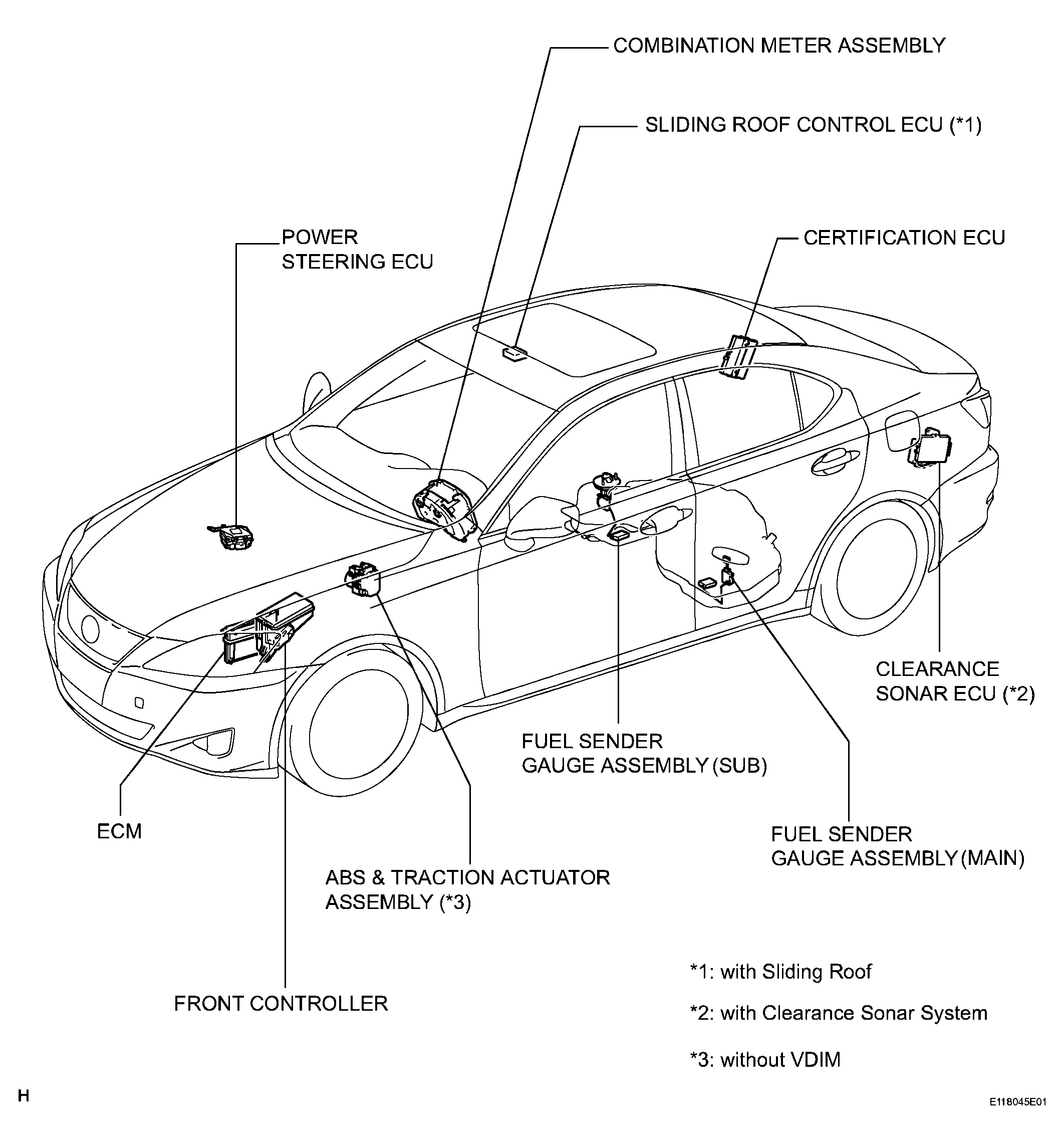

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 3)
G04049977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Meter / Gauge System Parts Location (2 Of 3)
G04049978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

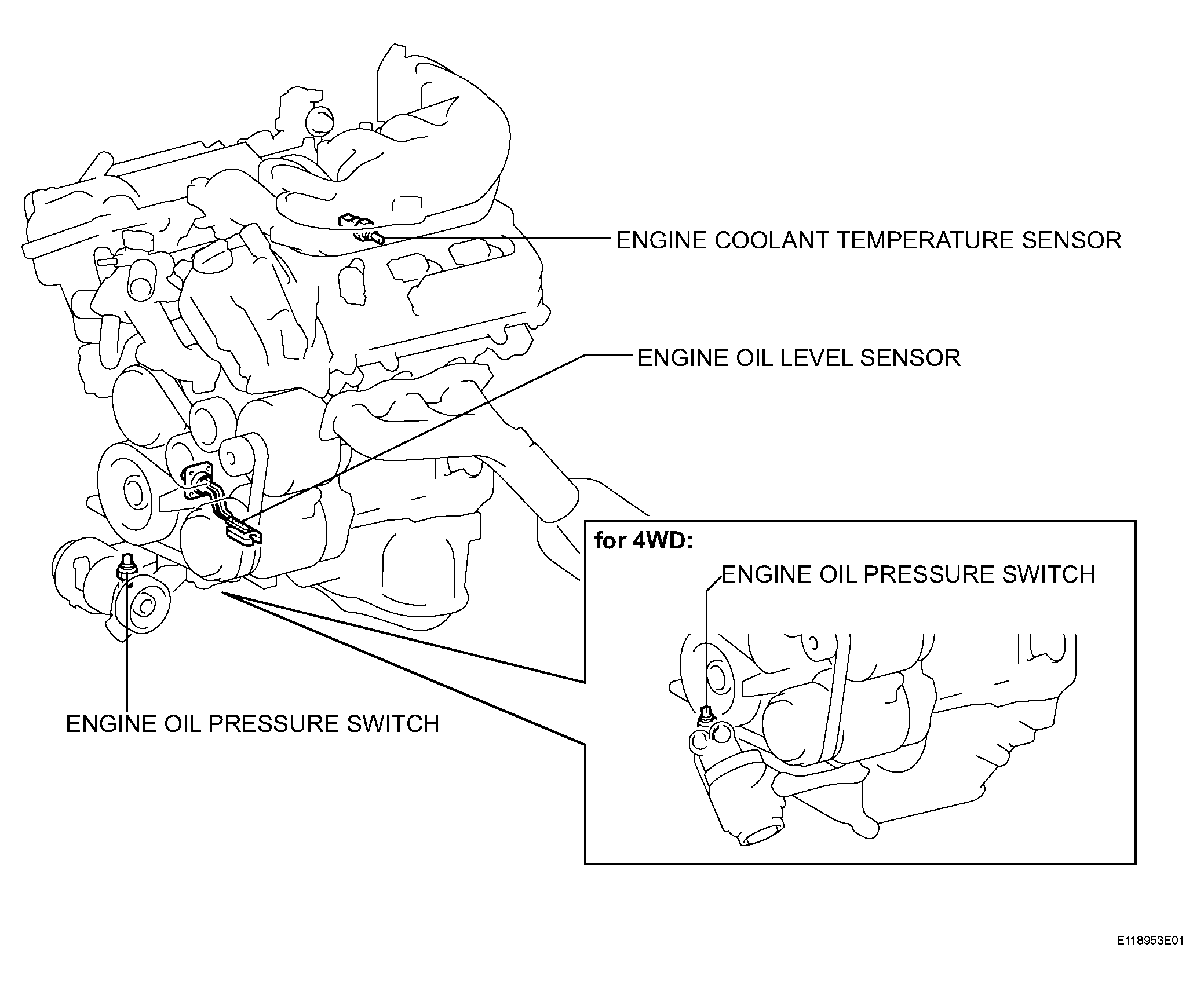

Fig 3: Identifying Meter / Gauge System Parts Location (3 Of 3)
G04049979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
