Fuel Sender Gauge Assembly: Inspection

1. Disconnect the fuel sender gauge connector.
2. Inspect the fuel sender gauge assembly (main).
   1. Remove the fuel sender gauge assembly (main).
   2. Check that the float moves smoothly between F and E.
   3. Measure the resistance between the terminals 2 (S) and 3 (FE) of connector according to the value(s) in the table below.

   Standard resistance:

   Main

   STANDARD RESISTANCE SPECIFICATION



   Float Level	Resistance (Ω)
   F	6.5 to 8.5
   Between E and F	6.5 to 242.6 (Gradually changes)
   E	237.6 to 242.6

3. Inspect the fuel sender gauge assembly (sub).
4. Remove the fuel sender gauge assembly (sub).
5. Check that the float moves smoothly between F and E.
6. Measure the resistance between the terminals 1 (FS) and 2 (E) according to the value(s) in the table below.

Standard resistance:

Sub

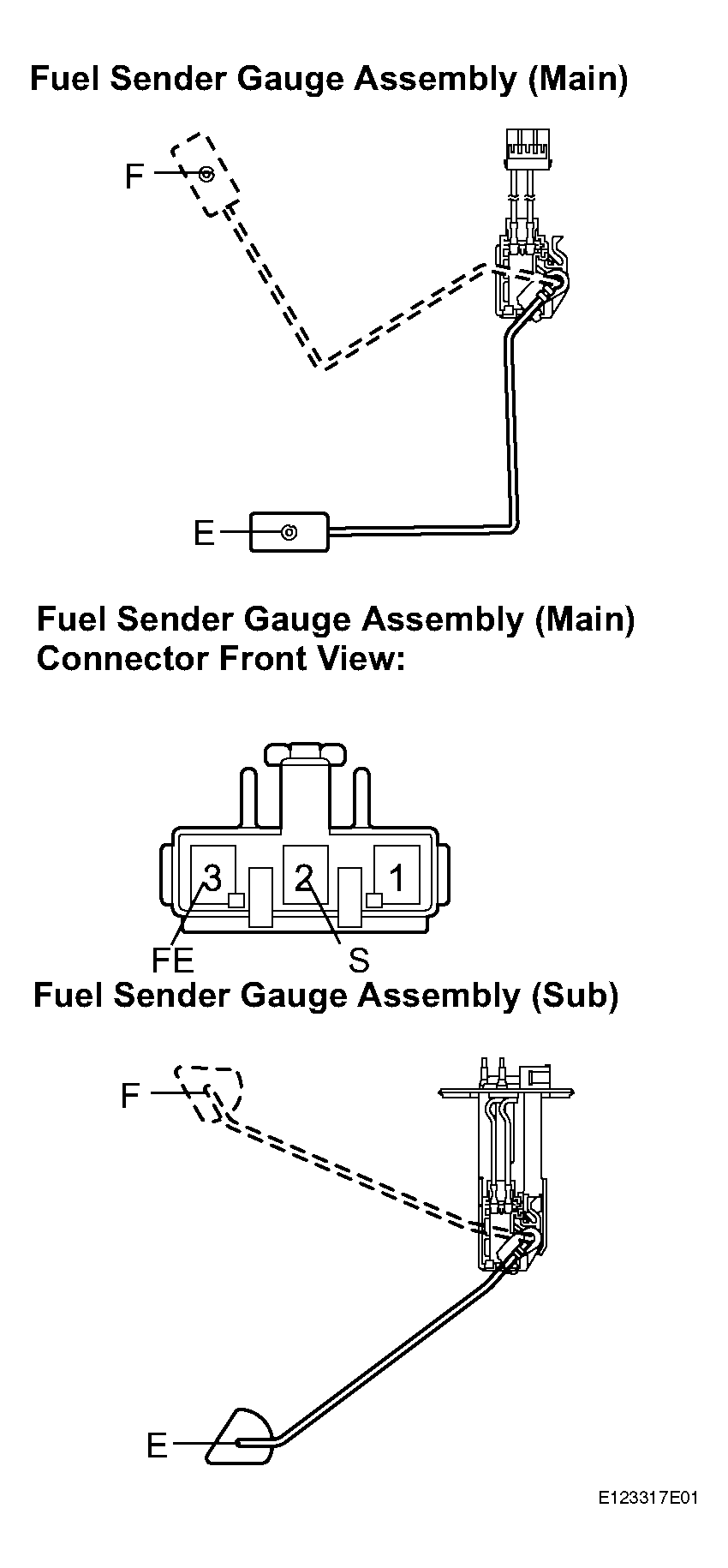

Fig 1: Checking Float Moves Smoothly Between F And E

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If the value is not as specified, replace the fuel sender gauge assembly.
