Fuel Sender Gauge Assembly: Components

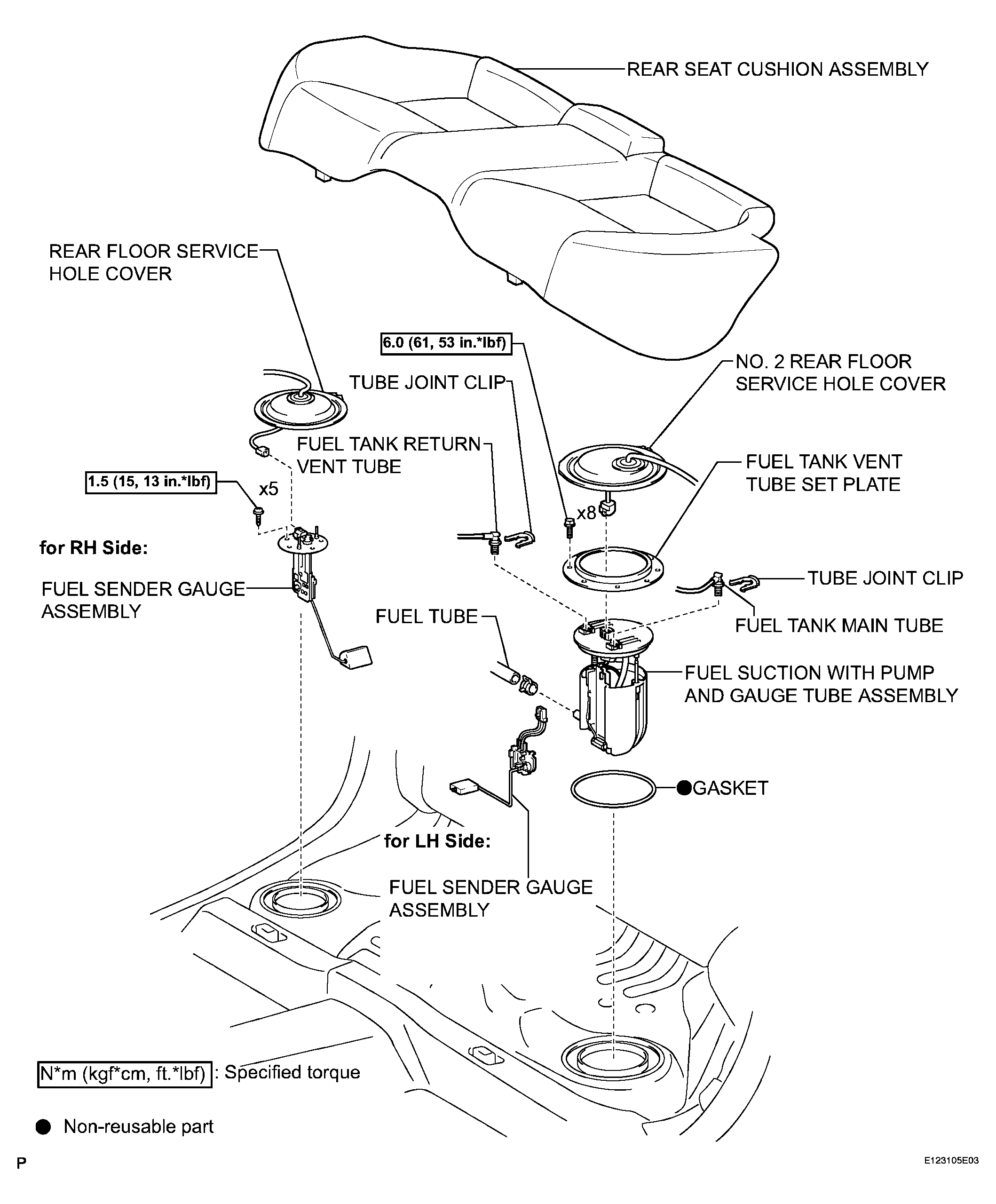

Fig 1: Fuel Sender Gauge Assembly Replacement Components With Torque Specifications

G04050052

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
