No. 1 Clearance Warning Buzzer Circuit: Wiring Diagram

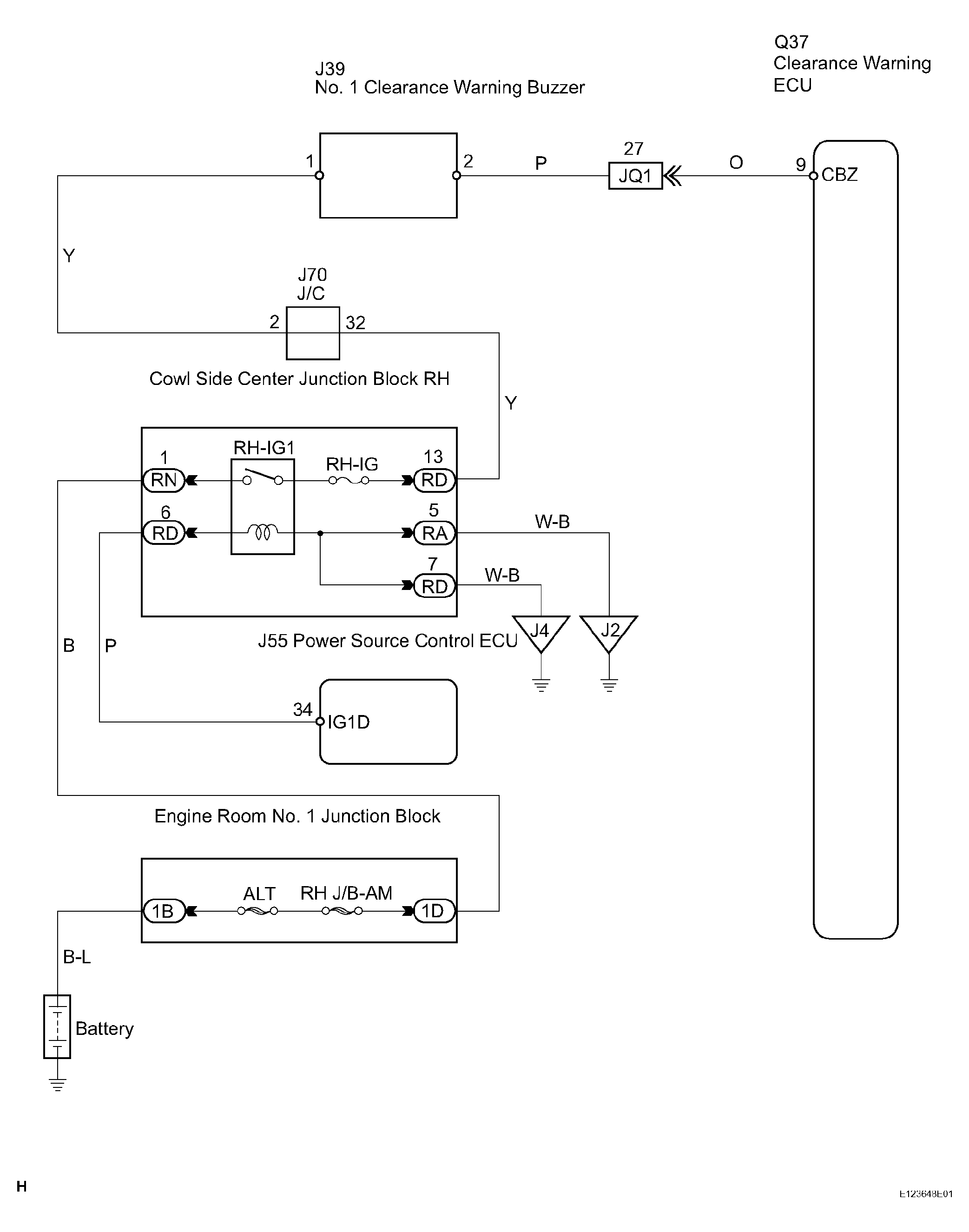

Fig 1: No. 1 Clearance Warning Buzzer Wiring Diagram

G04050599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
