DTC B2241 Rear Right Sensor Malfunction: Wiring Diagram

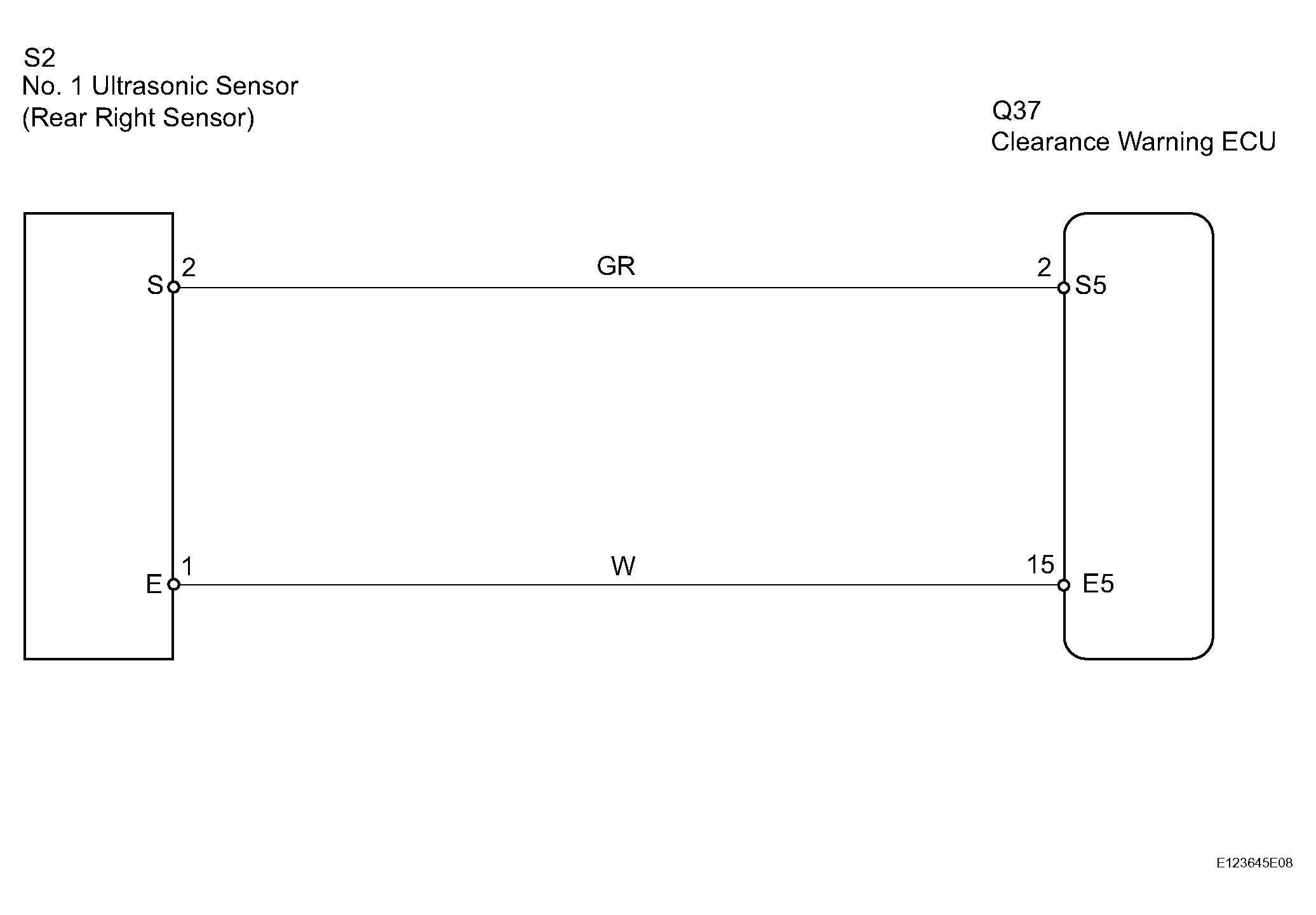

Fig 1: Rear Right Sensor Wiring Diagram

G04050595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
