W/ Master Cylinder Brake Booster ASSY: Components

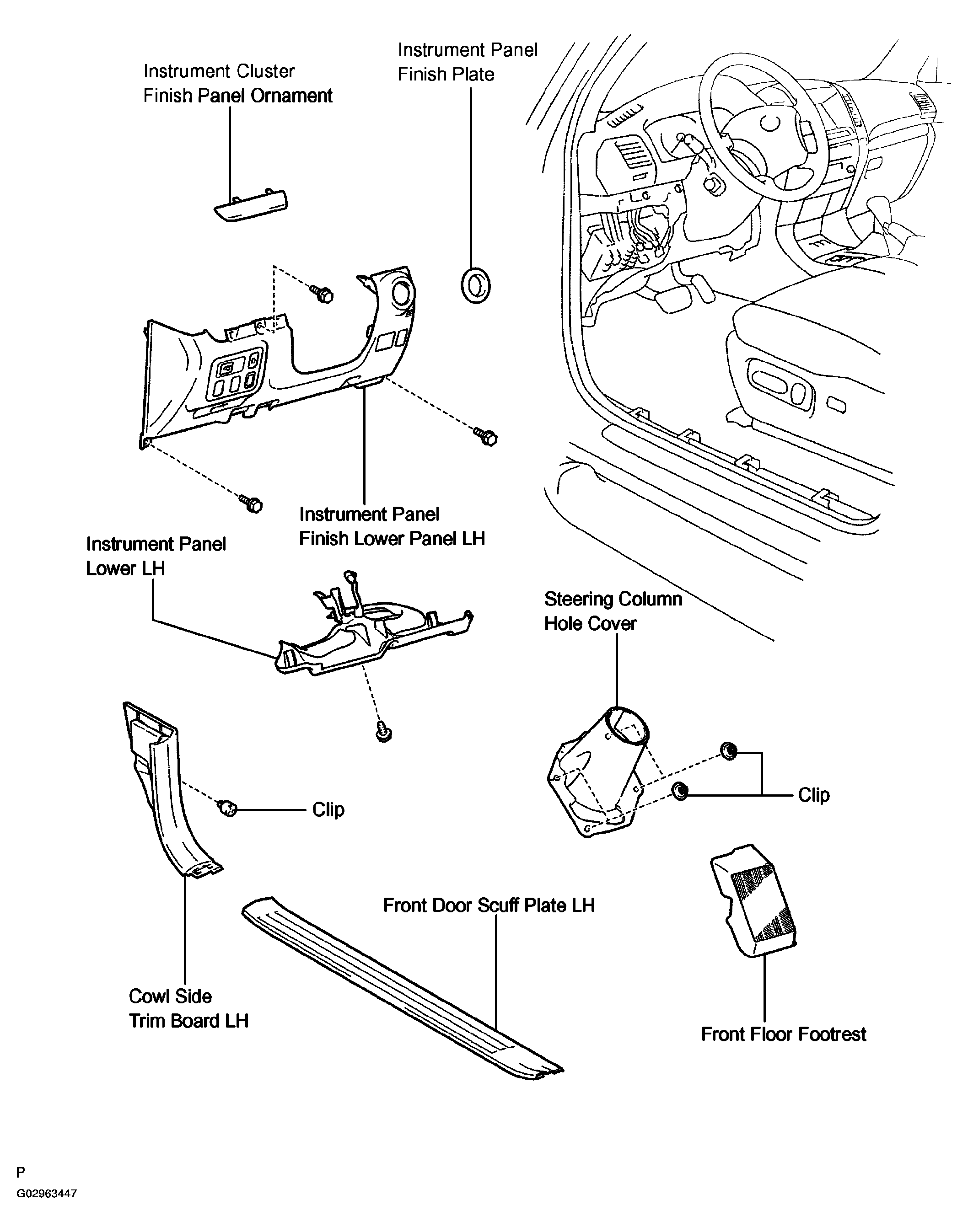

Fig 1: Identifying Master Cylinder Brake Booster Assy Components (1 Of 3)
G02963447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

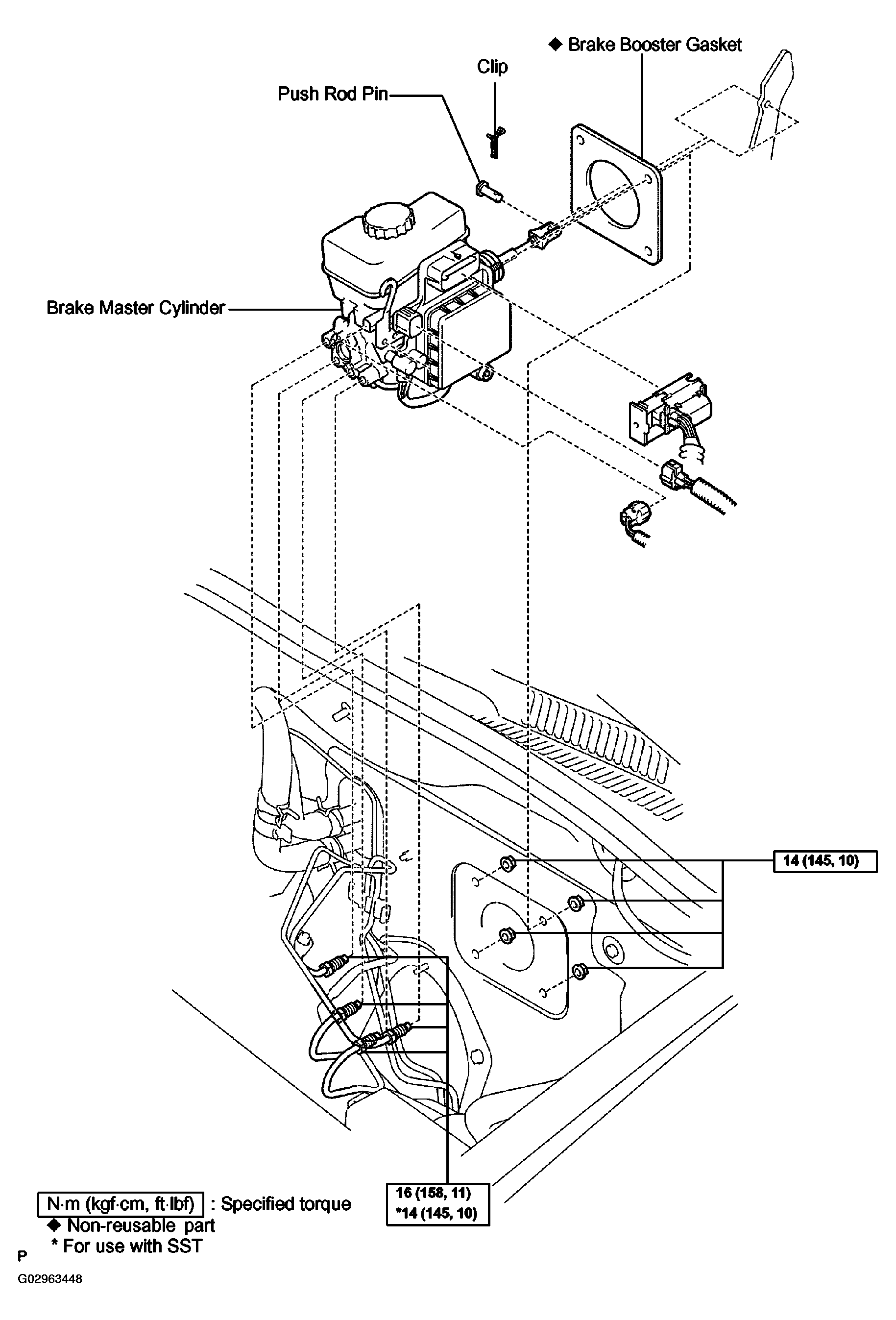

Fig 2: Identifying Master Cylinder Brake Booster Assy Components (2 Of 3)
G02963448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

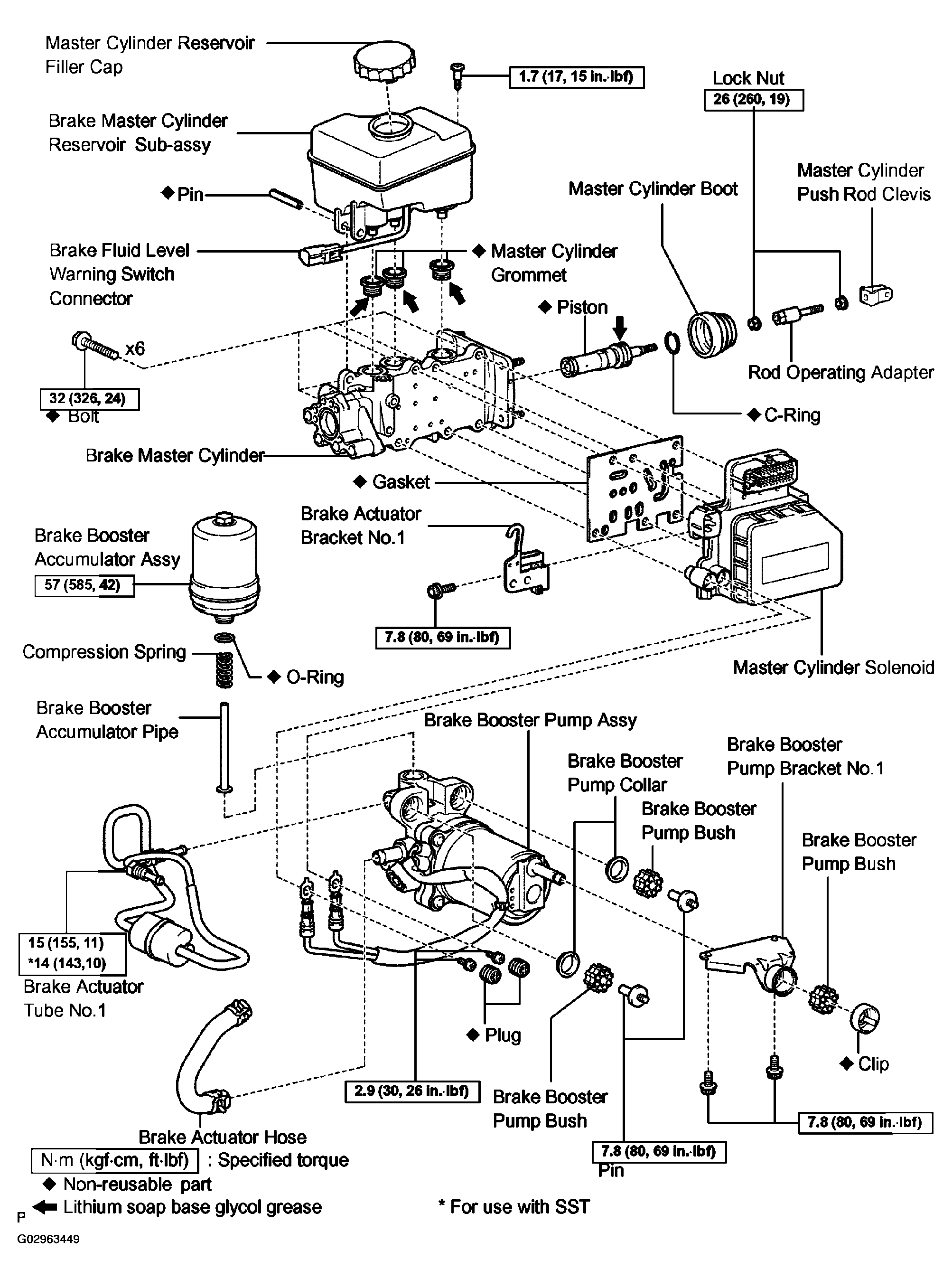

Fig 3: Identifying Master Cylinder Brake Booster Assy Components (3 Of 3)
G02963449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
