Rear Brake Pad, Brake Caliper & Brake Rotor: Components

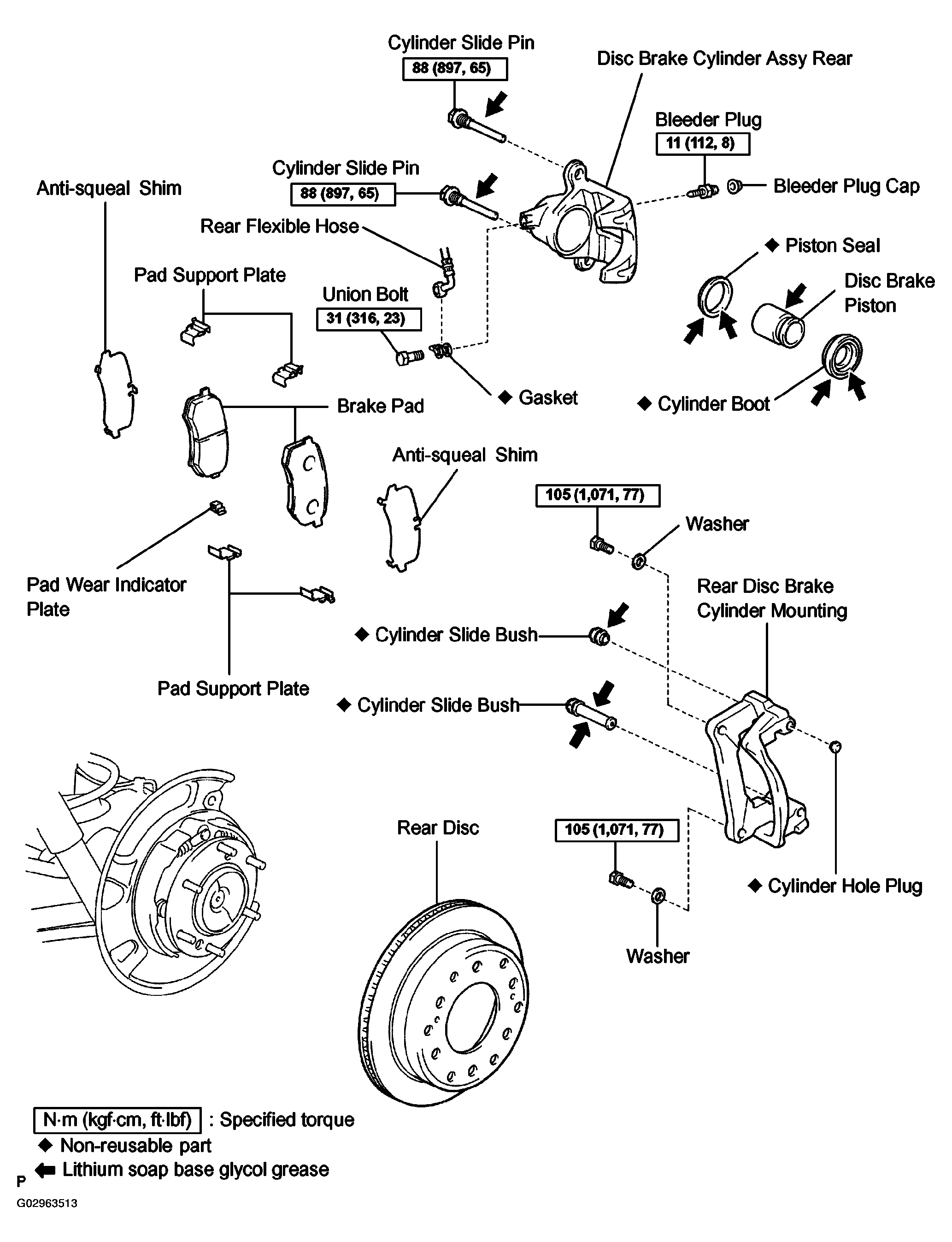

Fig 1: Identifying Rear Brake System Components

G02963513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
