Brake Pedal Support ASSY: Components

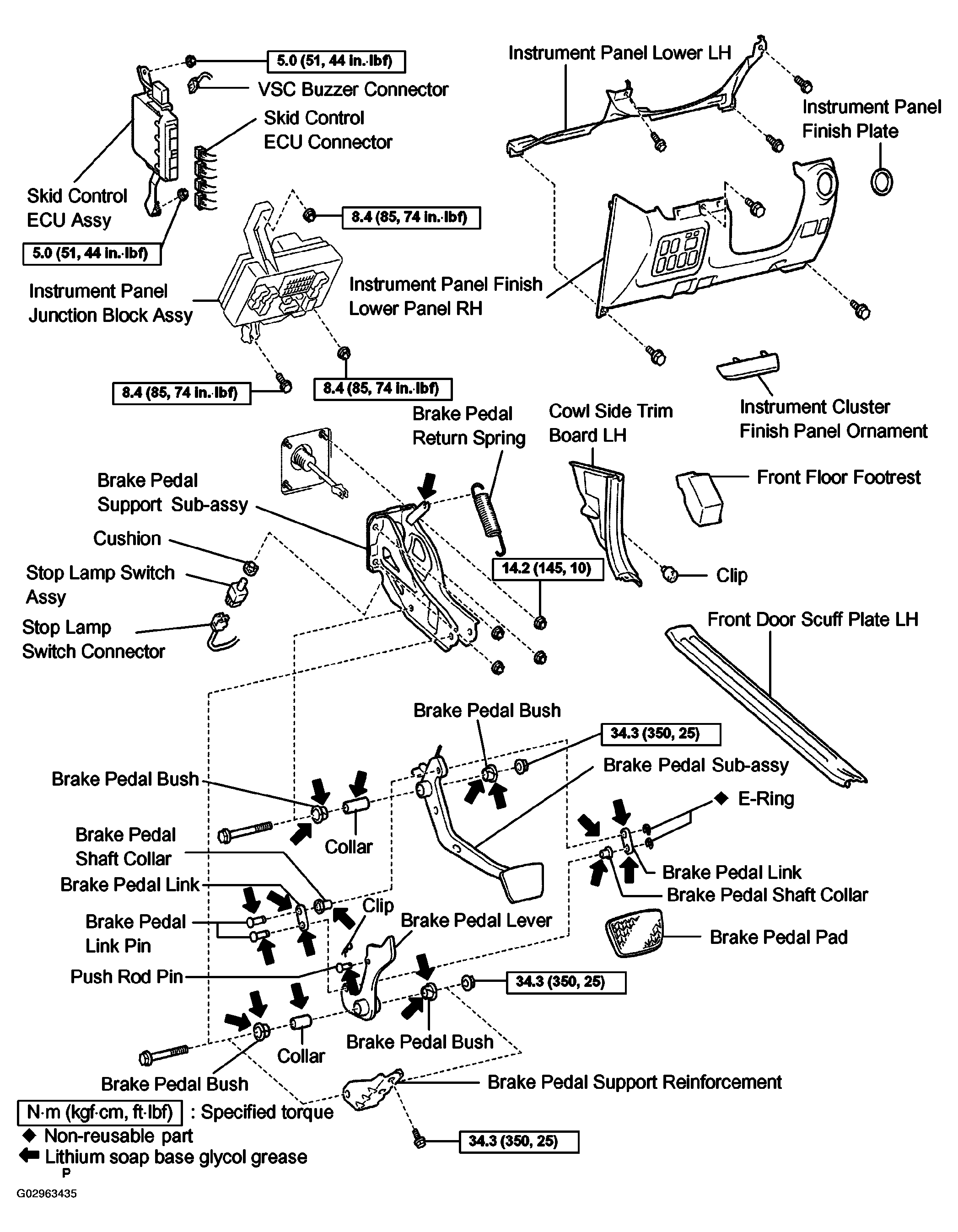

Fig 1: Identifying Component Location Of Brake Pedal Support Assembly

G02963435

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
