DTC P0010 Camshaft Position "A" Actuator Circuit (Bank 1); DTC P0020 Camshaft Position "A" Actuator Circuit (Bank 2): Wiring Diagram

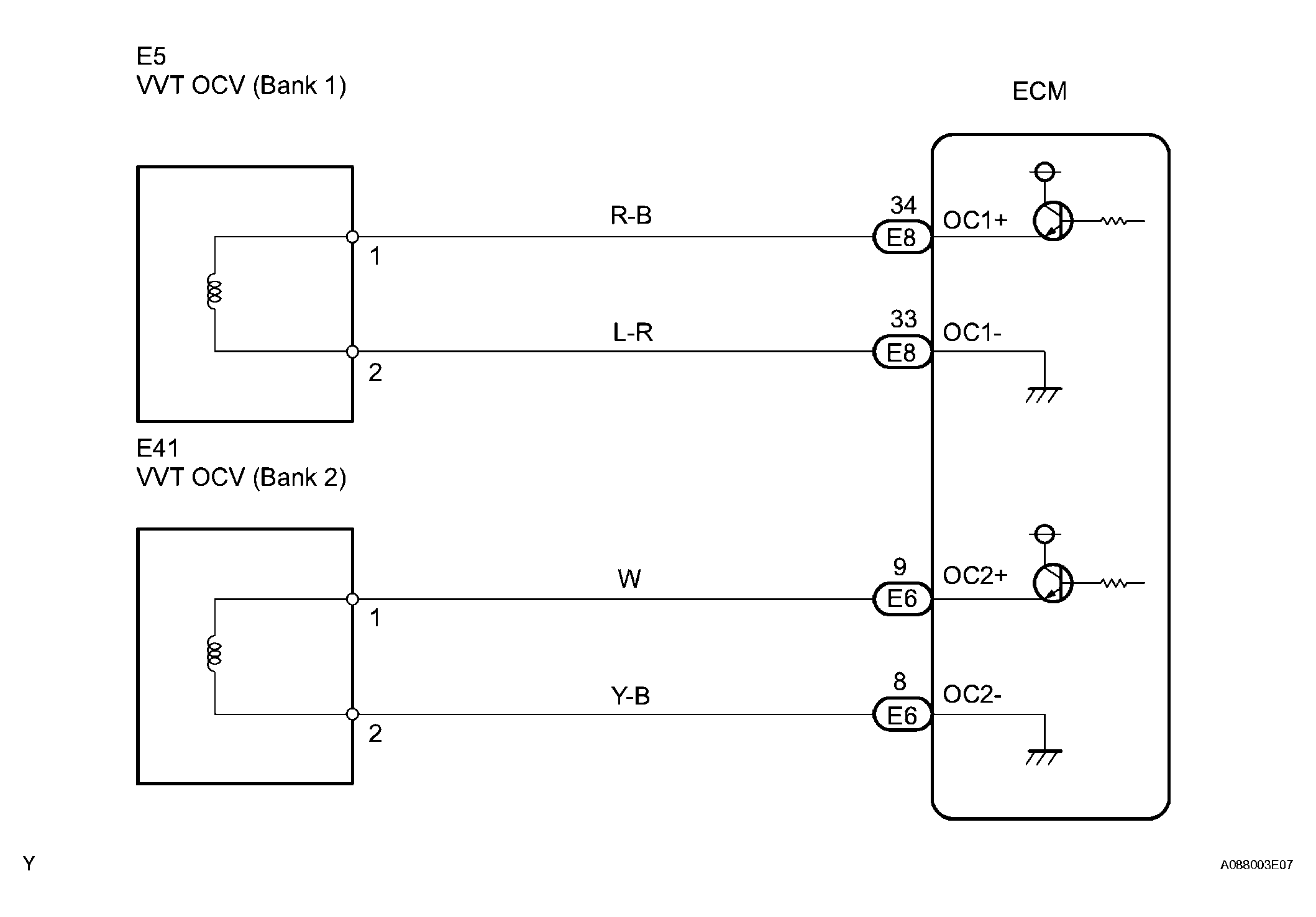

Fig 1: Identifying Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was LEAN or RICH, and other data from the time the malfunction occurred.
• If DTC P0010 is displayed, check the bank 1 VVT OCV.
• If DTC P0020 is displayed, check the bank 2 VVT OCV.
• Bank 1 includes No. 1 cylinder, but bank 2 does not. No. 1 cylinder is located in the front part of the engine, opposite the transmission.

1. PERFORM ACTIVE TEST (OCV OPERATION)
   1. Connect the intelligent tester to the CAN VIM. Then connect the CAN VIM to the DLC3.
   2. Start the engine and warm it up.
   3. Turn the engine switch on (IG) and turn the tester ON.
   4. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / VVT CTRL B1 (VVT CTRL B2).
   5. Operate the OCV and check the engine condition at idling.

      OK

      TESTER SPECIFIED CONDITION CHART



      Tester Operation	Specified Condition
      OCV is OFF	Normal engine RPM
      OCV is ON	Rough idle or engine stall

   OK : CHECK FOR INTERMITTENT PROBLEMS

   NG : GO TO NEXT STEP.

2. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (OPERATION)
   1. Disconnect the E5 or E41 OCV connector.
   2. Apply battery voltage to the terminals of the OCV.
   3. Check the engine speed.
      Fig 2: Applying Battery Voltage To Terminals Of OCV

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:

      Rough idle or engine stalled.

   NG : REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

   OK : GO TO NEXT STEP.

3. CHECK ECM (OCV SIGNAL)
   1. While idling the engine, check the waveform of the ECM connector using an oscilloscope.

      OK

      TESTER SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      E8-34 (OC1+) - E8-33 (OC1-)	Correct waveform is as shown
      E6-9 (OC2+) - E6-8 (OC2-)	Correct waveform is as shown

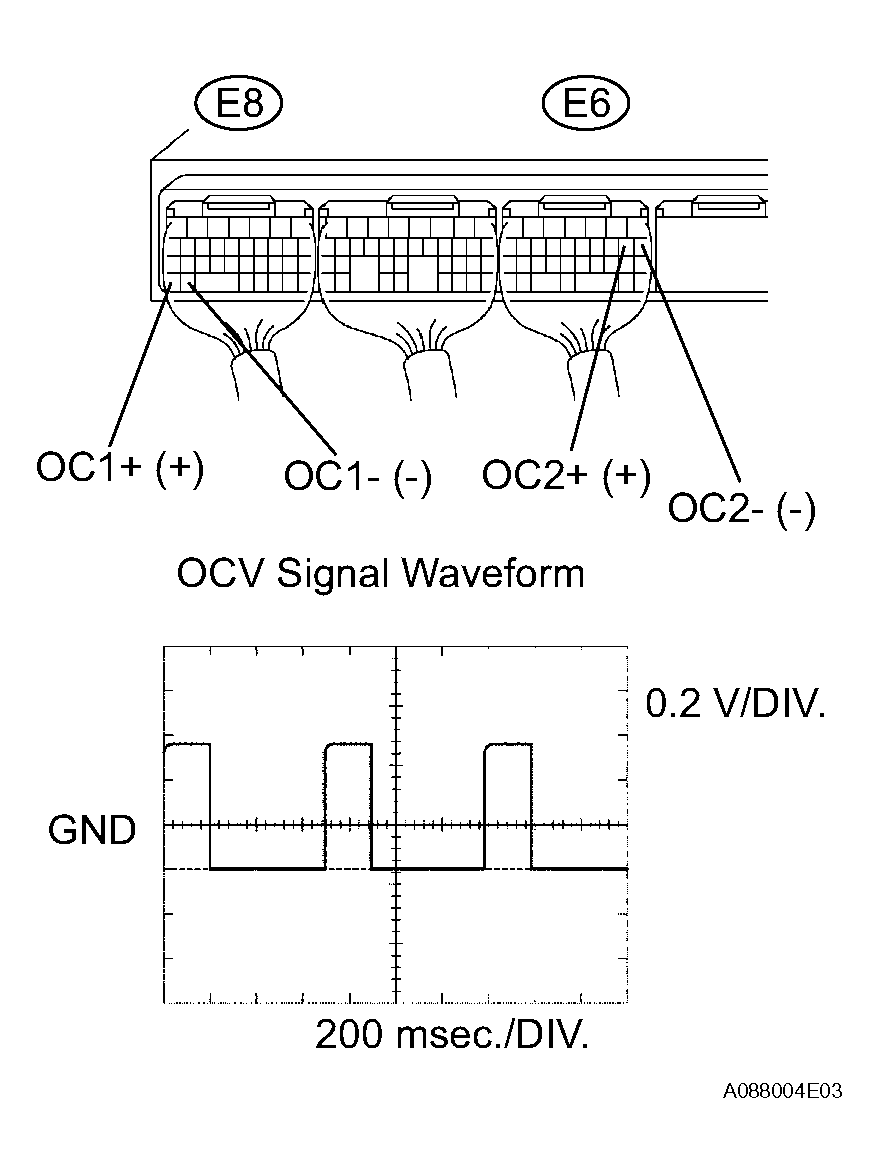

      Fig 3: Identifying ECM

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG : REPLACE ECM

   OK : GO TO NEXT STEP.

4. CHECK WIRE HARNESS (OCV - ECM)
   1. Disconnect the E5 and E41 OCV connectors.
   2. Disconnect the E6 and E8 ECM connectors.
   3. Measure the resistance of the wire harness side connectors.

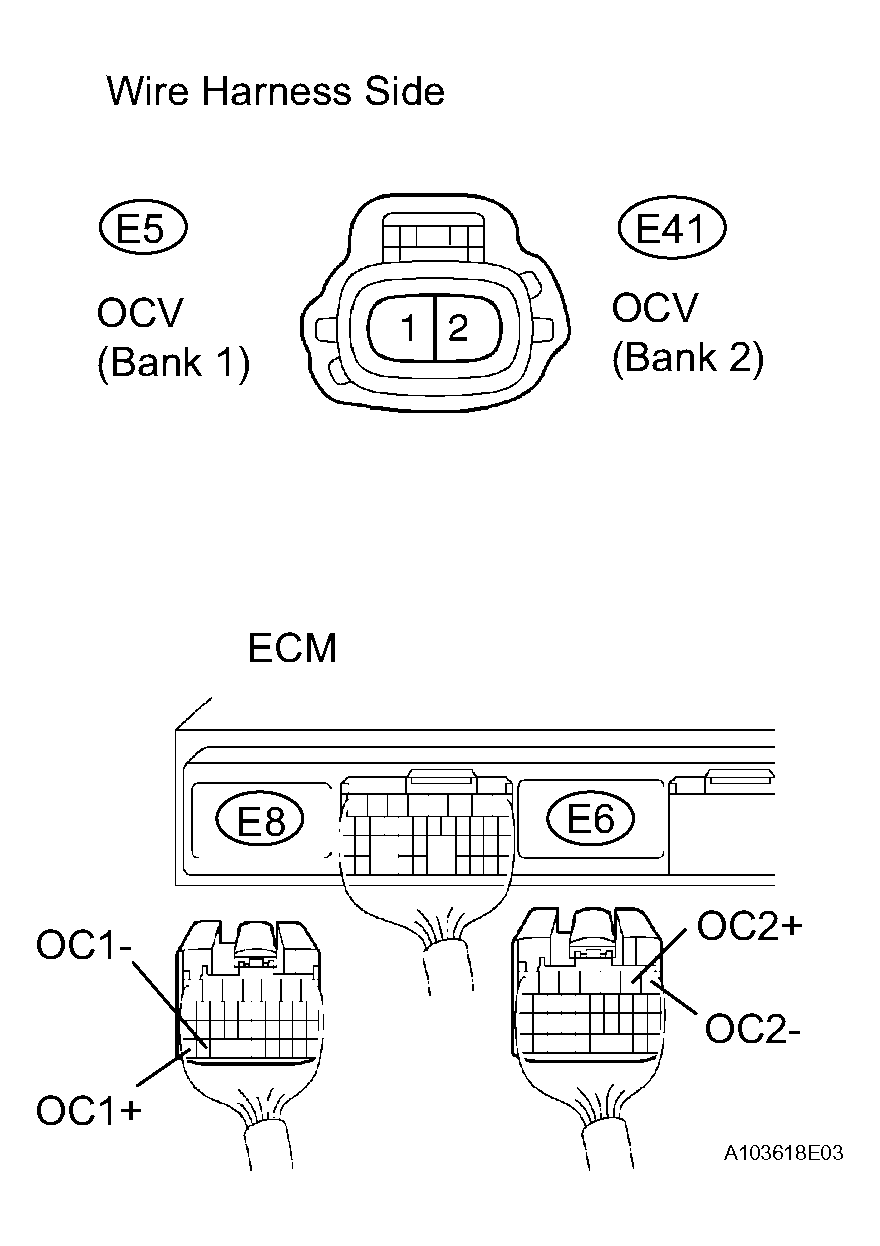

      Fig 4: Measuring Resistance Of Wire Harness Side Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      TESTER SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      E5-1 - E8-34 (OC1+)	Below 1 Ω
      E5-2 - E8-33 (OC1-)	Below 1 Ω
      E41-1 - E6-9 (OC2+)	Below 1 Ω
      E41-2 - E6-8 (OC2-)	Below 1 Ω
      E5-1 or E8-34 (OC1+) - Body ground	10 kΩ or higher
      E5-2 or E8-33 (OC1-) - Body ground	10 kΩ or higher
      E41-1 or E6-9 (OC2+) - Body ground	10 kΩ or higher
      E41-2 or E6-8 (OC2-) - Body ground	10 kΩ or higher

   NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

   OK : CHECK FOR INTERMITTENT PROBLEMS
