Driver Side Knee Airbag Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
  2. REMOVE FRONT DOOR SCUFF PLATE (See  REMOVAL  )
  3. REMOVE FRONT DOOR OPENING TRIM COVER (See  REMOVAL  )
  4. REMOVE CONSOLE UPPER PANEL GARNISH FRONT (See  REMOVAL  )
  5. REMOVE FRONT ASH RECEPTACLE ASSEMBLY (See  REMOVAL  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL END (See  REMOVAL  )
  7. REMOVE INSTRUMENT SIDE PANEL (See  REMOVAL  )
  8. REMOVE INSTRUMENT PANEL UNDER NO.1 COVER SUB-ASSEMBLY (See  REMOVAL  )
  9. REMOVE INSTRUMENT PANEL SAFETY NO.1 PAD SUB-ASSEMBLY (See  REMOVAL  )
  10. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY
    1. Remove the 4 bolts and driver side knee airbag assembly.
    2. Disconnect the connector.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

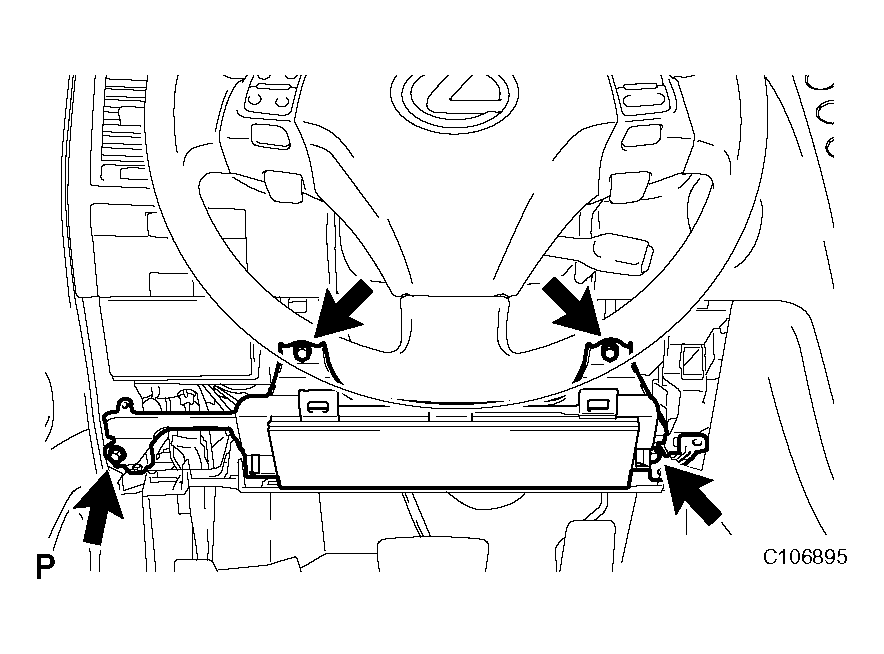

      Fig 1: Driver Side Knee Airbag Assembly With Torque Specifications
      G04021154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
