Valve Body Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
DRAIN AUTOMATIC TRANSMISSION FLUID (see 4 )
REMOVE EXHAUST PIPE NO.1 SUPPORT BRACKET SUB-ASSEMBLY (see 11 )
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY (see 9 )
REMOVE VALVE BODY OIL STRAINER ASSEMBLY (see 10 )
DISCONNECT TRANSMISSION WIRE (see 6 )
REMOVE TRANSMISSION VALVE BODY ASSEMBLY
1. Remove the 20 bolts and valve body.

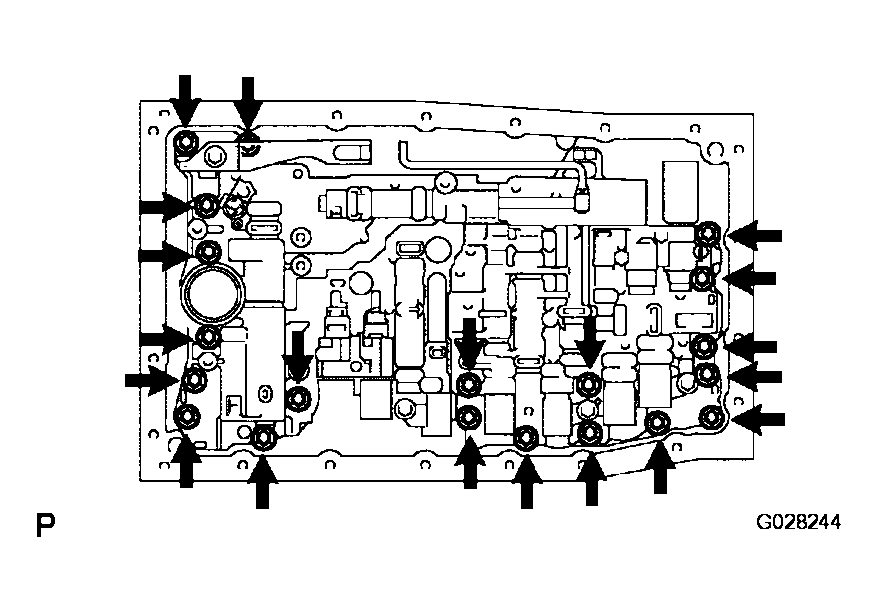

  Fig 1: Identifying Valve Body Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the lever pin from the manual valve.
  NOTE:
  - Do not remove the check ball and each piston.
  - Cover the valve body with a plastic bag, etc. to prevent dust or trash from intruding.

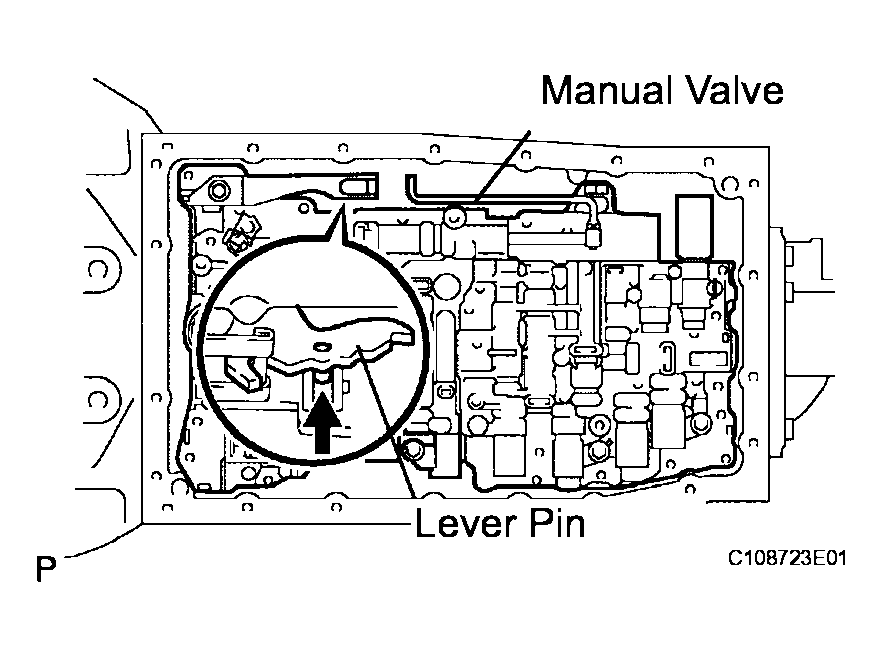

    Fig 2: Separating Lever Pin From Manual Valve
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the check ball body and spring.
  NOTE: Do not drop the check ball body and spring.

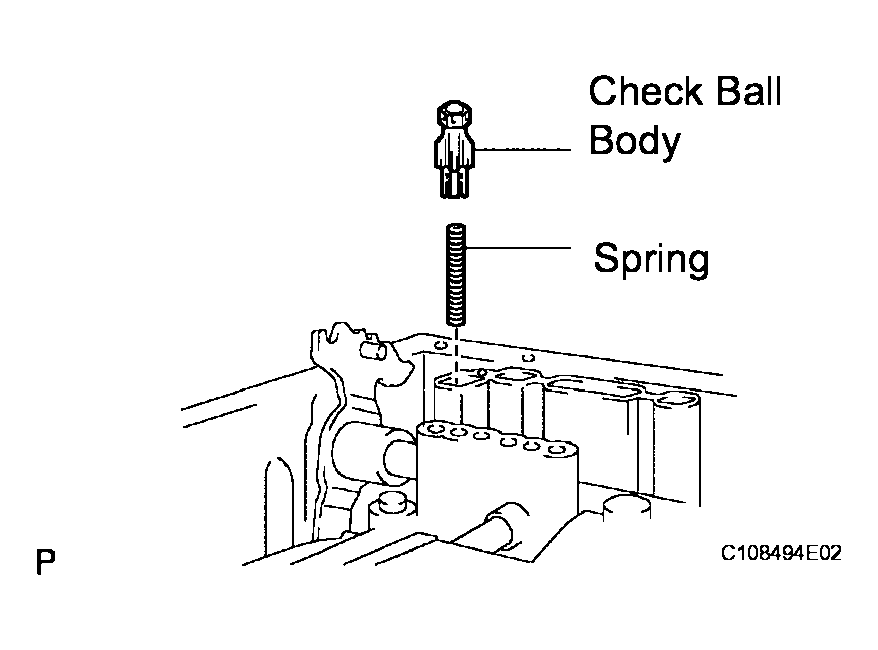

  Fig 3: Identifying Check Ball Body And Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
