Turn Signal and Hazard Warning Light

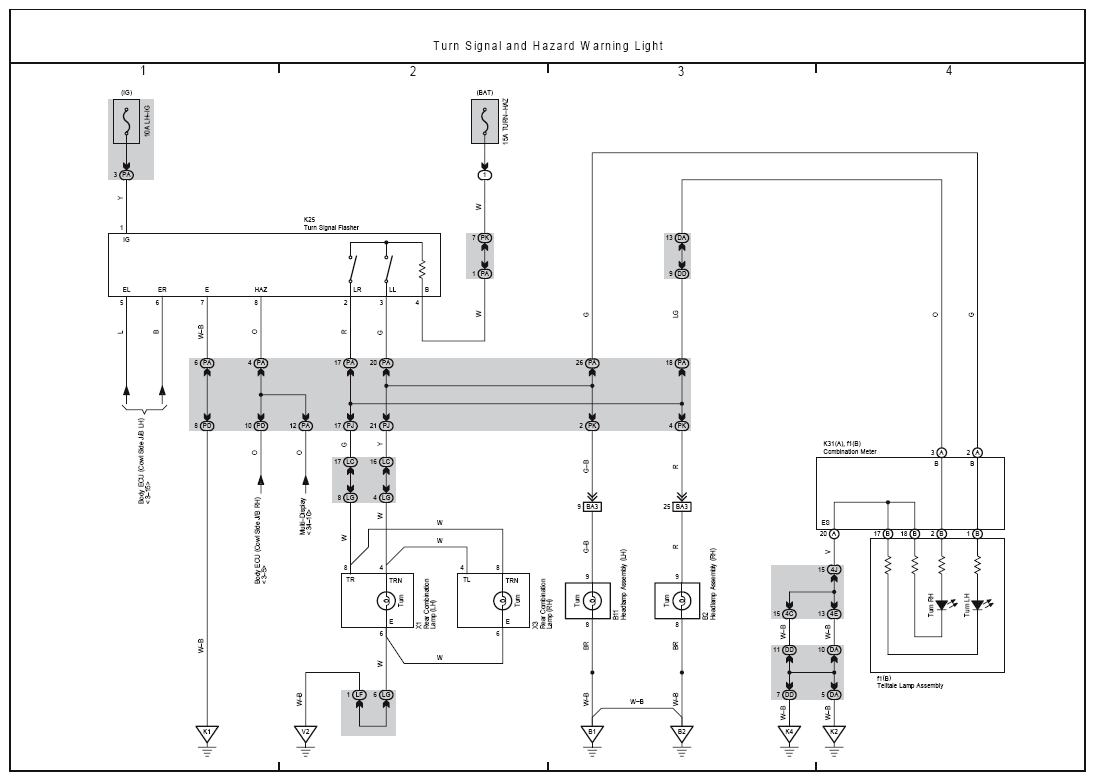

Fig 1: Turn Signal And Hazard Warning Light Wiring Diagram

G08911225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
