Tire Pressure Warning System 17 GS 430/GS 300

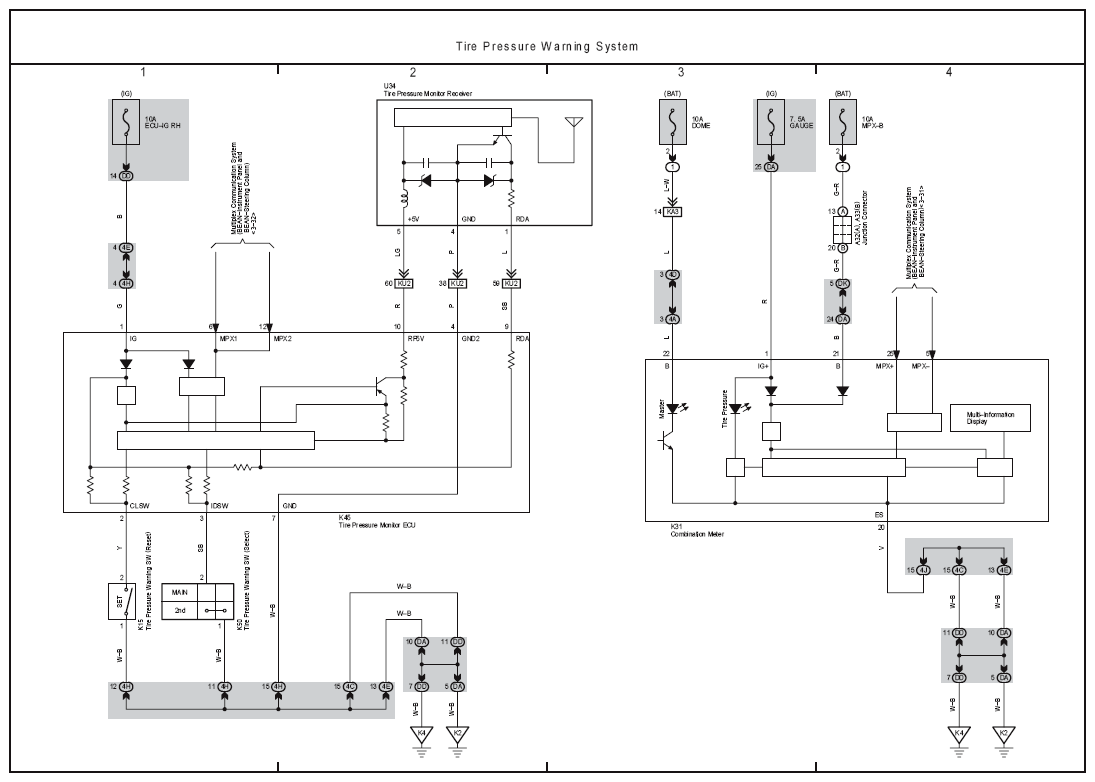

Fig 1: Tire Pressure Warning System Wiring Diagram

G08911236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
