Power Seat (Driver's Seat w/o Seat Position Memory)

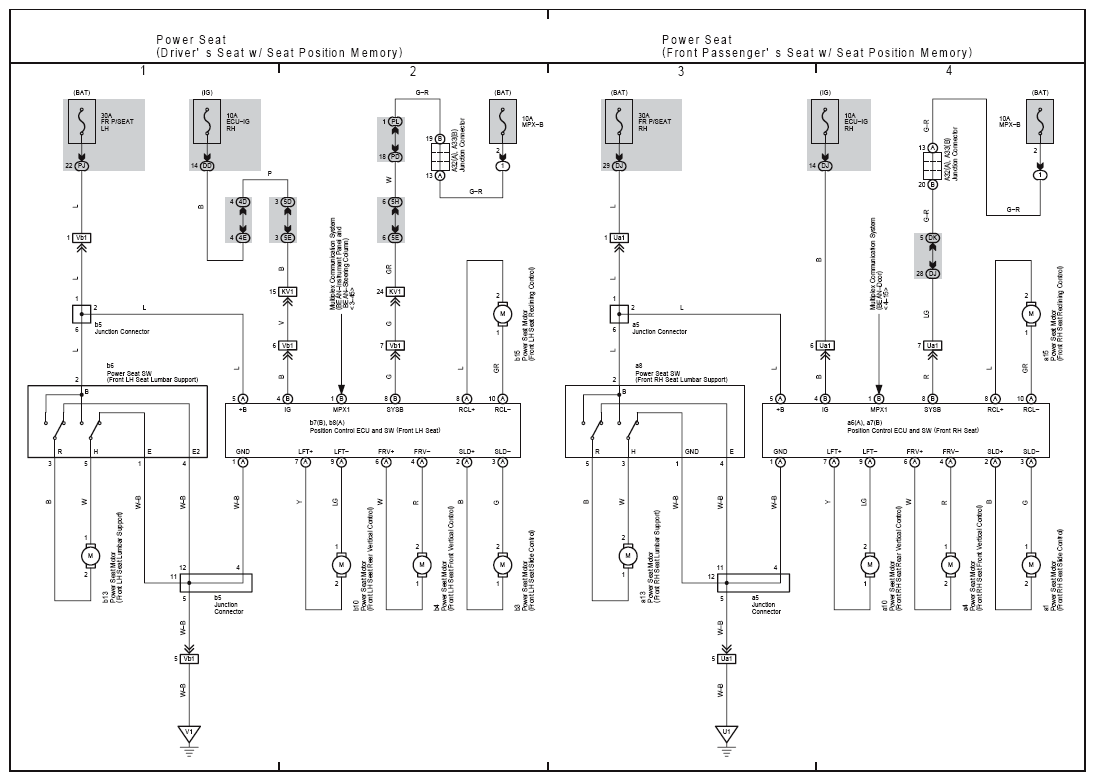

Fig 1: Power Seat Wiring Diagram
G08911251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

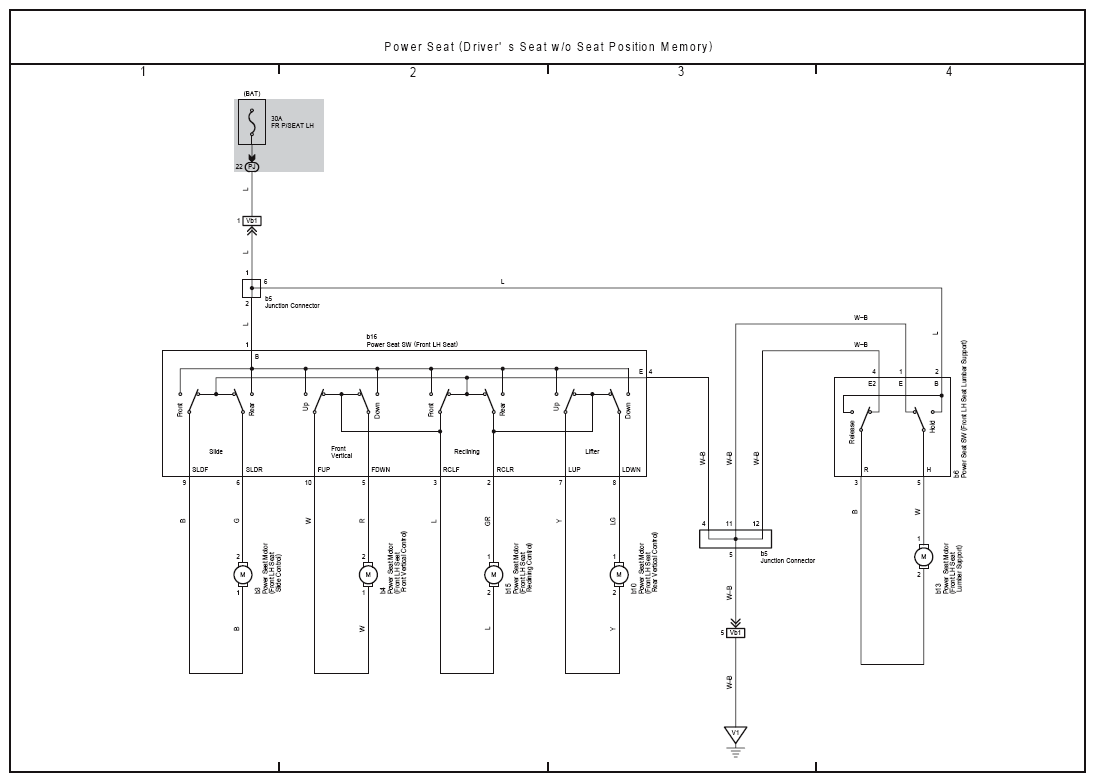

Fig 1: Power Seat (Driver's Seat W/O Seat Position Memory)
G08911252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
