Power Outlet, Electric Tension Reducer And Cigarette Lighter

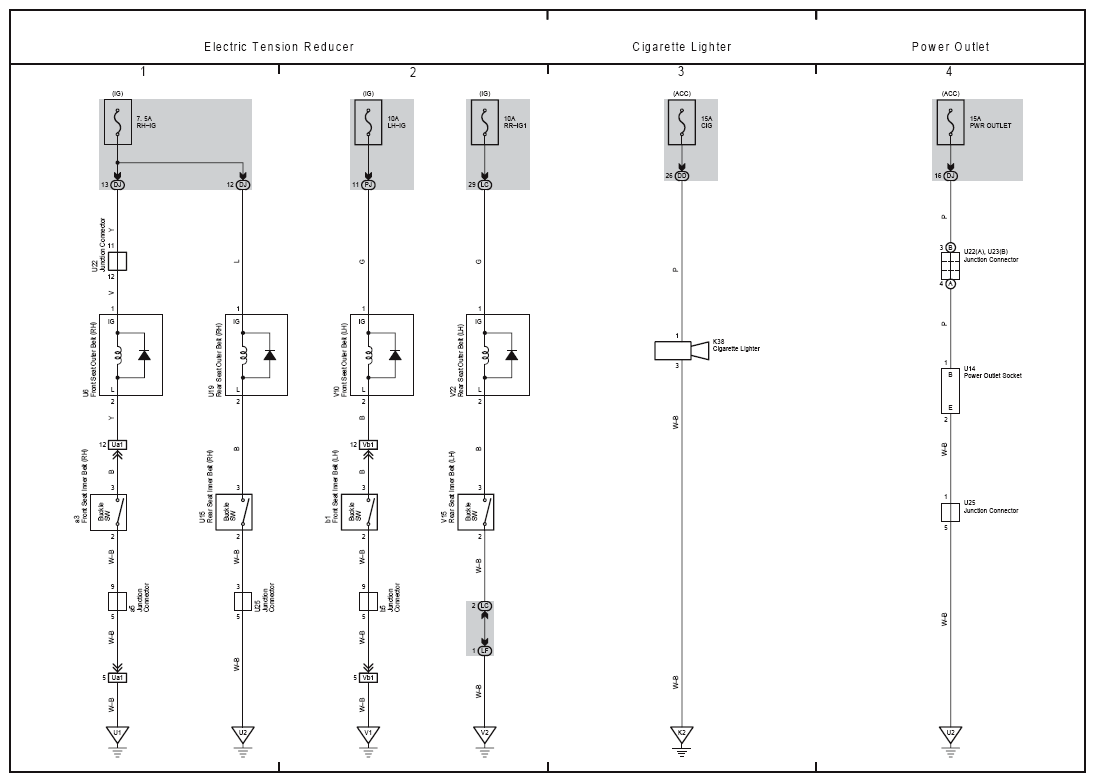

Fig 1: Power Outlet, Electric Tension Reducer And Cigarette Lighter Wiring Diagram

G08911250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
