Multiplex Communication System (BEAN-Door)

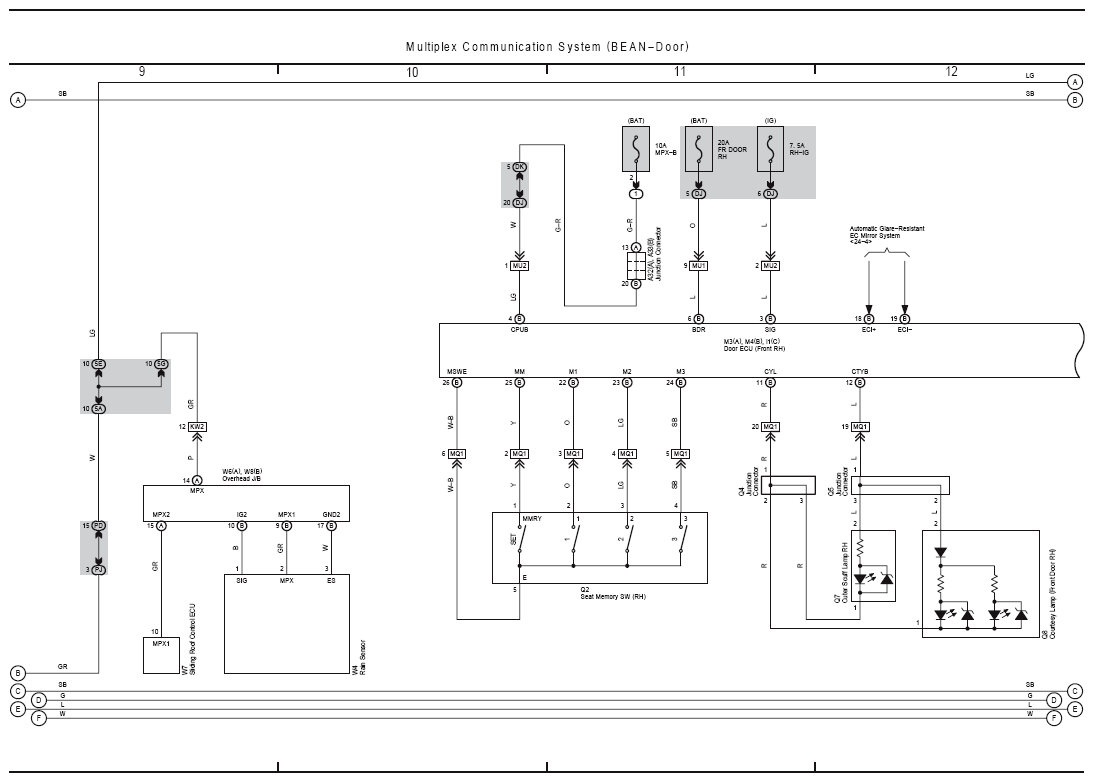

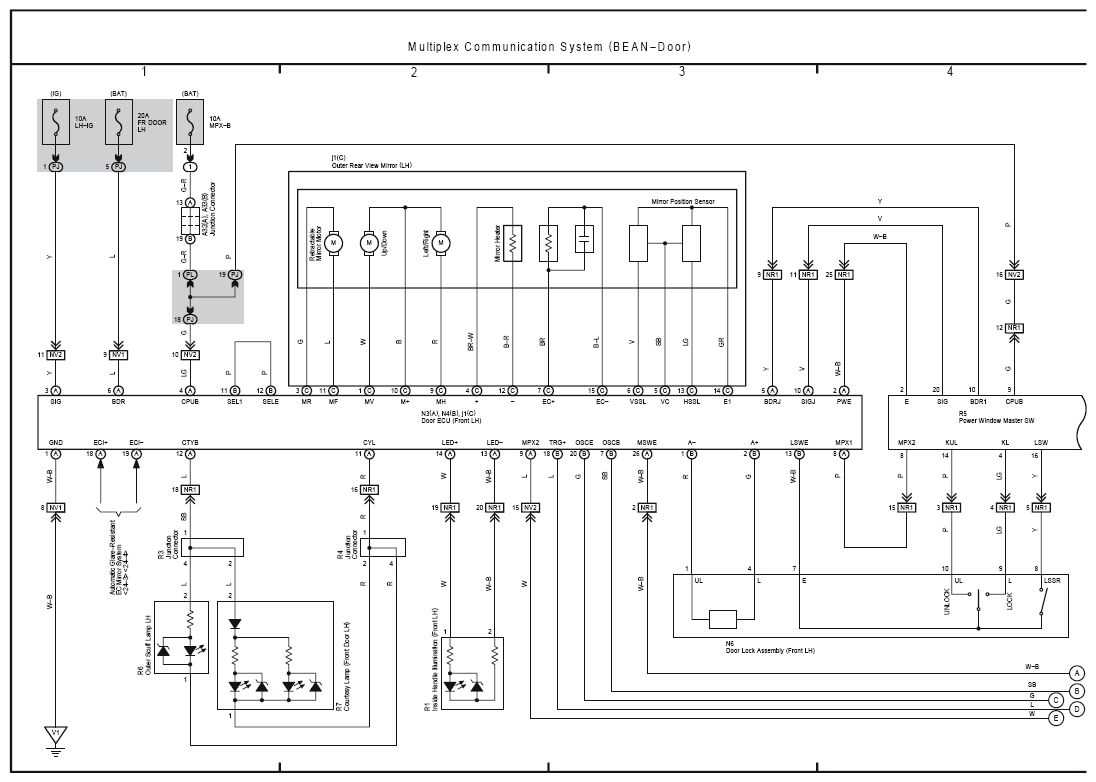

Fig 1: Multiplex Communication System (BEAN-Door) Wiring Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

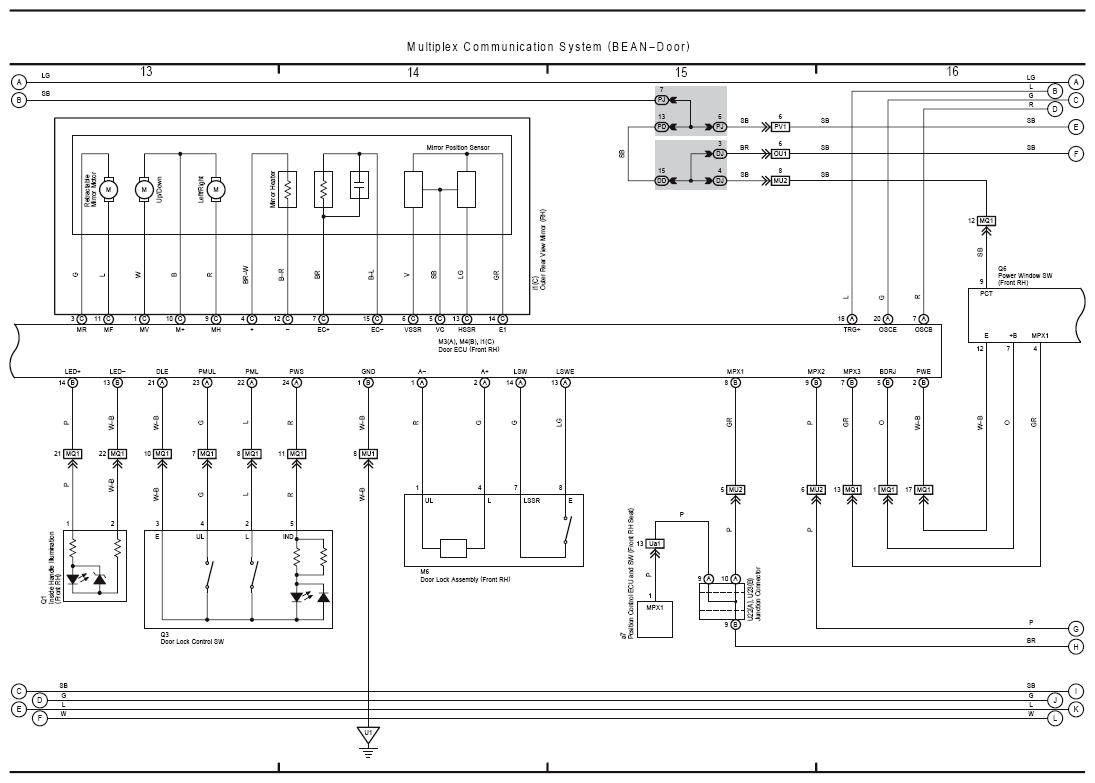

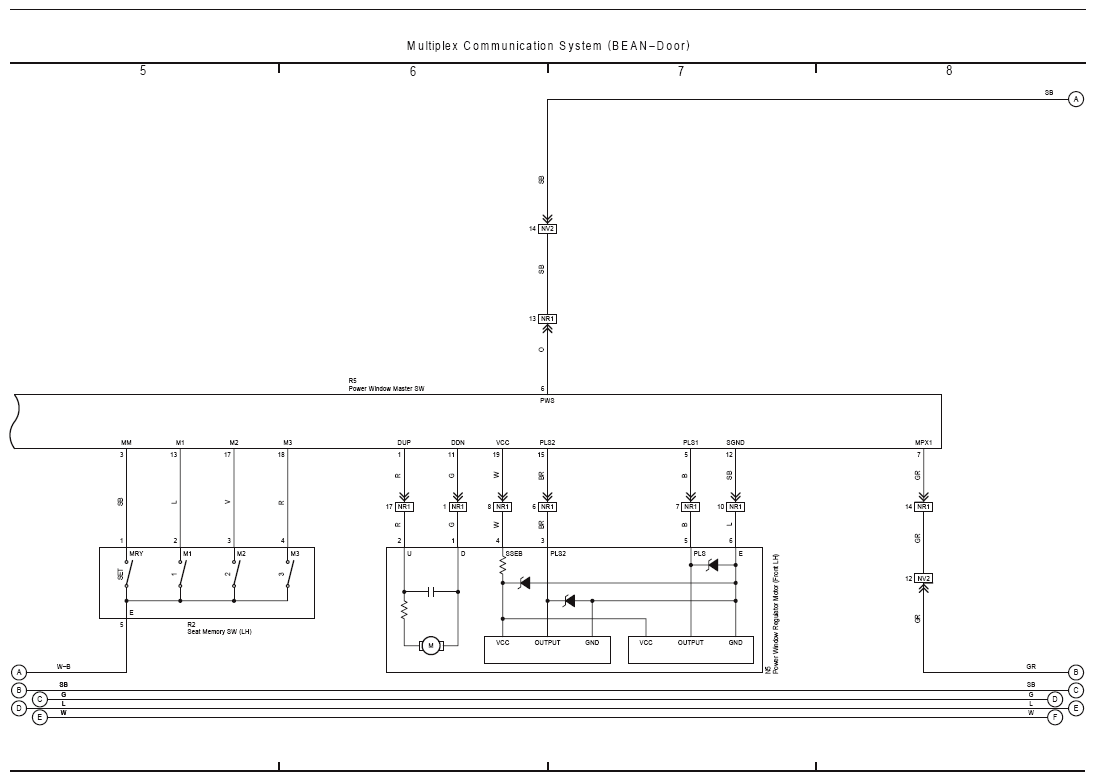

Fig 2: Multiplex Communication System (BEAN-Door) Wiring Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

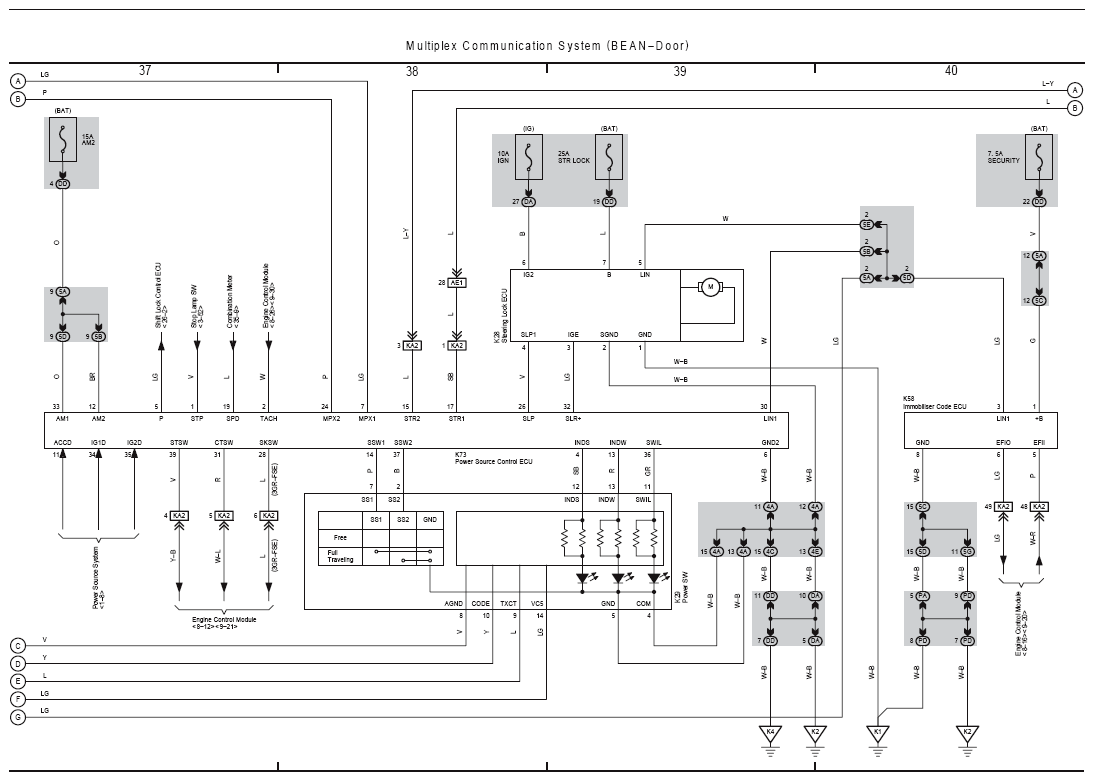

Fig 3: Multiplex Communication System (BEAN-Door) Wiring Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Multiplex Communication System (BEAN-Door) Wiring Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

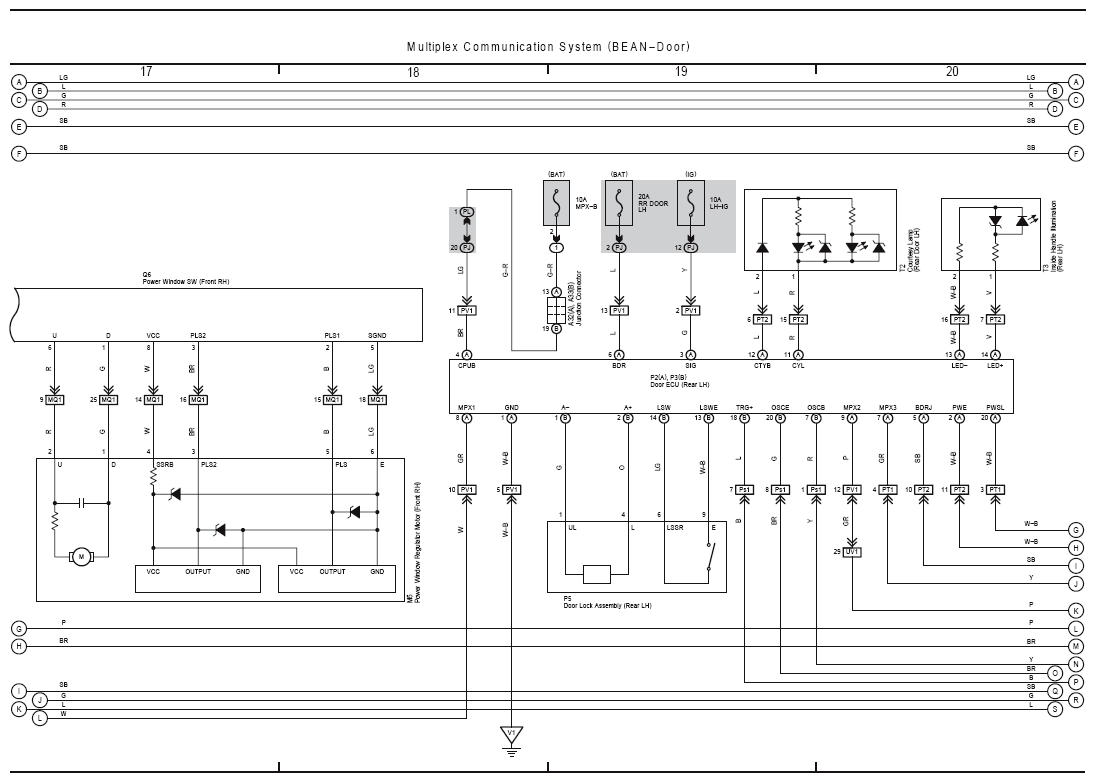

Fig 5: Multiplex Communication System (BEAN-Door) Wiring Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

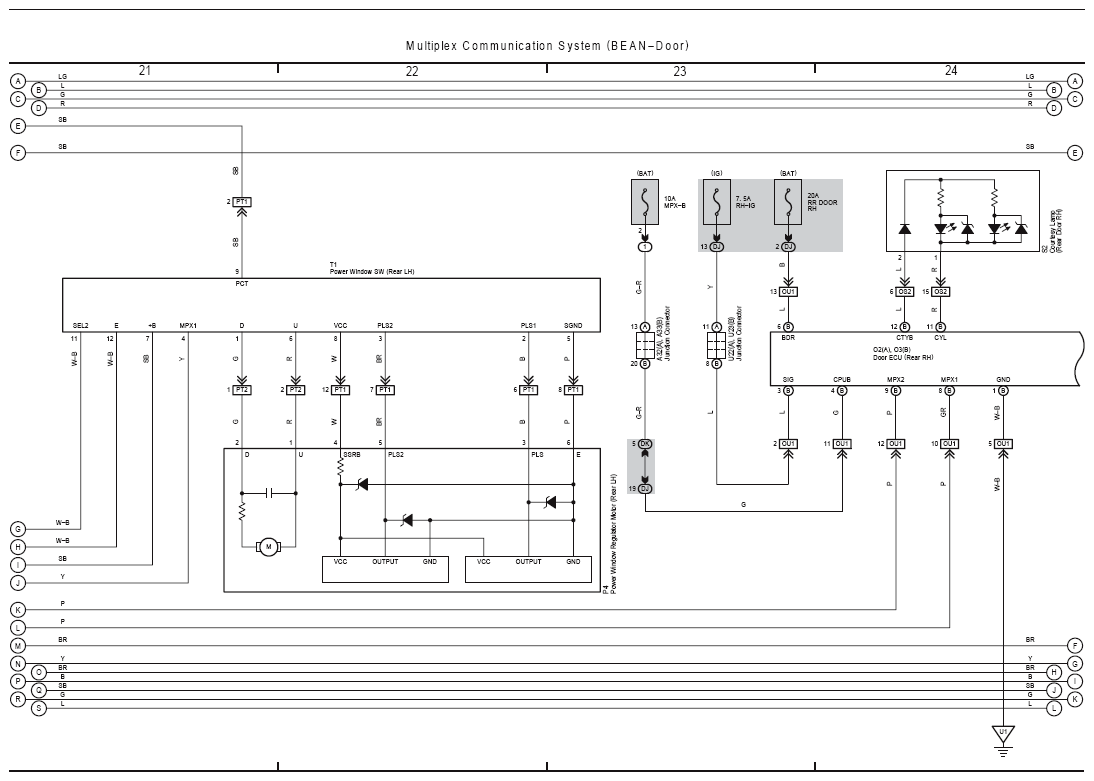

Fig 6: Multiplex Communication System (BEAN-Door) Wiring Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

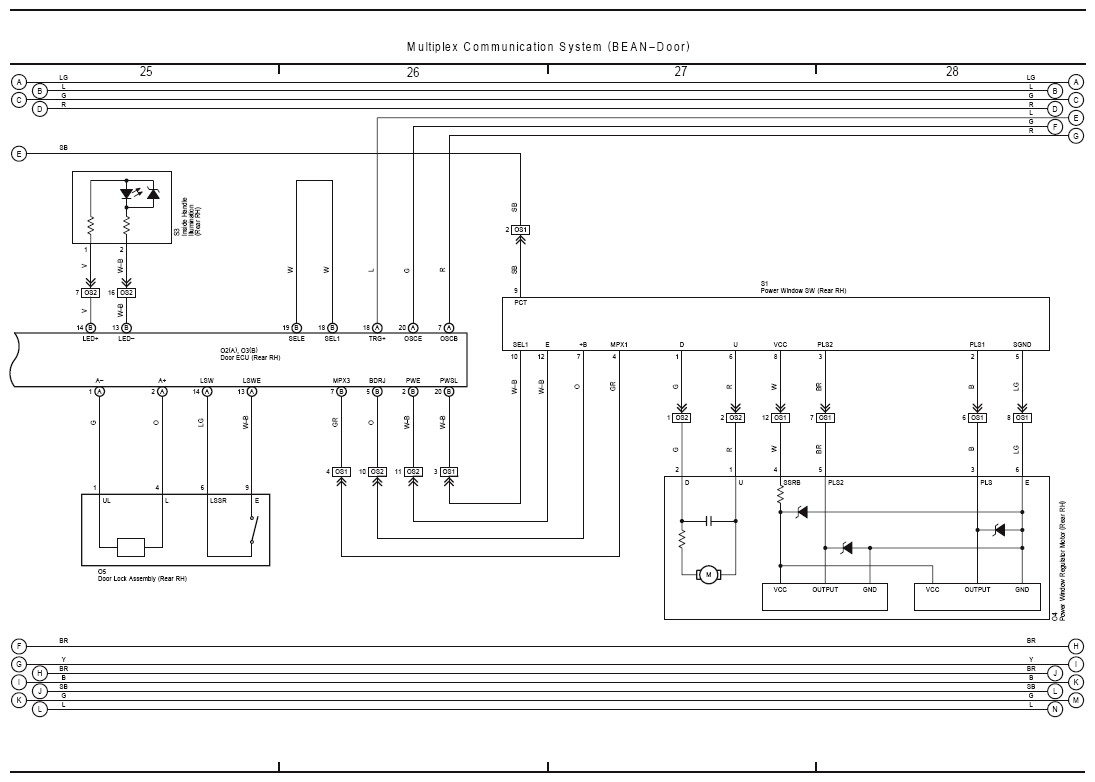

Fig 7: Multiplex Communication System (BEAN-Door) Wiring Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

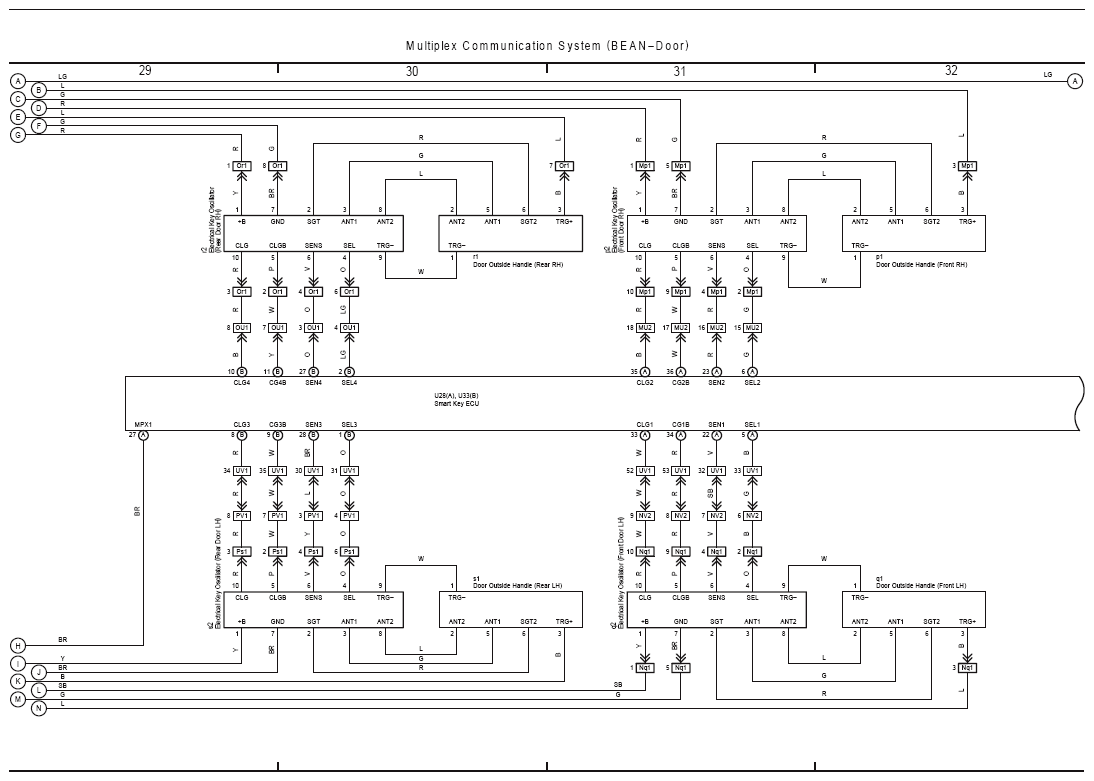

Fig 8: Multiplex Communication System (BEAN-Door) Wiring Diagram (8 Of 11)

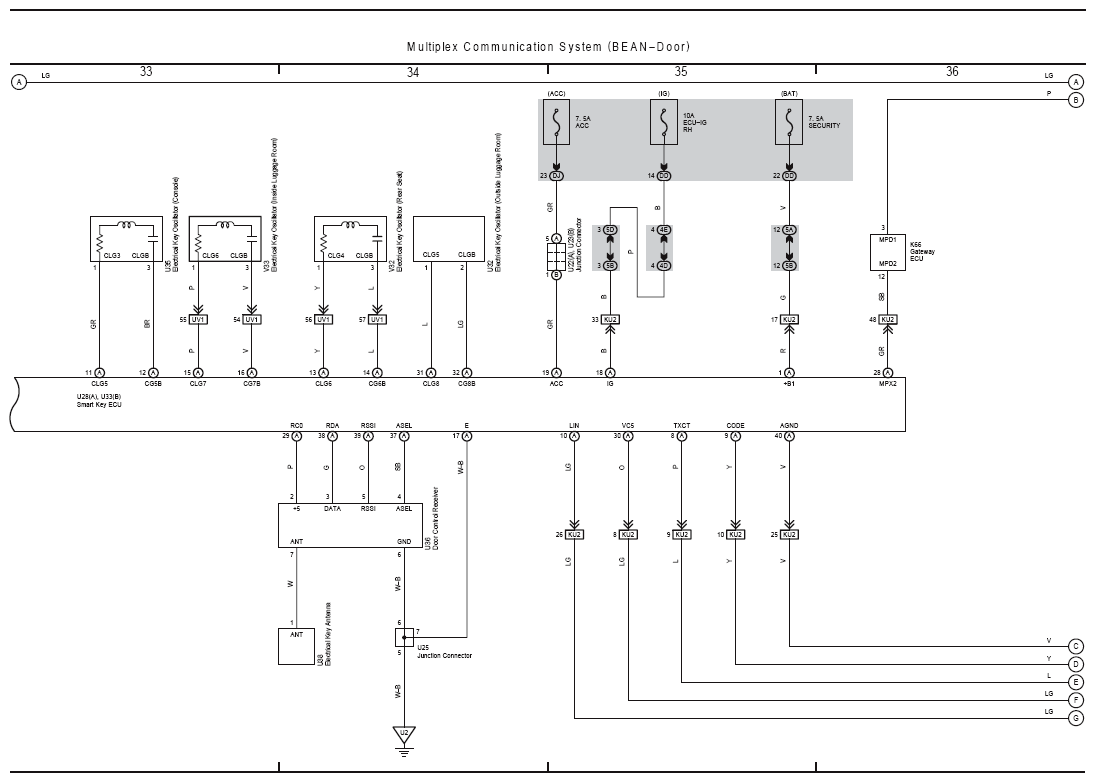

Fig 9: Multiplex Communication System (BEAN-Door) Wiring Diagram (9 Of 11)

Fig 10: Multiplex Communication System (BEAN-Door) Wiring Diagram (10 Of 11)

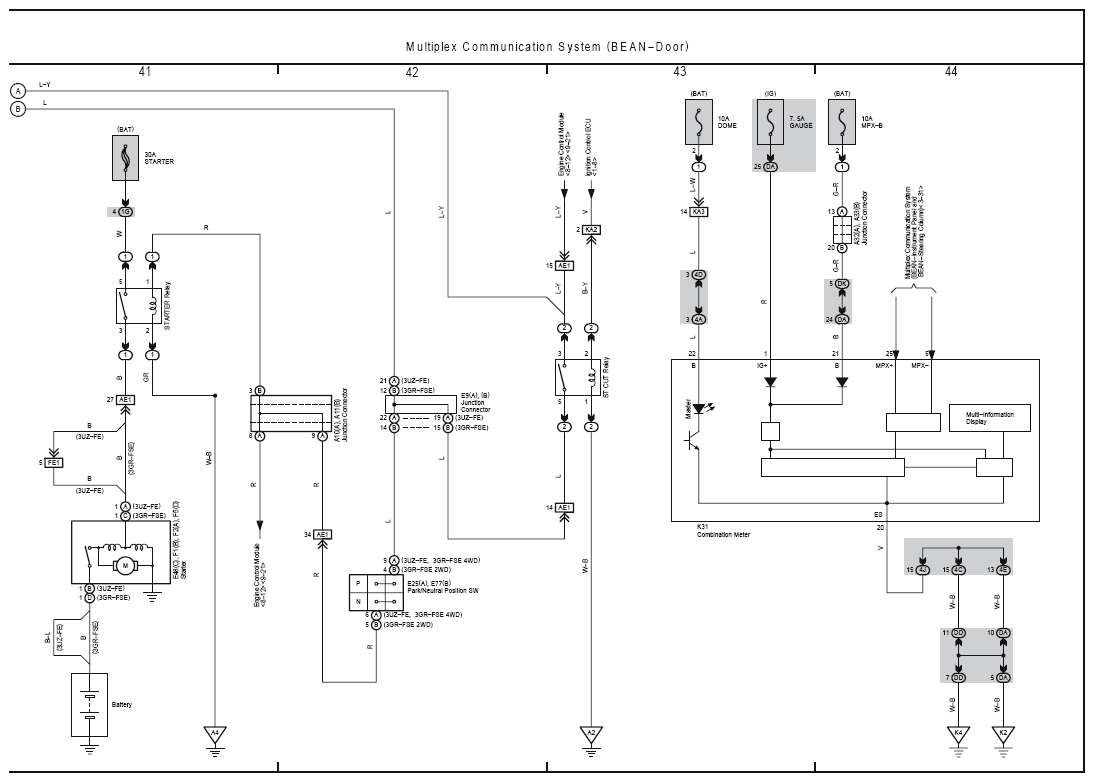

Fig 11: Multiplex Communication System (BEAN-Door) Wiring Diagram (11 Of 11)
