Multiplex Communication System (AVC-LAN)

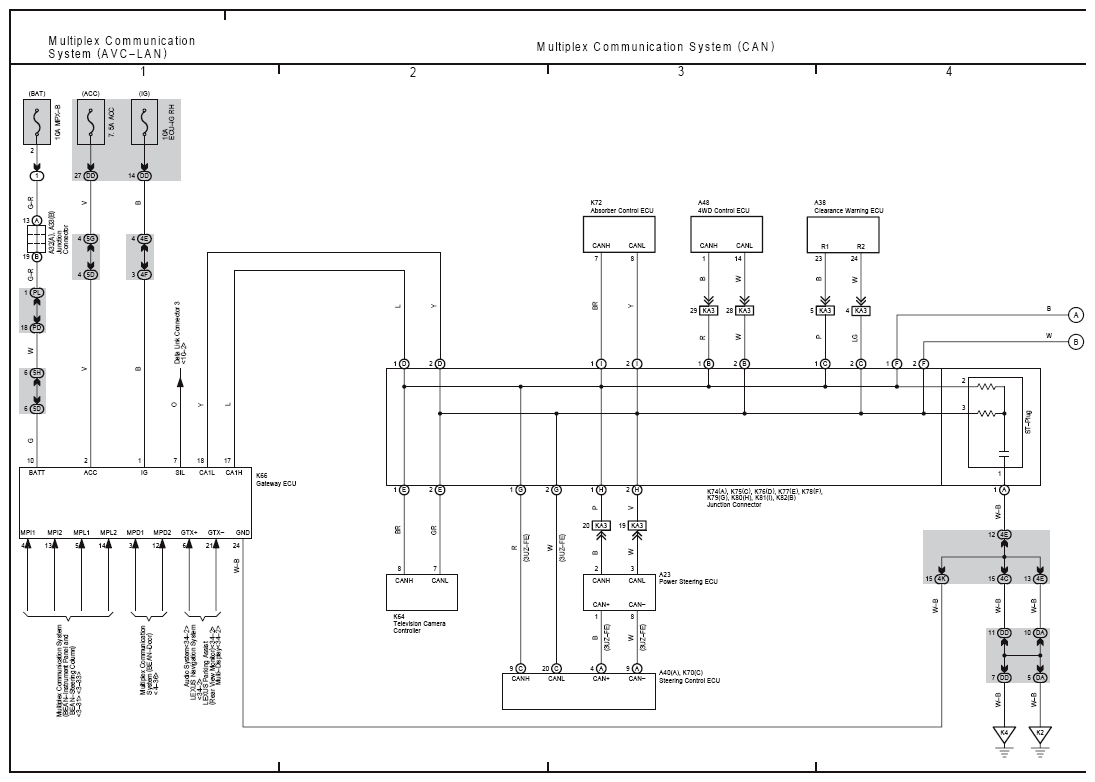

Fig 1: Multiplex Communication System Wiring Diagram (CAN; 1 Of 2)
G08911180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

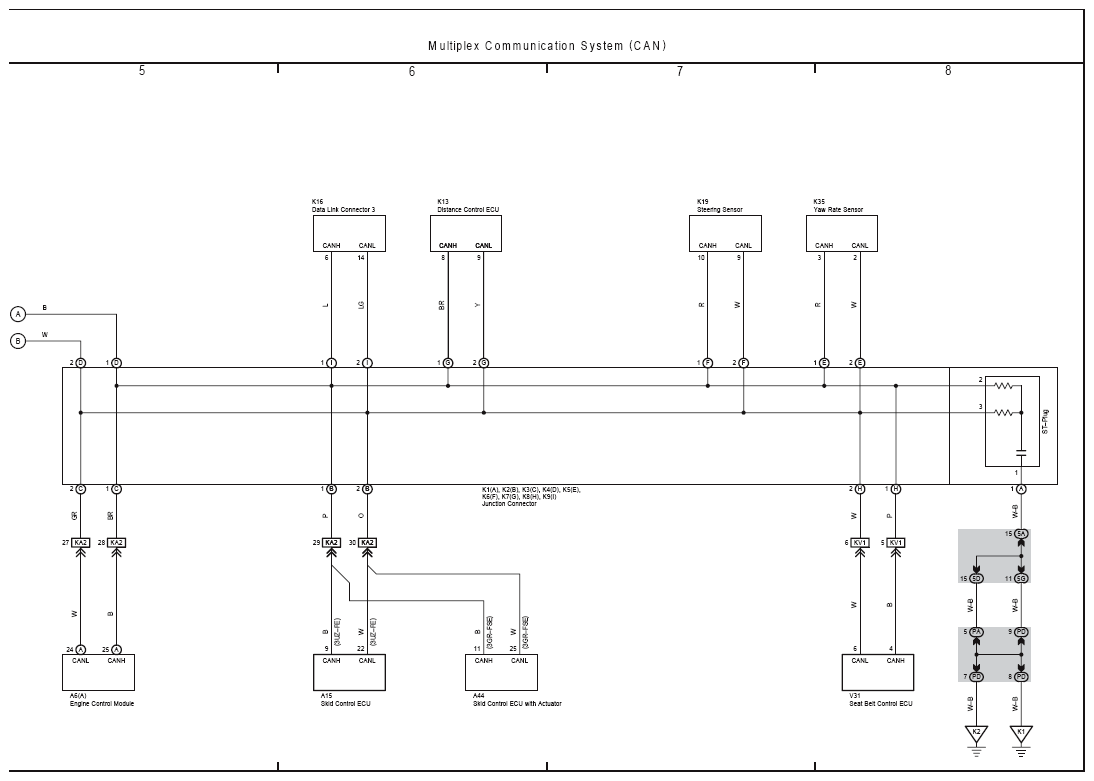

Fig 2: Multiplex Communication System Wiring Diagram (CAN; 1 Of 2)
G08911181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
