LEXUS Parking Assist (Clearance Sonar)

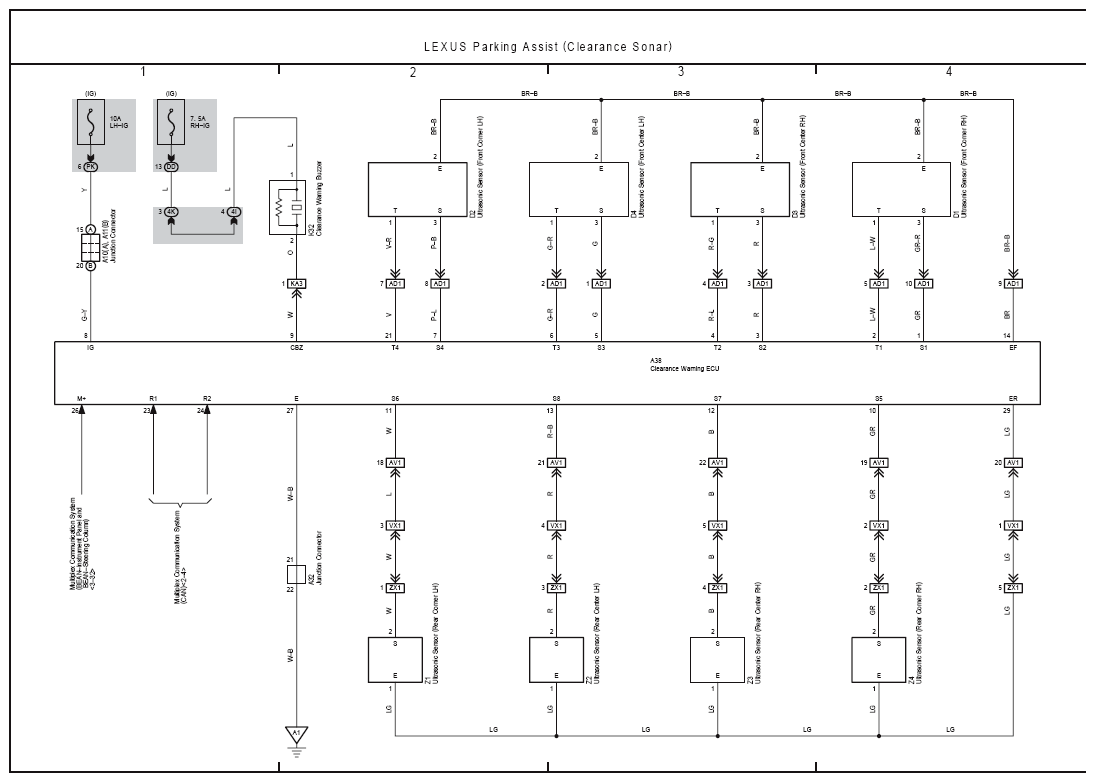

Fig 1: LEXUS Parking Assist (Clearance Sonar; 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

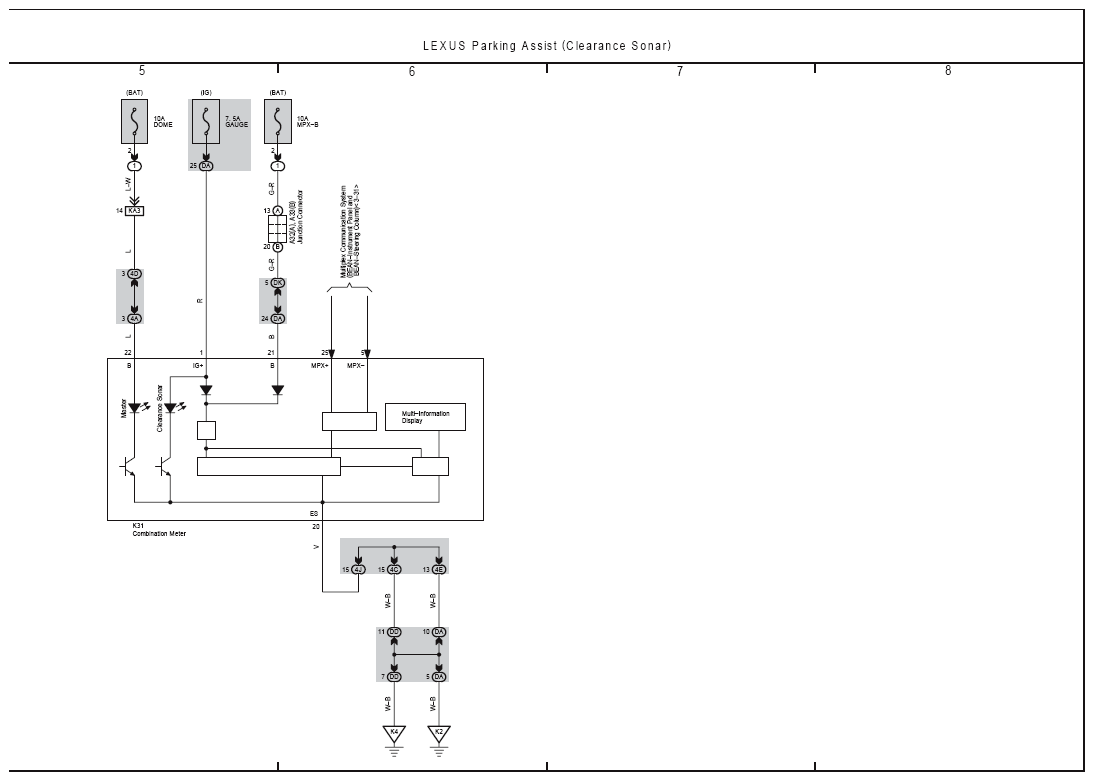

Fig 2: LEXUS Parking Assist (Clearance Sonar; 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
