Ignition (3UZ-FE)

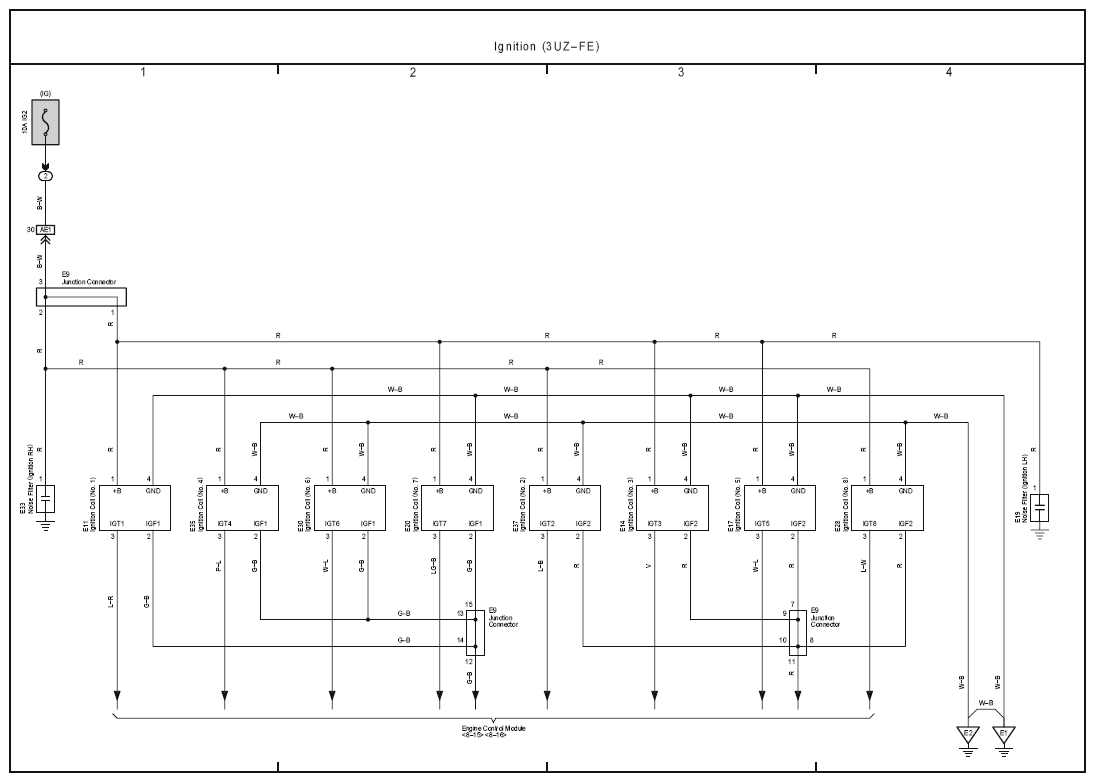

Fig 1: Ignition And Engine Control (3UZ-FE) Wiring Diagram

G08911207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
