Ignition (3GR-FSE)

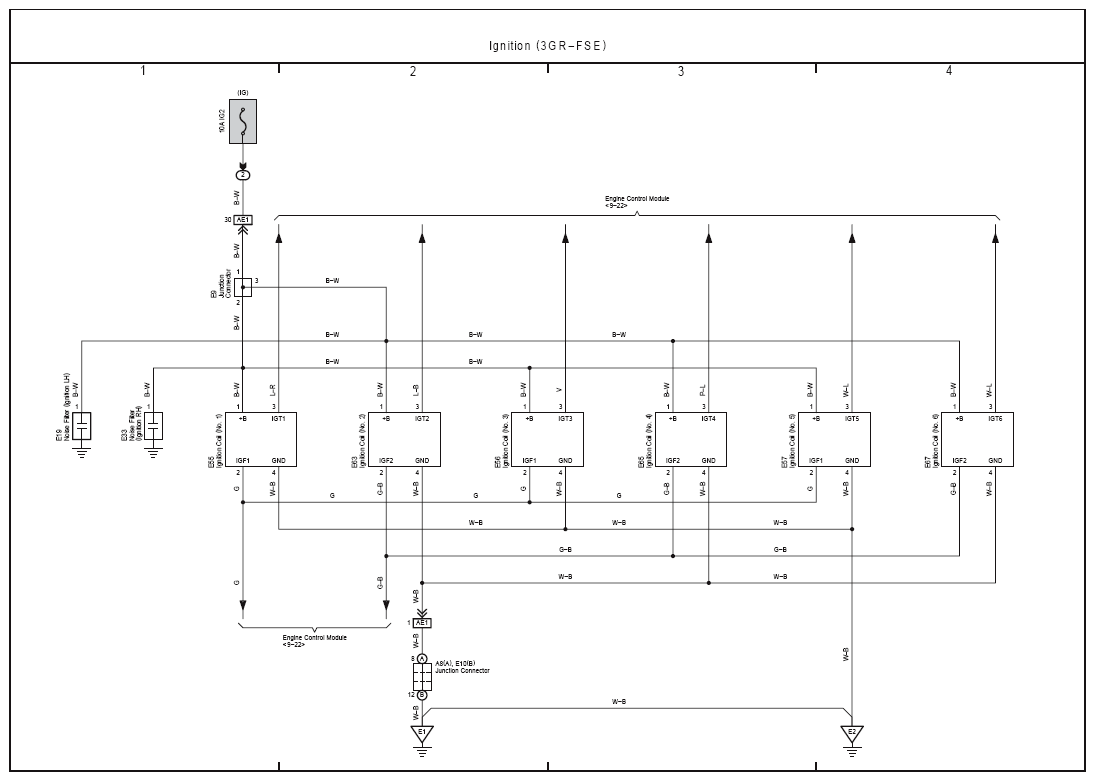

Fig 1: Ignition And Engine Control (3GR-FSE) Wiring Diagram

G08911208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
