How To Read This Section

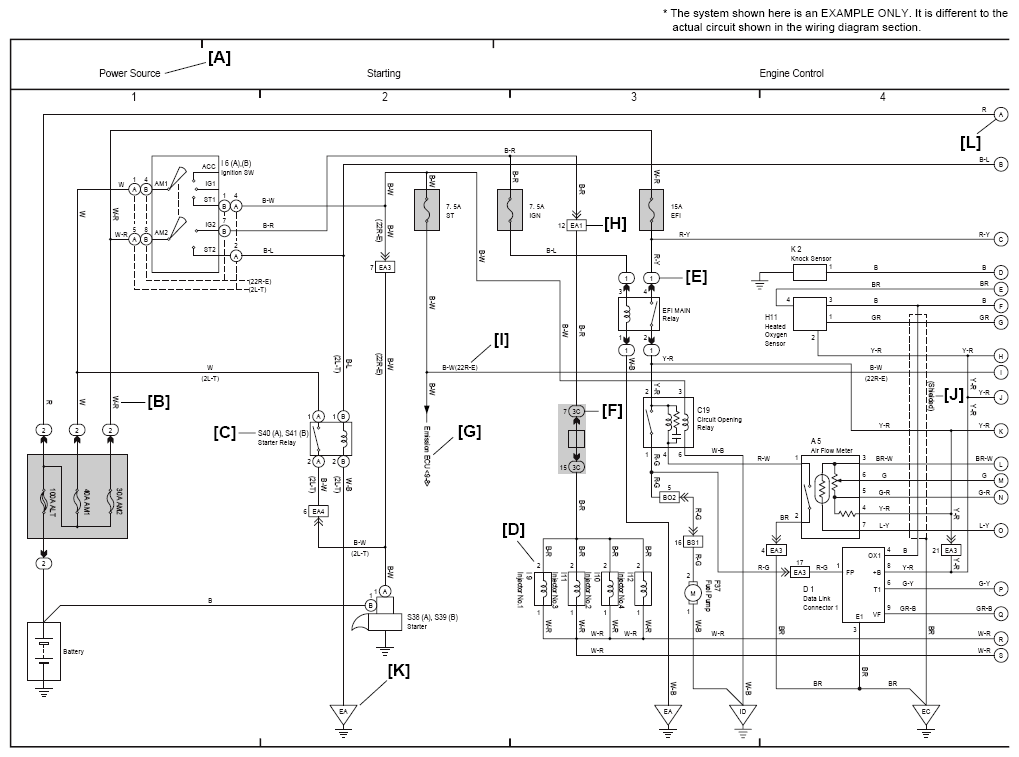

Fig 1: Electrical Wiring Diagram Example
G08911175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

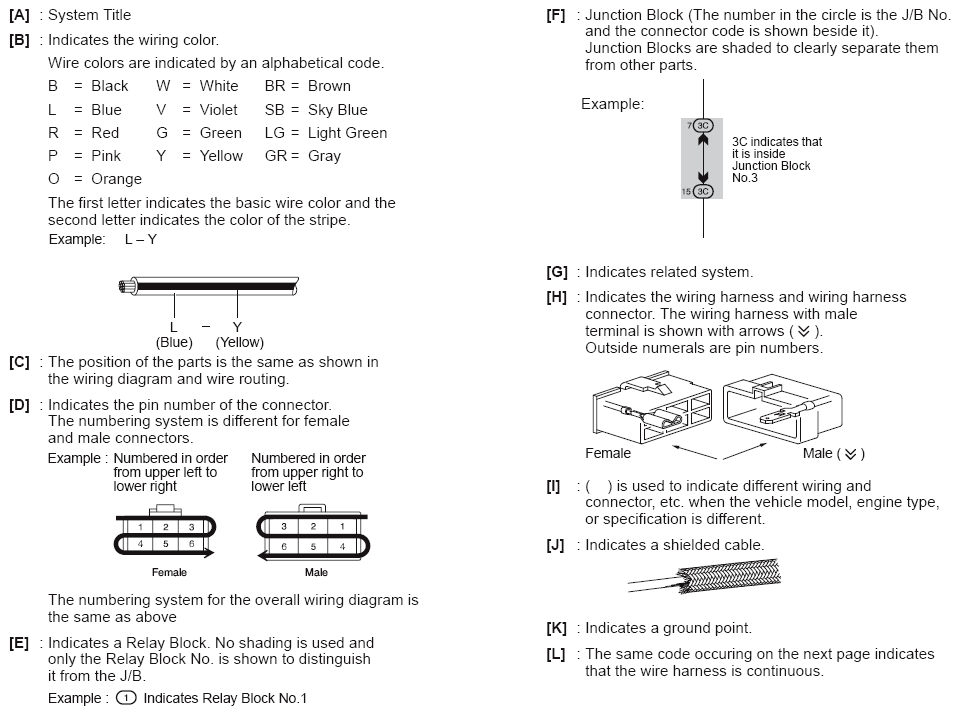

Fig 2: Electrical Wiring Diagram Example Legends
G08911176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
