Headlight Beam Level Control

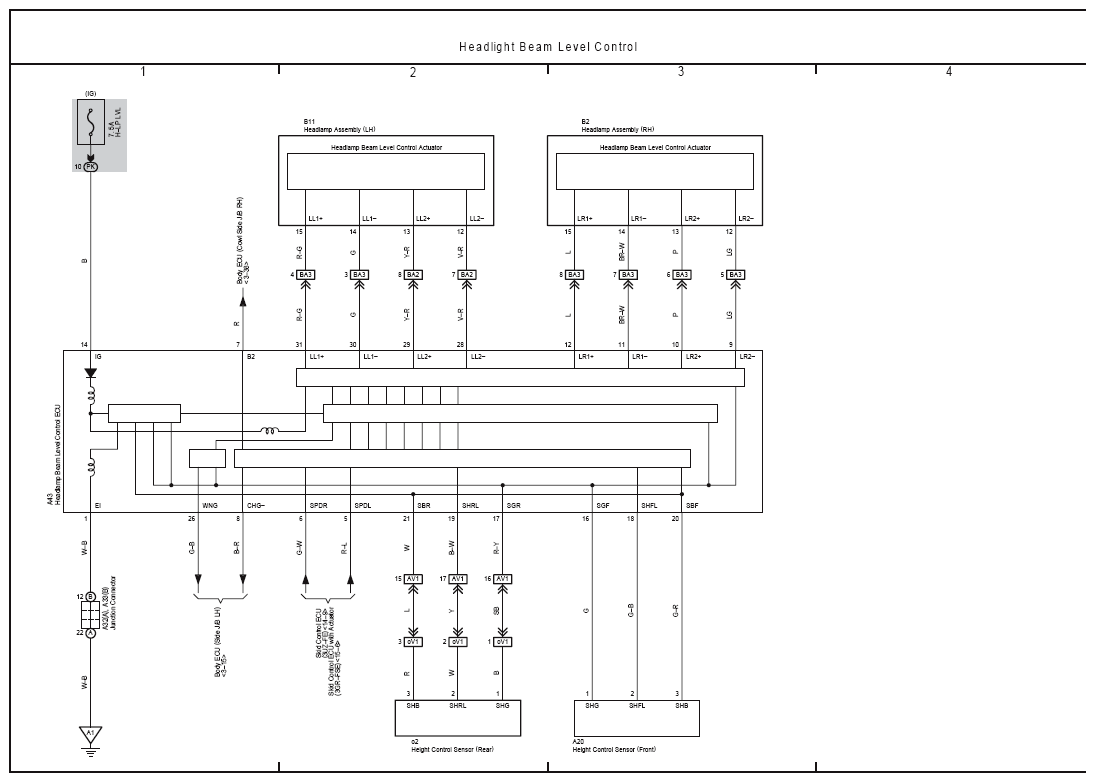

Fig 1: Headlight Beam Level Control Wiring Diagram (1 Of 2)
G08911244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

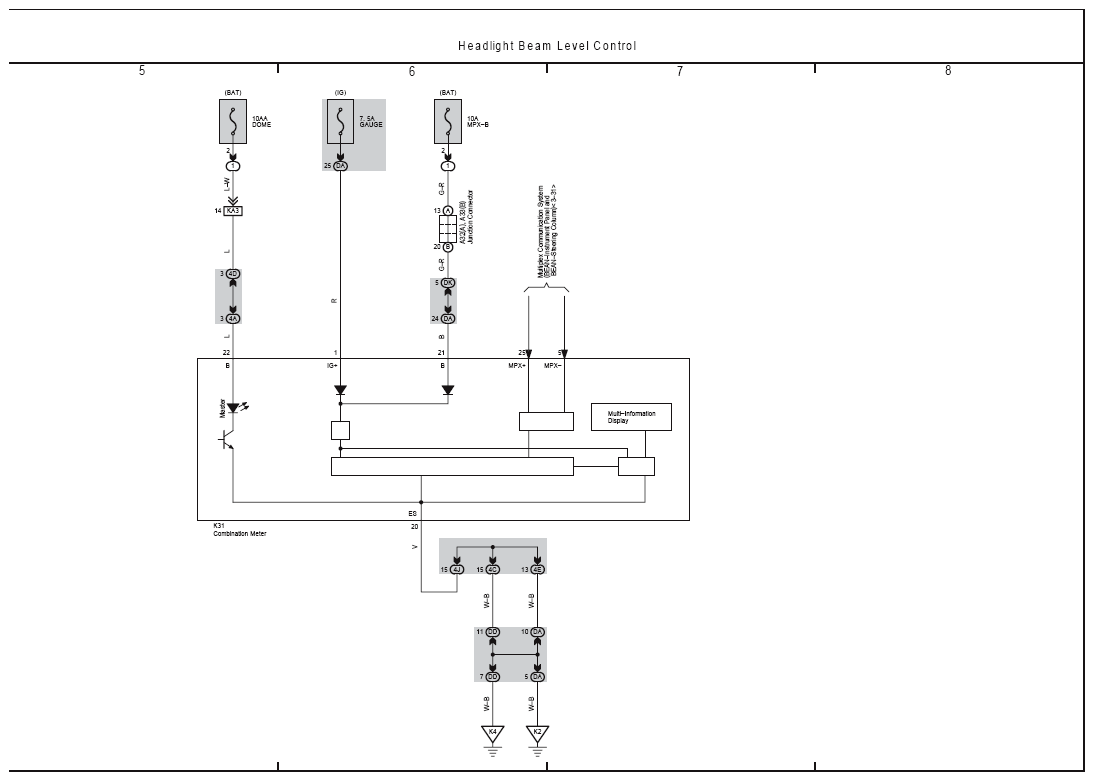

Fig 2: Headlight Beam Level Control Wiring Diagram (2 Of 2)
G08911245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
