Electronic Modulated Suspension

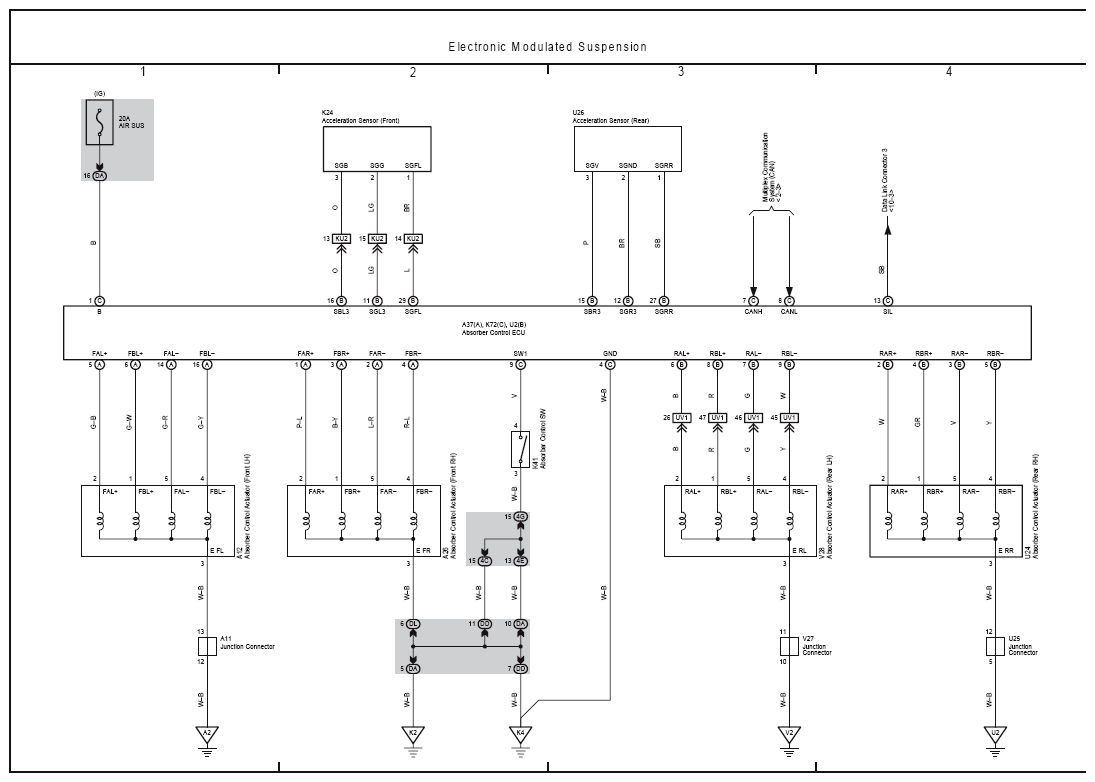

Fig 1: Electronic Modulated Suspension Wiring Diagram (1 Of 2)
G08911234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

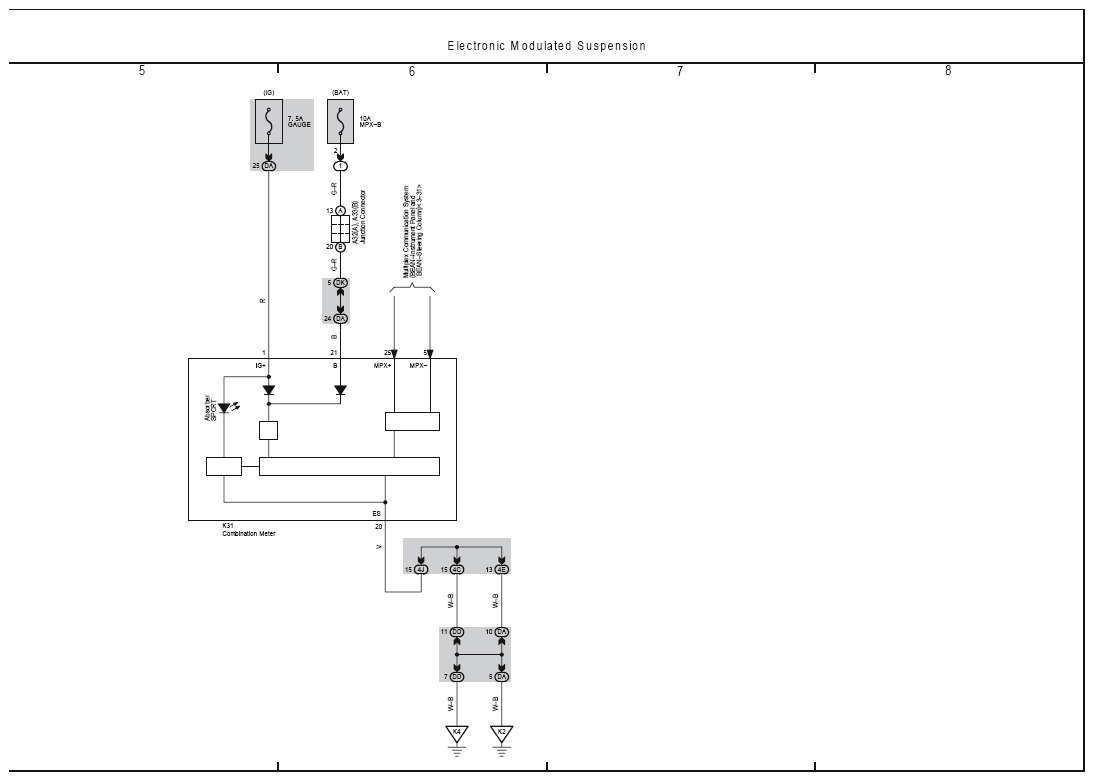

Fig 2: Electronic Modulated Suspension Wiring Diagram (2 Of 2)
G08911235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
